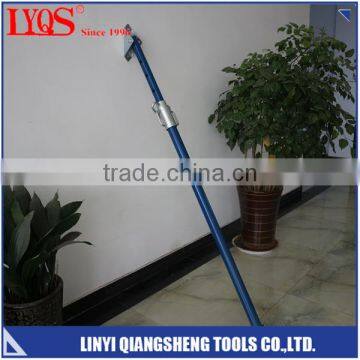

Inner threaded push pull prop.
The tube diameter is 56/48mm usually.
Outer threaded push pull prop.
The tube diameter is 60/48mm usually
PUSH AND PULL PROP SPECIFICATION
Material: Q235/Q345
Size: 1.7-3.0M; 2.0-3.5M; 2.2/4.0M or OEM size
Wall thickness: 1.8mm; 2.0mm; 2.5mm; 3.0mm;
3.2mm; 4.0mm
Plate: flower/square 120*120*5/ 150*150*6mm;Swivel Plate
Finihsed: Electro-galvanized; powder coated
Hot dipped galvanized
MOQ: 1*20ft container 1500pcs
LYQS- Scaffolding Acrow post shore
Easy to handle and easy to erect. Adjustments are made at standard working heights which eliminates the need for stooping or reaching. Available in a variety of sizes and allowable loads. Shoring heights range 1.0M-6.0M

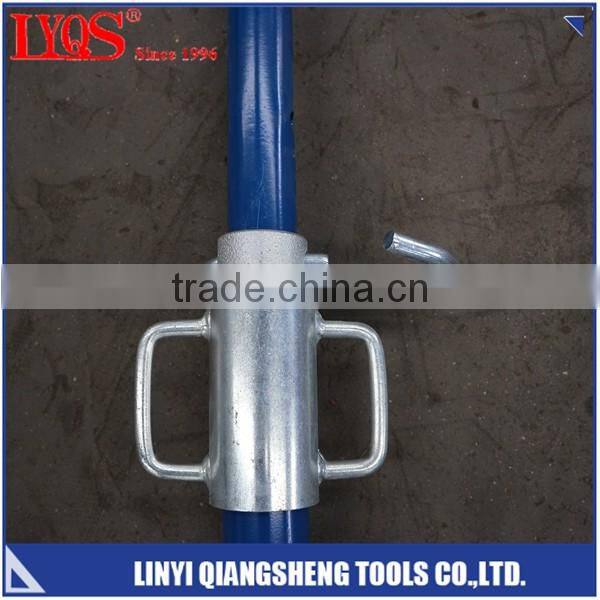

Adjust unit.
Inner threaded handle nut with a swivel sleeve
G-lock pin: Φ14mm

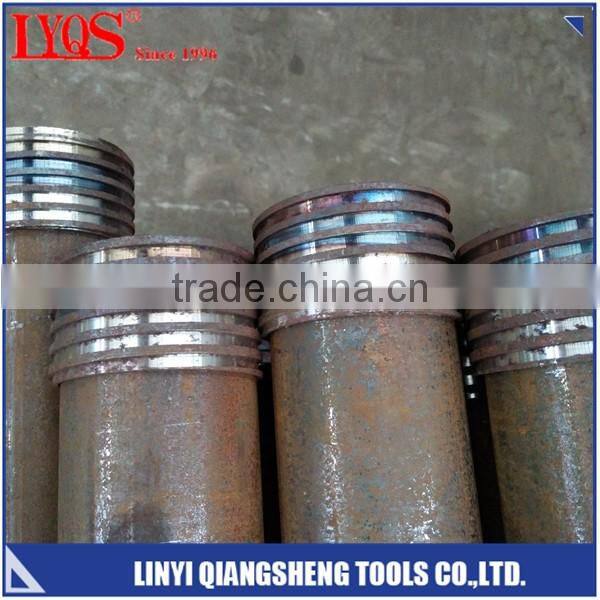

Threaded: 63*3.5*50mm

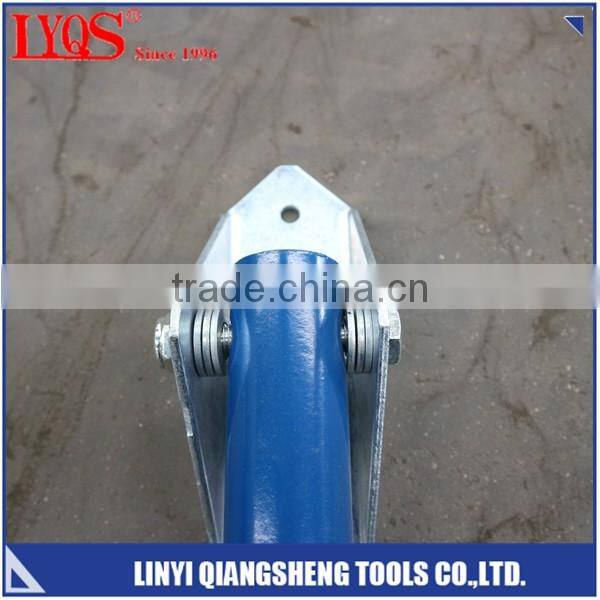

Swivel plate.
Connect to the inner and outer tube with a long svrew nut, that can swivel easily.
High quality welding.
We have experienced welding worker and auto welding machine to promise to high quality products.
Semi-auto welding machine
High welding quality
Cold rolled tube
Surface finish-sand blasting
Surface finish-Powder coated
Surface finihse-Galvanized
WHY LYQS?
1 . PROFESSIONAL
LYQS was founded in 1996 , has almost 20 years experience for scaffoldings .
“High quality , reasonable price , best service ” is always our working principle .
2 . THE INDUSTRY STANDAR
LYQS work as Layher standard or others international standards to keep the high quality.
3 . MADE IN CHINA
All LYQS products are engineered and manufactured in China to the highest and most up-to-date specifications.
4 . DIRECT MANUFACTURER
In an industry full of imitators, LYQS is a true, proven and established direct manufacturer.
5 . PARTNERSHIPS
A spirit of partnership that goes well beyond conventional supplier relationships.and our products export to over 30 countries worldwide . also we have big warehouse in North America and Austrial!
Linyi Qiangsheng Tools Co.,Ltd. is a large producer and leading industry innovator of high quality , integrated ,modular scaffolding systems. As an experienced manufacturer of scaffolding systems, LYQS has continued to pace the industry with product development and engineering advances for more than 20 years.
LYQS products and innovations in scaffolding technology have comeb to define quality, performance, efficiency, safety and product innovation in modern scaffolding.
The wide range of LYQS scaffolding products, their design engineered cross system compatibility, ease of assembly and disassemble coupled with the highest manufacturing and materials standards means simply that LYQS’s steel scaffolding is among the most reliabl and safest on the market . LYQS scaffolding systems are precision manufactured to the most
exacting standards in the industry.
Main Products
(1).Scaffolding products (Ringlock/Cuplock/Frame/Kwikstage )
Including:Ring lock system scaffolding and accessories; Cup lock system scaffolding and accessories; Kwikstage system scaffolding and accessories;
(2). Scaffolding Couplers/Clamps/Fasten
We can manufacture all kinds of couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
(3). Frames Scaffolding
Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.
(4). Shoring Props
Quality shoring props of different specifications can be manufactured in our factory.Heavy duty prop , light duty prop , medium duty and high duty.
(5). Steel Planks/ Toe Board
Both aluminum and steel planks can be manufactured in our factory.
(6).Formwork accessories
We can also manufacture fences, ladders, steel trays and other related products that are needed in the erection of scaffolding.
(7)Wrench and Spanner
Including： Adjustable wrench,Geartech wrench,Surfale ratchet,Heavy duty Ratchet wrench．
