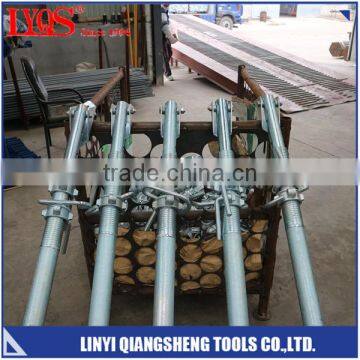

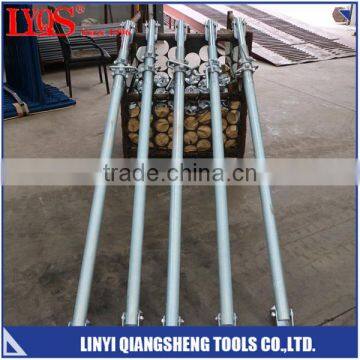

Help CenterSteel Scaffolding Adjustable Push and Pull Prop for Formwork
Related Products
-
1.7-3.0m Galvanized Steel Push Pull Diagonal Prop for SaleUS$ 12.8 - 13.5MOQ: 500 Sets -
Galvanized Silver Concrete Construction Shoring Post Steel PropUS$ 5 - 8MOQ: 1 Piece
-
Zinc Plated Adjustable Post Shoring Prop Acrow Steel Formwork PropUS$ 5 - 8MOQ: 1 Piece
-
Shoring Scaffold Heavy Duty Steel Adjustable Post ShoresUS$ 5 - 8MOQ: 1 Piece
-
Vertical Shores Adjustable Shoring Steel Prop Scaffold Post ShoresUS$ 5 - 8MOQ: 1 Piece
HEAVY DUTY PROP
LIGHT DUTY PROP

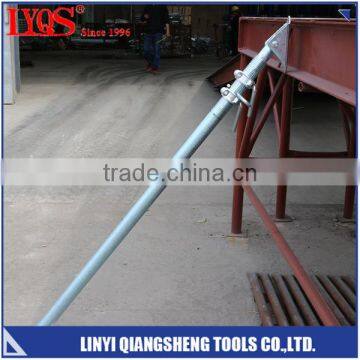

PUSH-PULL PROP
PUSH AND PULL PROP SPECIFICATION
Material: Q235/Q345
Size: 1.7-3.0M; 2.0-3.5M; 2.2/4.0M or OEM size
Wall thickness: 1.8mm; 2.0mm; 2.5mm; 3.0mm;
3.2mm; 4.0mm
Plate: flower/square 120*120*5/ 150*150*6mm;Swivel Plate
Finihsed: Electro-galvanized; powder coated
Hot dipped galvanized
MOQ: 1*20ft container 1500pcs
LYQS- Scaffolding Acrow post shore
Easy to handle and easy to erect. Adjustments are made at standard working heights which eliminates the need for stooping or reaching. Available in a variety of sizes and allowable loads. Shoring heights range 1.0M-6.0M

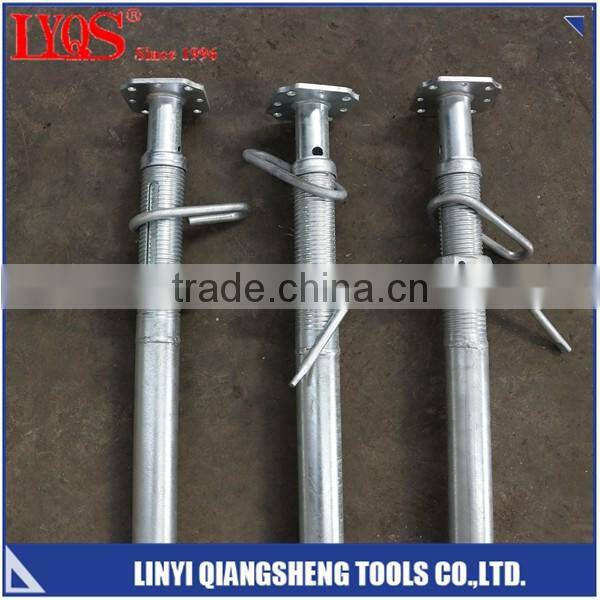

Adjust unit.
Double nuts used for the push and pull prop only;
G-lock pin: Φ14mm
Threaded: 60*3.5*300mm
Swivel plate.
Connect to the inner and outer tube with a long svrew nut, that can swivel easily.
High quality welding.
We have experienced welding worker and auto welding machine to promise to high quality products.
Assembleing.
Screw the two swivel plate
Insert inner tube to the outer
Screw tthe handle nut.

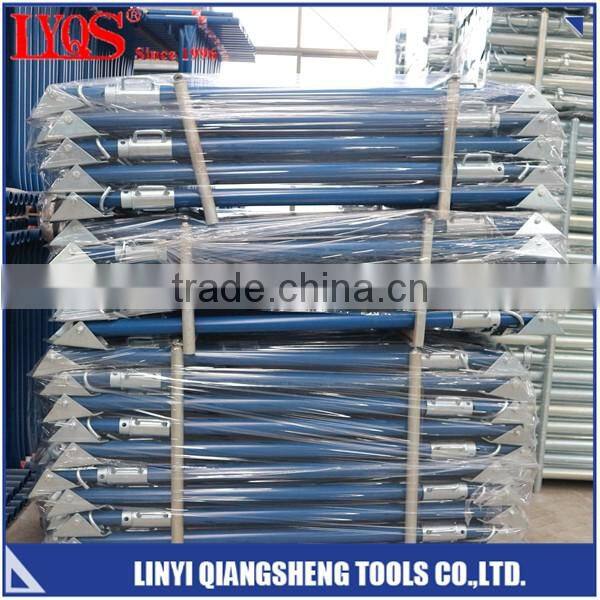

Package.
Generally we use the simple steel pallet as the package.
50/100pcs per pallet
For the 1.7-3.0m push and pull prop, 1*20ft container loads 1500pcs.
Linyi Qiangsheng Tools Co.,Ltd. is a large producer and leading industry innovator of high quality , integrated ,modular scaffolding systems. As an experienced manufacturer of scaffolding systems, LYQS has continued to pace the industry with product development and engineering advances for more than 20 years.
LYQS products and innovations in scaffolding technology have comeb to define quality, performance, efficiency, safety and product innovation in modern scaffolding.
The wide range of LYQS scaffolding products, their design engineered cross system compatibility, ease of assembly and disassemble coupled with the highest manufacturing and materials standards means simply that LYQS’s steel scaffolding is among the most reliabl and safest on the market . LYQS scaffolding systems are precision manufactured to the most
exacting standards in the industry.
Main Products
(1).Scaffolding products (Ringlock/Cuplock/Frame/Kwikstage )
Including:Ring lock system scaffolding and accessories; Cup lock system scaffolding and accessories; Kwikstage system scaffolding and accessories;
(2). Scaffolding Couplers/Clamps/Fasten
We can manufacture all kinds of couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
(3). Frames Scaffolding
Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.
(4). Shoring Props
Quality shoring props of different specifications can be manufactured in our factory.Heavy duty prop , light duty prop , medium duty and high duty.
(5). Steel Planks/ Toe Board
Both aluminum and steel planks can be manufactured in our factory.
(6).Formwork accessories
We can also manufacture fences, ladders, steel trays and other related products that are needed in the erection of scaffolding.
(7)Wrench and Spanner
Including： Adjustable wrench,Geartech wrench,Surfale ratchet,Heavy duty Ratchet wrench．
