Place of Origin Zhejiang, China
Brand Name OEM
Model Number DG1001
Output Type AC Three Phase
Speed 3000
Frequency 50
Rated Voltage 115/230
Rated Current 39.1/19.6

Diesel Generators





Description:

Item NO:DG1001



Rated frequency (Hz)

50

Rated output (kVA)

4.5

Max. output (kVA)

5.0

Rated Voltage (V)

115/230

Rated current (A)

39.1/19.6

Rated rotation speed (r/min)

3000

Power factor (Cos Φ )

1.0

Insulation Grade

B

Pole number

2

Excitation mode

Self-excitation & constant voltage (AVR)

Panel Type

General Panel

Receptacle

Two receptacles

Connection pole

Without

Overall dimension(L× W× H)(mm)

910X530X740

Dry weight(kg)

158

Working assorting weight (Kg)

174

Noise level(7m)dB(A)

72

Engine Type

Single cylinder, vertical, four-stroke, direct injection

Cylinder NO. -bore× stroke (mm)

1-86× 72

Displacement (ml)

418

Rated power [KW/(r/min)]

5.7/3000

Combustion system

Direct injection

Lubrication system

Pressure splashed

Starting system

Electric starter

Fuel type

0#(summer)-10#(winter)-35#(chillness)diesel

Lube oil brand

CD grade or SAE10W-30, 15W-40

Lube capacity (L)

1.65

Starting motor capacity (V-kW)

12V 0.8kW

Charging generator capacity (V-A)

12V 3A

Battery capacity (V-Ah)

12V 36Ah

Fuel consumption (g/kW. h)

≤ 360

Fuel tank capacity (L)

15

Continuous running time (hr)

6

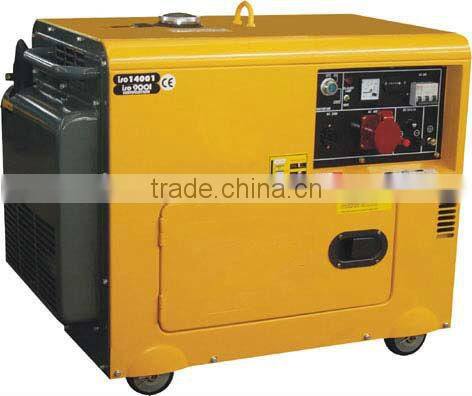

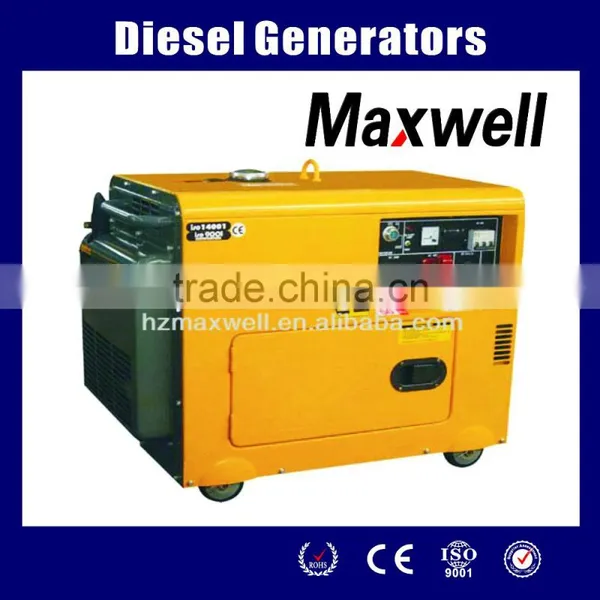

Product Picture

Diesel Generators
