Home > Manufacturing & Processing Machinery > Lifting Equipment > Winch > 12v Electric Boat Winch

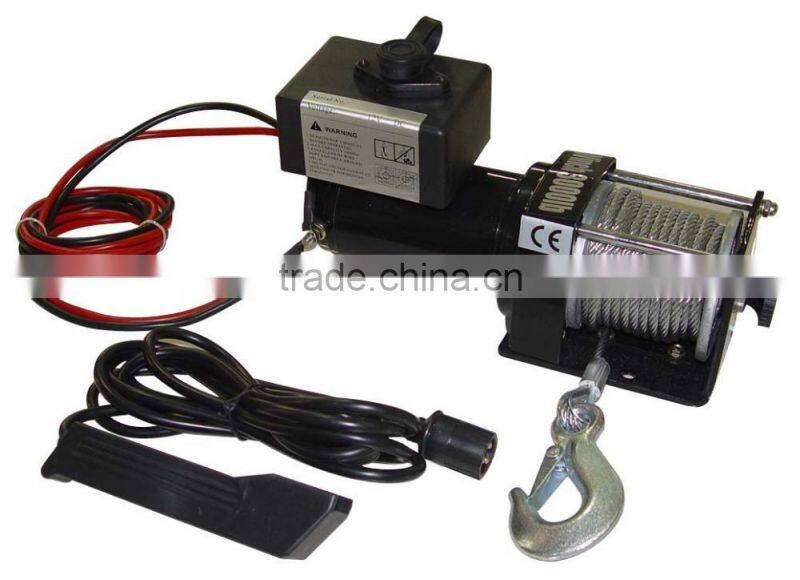

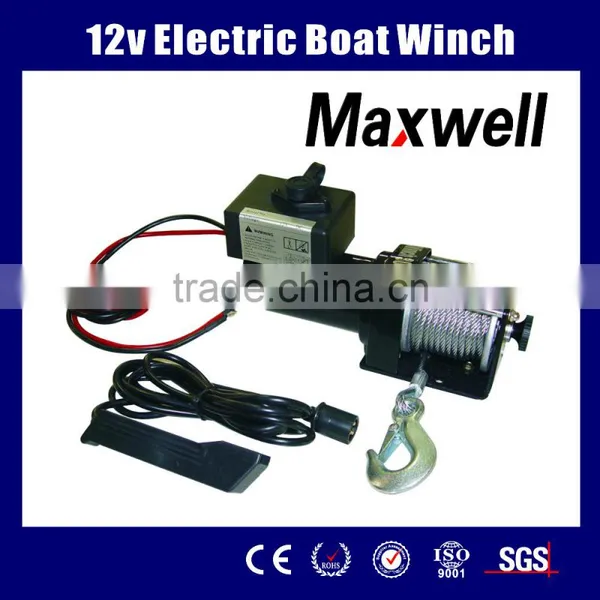

12v Electric Boat Winch

Negotiable MOQ: 300 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

LT1030

Contact Supplier Request Quote Chat Now

Hangzhou Maxwell Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number LT1030

Power Source Electric

Application ATV/UTV

Capacity 3000LB

12v Electric Boat Winch

Item No: LT1030

3000lbs Electric Winch

Specification:
Rated line pull	3000 lbs (1361 kgs) single line
Motor	Permanent magnet, 1.0kw/1.34hp (12v )
Gear reduction ratio	153:1
Cable (Dia x L)	*Φ5.2mm10.2m**
Drum size (Dia x L)	*Φ1.24"2.88"(Φ31.5mm73mm)*
Overall dimensions (L X W X H)	*12"4.1"4.1"(305mm105mm105mm)*
Mounting bolt pattern	3.13"(79.5mm)
Packing size	*342434cm 2PCS/CTN*
Weight	N.W/G.W: 20kg/22kg

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.

2) Don't operate and spool under full load over one minute continuously.

3) While motor is over heating, please stop for a while to cool down.

4) Limited warranty.

Pull, Speed, Amperes, Volts(First layer)

Line pull lbs(kgs)	Line Speed ft/min(m/min)	Current A
	12V DC	12V DC
0	9.5(2.9)	10
1000(454)	6.6(2.0)	25
2000(680)	4.3(1.3)	60
3000(1361)	2.3(0.7)	150

Line Pull And Rope Capacity In Layer

Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(m)
1	3000(1361)	5.6(1.7)
2	2370(1075)	12.1(3.7)
3	1960(889)	19.7(6.0)
4	1670(756)	27.9(8.5)
5	1460(662)	37.1(11.3)
6	1290(585)	46.9(14.0)

Established in 2000, Hangzhou Maxwell Tools Co., Ltd. which is located the beautiful West Lake in Hangzhou City, We specializes in designing and manufacturing excellent quality of hand tools, pneumatic tools and power tools.

We have a strong R&D design ability to ensure that you are getting the stable performance products produced with the most advanced and cost effective technologies. Our QC department promises that every material has passed our strict inspection before assembling or producing. And each product will have strict inspected before delivery.

Our products have been exported to many countries and regions throughout the world in Europe, North America, South America, Australia, Southeast Asia, South Africa, etc. We have won a good reputation among our customers by providing high quality, safe and reliable Tools as well as fast and efficient service.

As we have exhausted ourselves to control the best quality. All products we supplied and installed are warranted against defects in merchantable quality and workmanship.

Our Target is to provide you with the best quality products at the most competitive prices. We have a wealth of knowledge, experience in the field of Tools. We can provide excellent advice and support to insure you get the right products. We are looking forward to establishing favorable and long-term cooperative relationships with you.
We welcome your inquiry! We warmly welcome to visit Hangzhou Maxwell Tools Co., Ltd.
