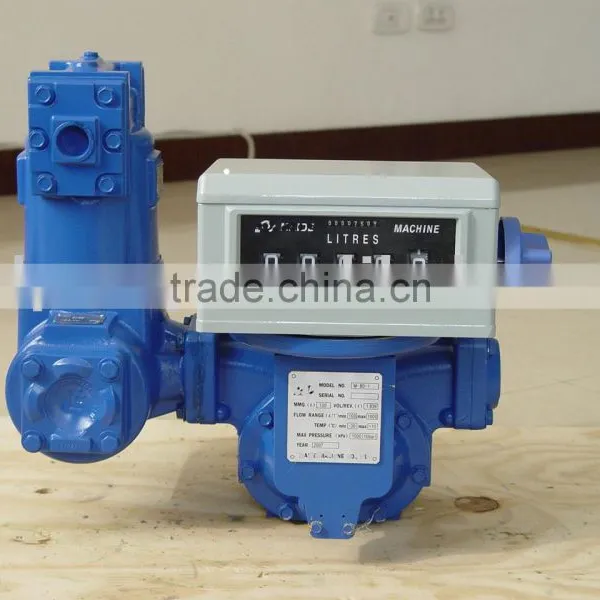

Positive Displacement Flow Meter Model: M-40-1Positive Displacement Flow Meter Model: M-40-1
Application:
1.refined petroleum products;
2.aviation gasolines and jet fuels;
3.a wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
4.treated waters (deionized, demineralized, and potable);
5.chlorinated solvents and general solvent metering;
6.acid pH liquids;
7.liquefied petroleum gas(LPG);
8.crude oil, also for heated and/or viscous liquids;
9.oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
10.herbicide;
dium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
12.abrasive liquids
Technical Specification:
Flow Rate: 25-250L/min
Diameter: 40mm/1&1/2"
Accuracy: ±0.2%
Volume Per Revolution: 0.309L
Max. Pressure: 10Bar/150PSI
Repeatability: ≤0.05%
Standard Measurement : Unit LIter/ US Gallon
Meter Body : Aluminum,Cast Iron, Steel,Stainless Steel available
Seal & Gasket :Buna"N";Viton;Teflon available
Stranier Mesh: 80 for Diesel ,40 for Gasoline
End Connections : ANSI Flanged,NPT,BSPT,Slip Weld available
Viscosity: 30SSU~1,500,000SSU
