CCT-650 Online Conductivity Controller
Economical online conductivity controller, 3 points calibration, 4 to 20mA output signal. The meter is suitable for monitoring the conductivity and TDS of the water quality.
Features:
• Economical online conductivity controller with TDS measurement mode.
• 1 to 3 points calibration with automatic calibration solution recognition.
• Selectable cell constants, temperature coefficient and TDS conversion factors.
• Automatic Temperature Compensation ensures accurate reading.
• Low and high alarm limits can be set by user and automatically activate an external device.
• 4 to 20mA output signal meets industrial requirements.
• Manual temperature calibration improves the measurement accuracy of meter.
• Selectable temperature unit (°C or °F) for different application requirements.
• System menu allows setting the 9 parameters, including the calibration points, cell constants, alarm limits, hysteresis value, etc.
• Reset feature automatically resumes all settings back to factory default options.
Specification:
Model |
CCT-650 |
Conductivity | |
Range |
0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
Accuracy |
±1% F.S |
Resolution |
0.01, 0.1, 1 |
Calibration Points |
1 to 3 points |
Calibration Solutions |
84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm |
TDS | |
Range |
0~10ppt (Max. 20ppt, depending on factor setting) |
Accuracy |
±1% F.S |
TDS Factor |
0.1~1.0 (Default 0.5) |
Temperature | |
Range |
0~100°C, 32~212°F |
Accuracy |
±1°C |
Resolution |
0.1°C |
Communication | |
Transmitter Function |
4~20mA, Load 500Ω |
Low and high alarm limits |
0.02uS/cm~20.0mS/cm, Selectable |
Communication Interface |
RS485 |
Others | |
Temperature Compensation |
0~100°C, 32~212°F, Automatic |
Temperature Coefficient |
0.0~10.0%/°C |
Cell Constant |
K=0.1, 1, 10 |
Normalization Temperature |
25°C |
Environmental Conditions |
0~60°C, 32~140°F |
Power Requirements |
DC24V |
Dimensions |
96(L)×96(W)×75(H)mm |
Weight |
350g |
Order information | |
Accessories |

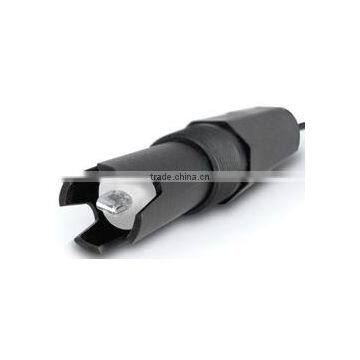

IE-50MT Industrial Conductivity Electrode |
Optional Accessories | |
Order Code |
Description |
IE-50LT Conductivity Electrode |
For the pure water |
IE-50MT Conductivity Electrode |
For the general liquids |
IE-50HT Conductivity Electrode |
For the high conductivity liquids |
Conductivity Calibration Solutions |
84µS, 1413µS, 12.88mS, 111.8mS |
Packaging | |
Dimensions |
150(L)×120(W)×90(H)mm |
Weight |
0.9kg |
