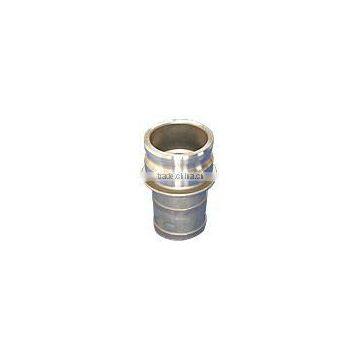

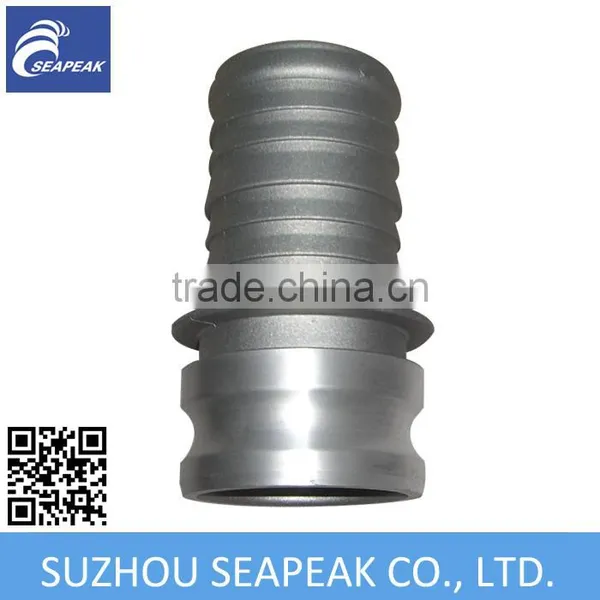

SS316 Camlock Coupling Type E

stainless steel 316 camlock coupling type E

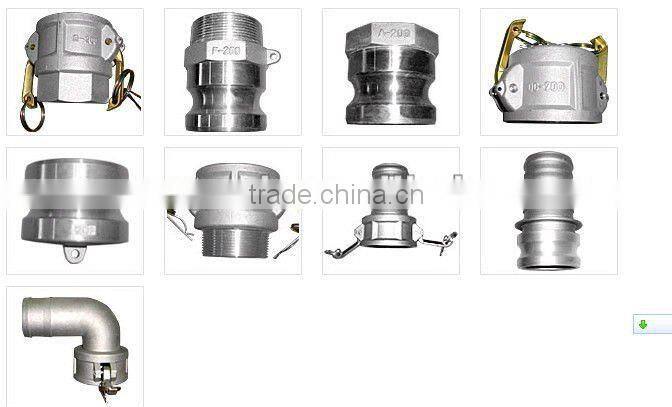

Besides type E, we still have type A,B,C, D, F,DC,DP

size of camlock coupling: 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6"
material: aluminum, brass, stainless steel, PP

specifications:

Standard of our cam and groove coupling:

Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828.

Casting method :

Gravity casting

Body material:

Aluminium A356 or A104

We use stainless steel or brass handles.

Pins.Rings and Safety clips of our kamlock:

We use steel plated pins.steel plated rings and Safety clips.

Sealings :NBR,EPDM,Viton,PTFE envelop gasket

Other materials are available on request.

Threads: NPT, BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)
