Cleanable Home & Garden Cooling Stainless Steel Fog Nozzle System

 Cleanable Home & Garden Cooling Stainless Steel Fog Nozzle system

   INDUSTRY APPLICATION

    Mining, Painting areas: cool down temperature, dust suppression,

    Textile: to be air  humidifier  for rising humidity, antistatic.

   OUTDOORS AND BUSINESS APPLICATION

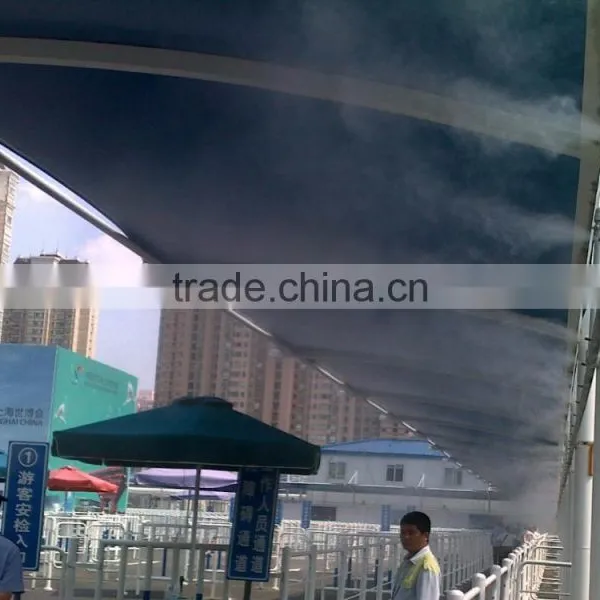

    Outdoors, Sport, Fair, Restaurant, Amusement Park: Scenery, cool down air temperature,

     mosquito repel.     School, Factory, Warehouse: drop in temperature.

    AGRICULTURE APPLICATION

     Green House: cool down air temperature, to be air  humidifier  for rising Humidity.

    ANIMAL HUSBANDRY APPLICATION

     Deodorization, disinfection, cool down air temperature.

The steps to install fog system;

1.      Screw a connector at IN side of filter to connect your water source for example your hose from faucet.

2.      Screw a white plastic socket at OUT side, insert the white hose in the socket and screw it.

white plastic socket, screwed another end of this white hose at the side with IN arrow of pump.

4.      Insert the black hose at the copper socket at the side with OUT arrow of pump, screw it.

5.      Cut the length of the black hose you want and insert another end at the nozzle base.

6.      Screw the fog nozzle at fog nozzle base.

7.      Insert the black hose at another side of fog nozzle base, continue step 5. and 6.

8.      At the end of system insert the end base and screw last nozzle.

9.      Of course the wires of pump must to connect the transformer and get electricity power to make it work.

10.  If you want to prevent the fog nozzles to drip when stopping to make fog, you must to install an auto valve to release the pressure.

11.  If you want to control the length of the time to work or stop, you must to install a timer.
