Heat-resistant Hepa Air Filter / Mini Pleat Hepa Filter/HVAC Filter

Heat-resistant Hepa Air Filter / Mini Pleat Hepa Filter/HVAC Filter photo-1
US$ 10 - 199 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
99.97%
Construction:
Panel Filter
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Efficiency 99.97%
Construction Panel Filter
Filtration Grade Hepa Filter
Medium Material Fiberglass
Porosity customized
Place of Origin Jiangsu, China
Brand Name C.CLOUD
Model Number HVAC-PL-MERV17
Dimension(L*W*H) 610x610
Weight 11.5lbs
Certification UL,NAFA
Warranty 3 months
After-sales Service Provided Overseas third-party support available



Heat-resistant hepa air filter / Mini pleat hepa filter/HVAC Filter MERV17



Key Benefits:



1. 1.The electrostatically charged media(electret meida) combined with PTFE(Poly Tetra Fluoro Ethylene) provide precise filter efficiency


2. The open filtration media structure and the high surface area mini-pleated design,provides a low pressure drop performance to help increase energy efficiency



3. It's integrated frame with seal strip helps to minimize the air bypass around and between the filter



4. The innovative aluminum frame makes handling and installation easier ,as well as increasing the life span of the filter



5.  With strong stucture to reduce the chance of any filter damage that can occur during transportation or handling



6.  The high performance design will help reduce the use of storage space in comparison to similar filters of the same efficiency



7.  It provides a greater dust capacity and increases life span with its unique combination of depth loading filtration media,precise pleat stucture and the larger filter media area



8. Meet UL900 flammability rating (US)  and ULC-S111 rating(Canada)



10. Tyipcal Applications:Hotels and enterainment complexes,Commerical office,Universities/Schools,

Government  institutions, Hospitals and Healthcare facilities

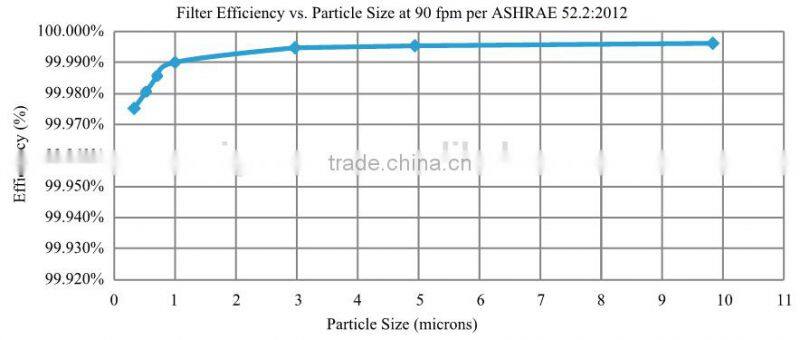

MERV17 Performance Data
Air Velocity for Ashrae Testing  90 fpm (360cfm for 24"*24"*2.7" filter)

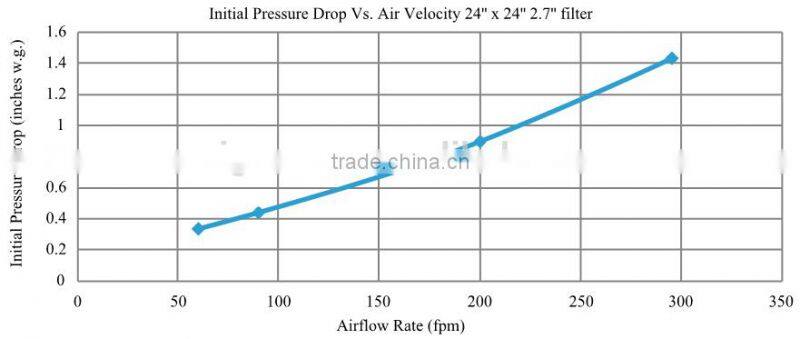

Initial pressure drop0.46"w.g.
Efficiency99.97 @ 0.3um
Operating Temp.-22°F-150°F

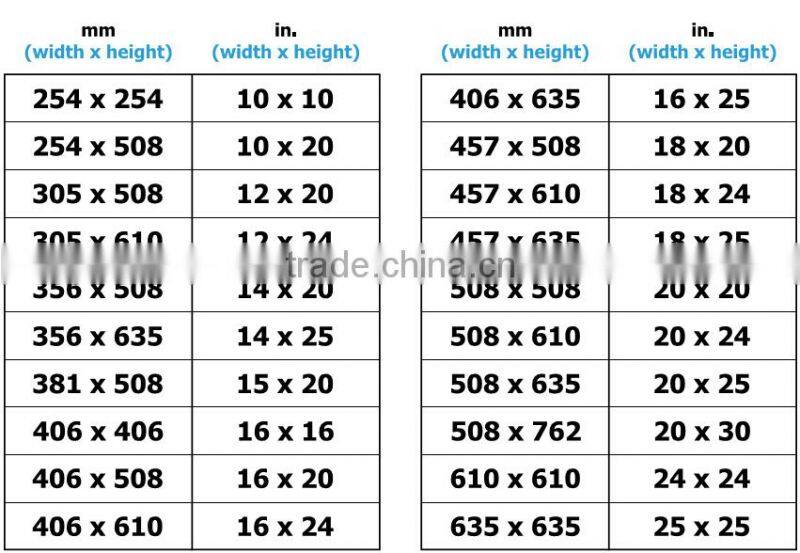

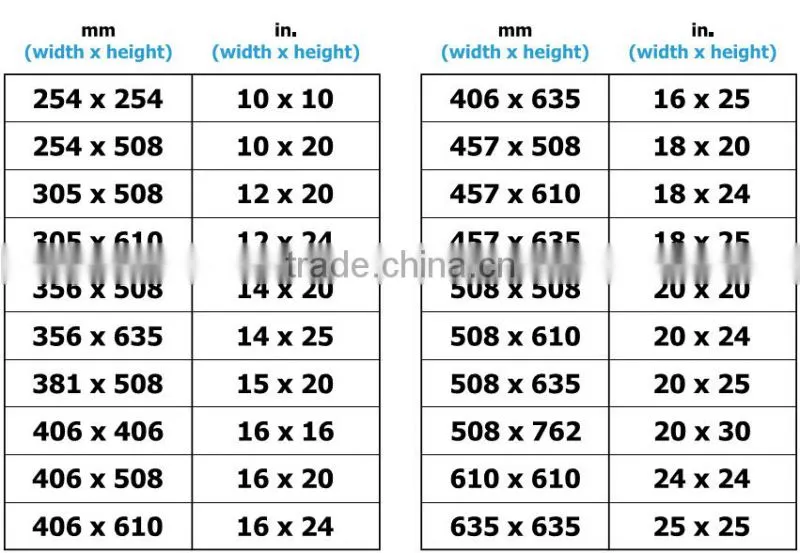

Dimension

  Heat-resistant hepa air filter / Mini pleat hepa filter/HVAC Filter

Heat-resistant hepa air filter / Mini pleat hepa filter/HVAC FilterHeat-resistant hepa air filter / Mini pleat hepa filter/HVAC Filter
