Commercial HVAC V-Banks Filter MERV15
Features:
1. High efficiency;
2.Large dust holding capacity;
3.With long filter life due to unique combinationof electrets,depth-loading filtration media,precision pleat structure and high filter media area.The unique characteristics will also help distribute air flow and mass evenly.
4.Greater energy conversation
5. Easy-installed seal gaskets in front and back to omit extra installation labor and reduce air bypass
6. Lightweight frame feature makes it easier for transportation,handling and installation.
7. 100% synthetic to avoid moisture and humidity.They are corrosion free filters that will not support the growth of mold.
8. 100% metal free and can be fully incinerated
9. Meet UL900 flammability rating (US) and ULC-S111 rating(Canada)
10.Application: Commercial offices, Universities/Schools, Government Institutions,Hotels and Entertainment complexes,Clean manufacturing facilities,Healthcare and analytical laboratories, Pharmaceutical Companies ,Hospitals and Healthcare facilities.
| MERV15 Performance Data | |
| Air Velocity for Ashrae Testing | 492 fpm (1968cfm for 24"*24" filter) |

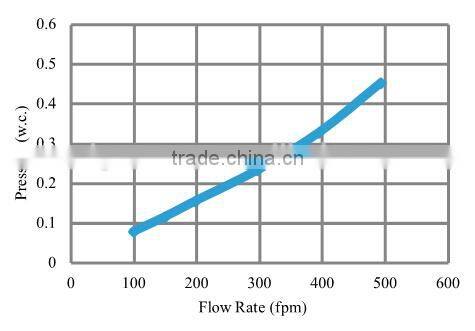

| Initial pressure drop | 0.45"w.g. |
| Recommended final preussure drop | 1.4" w.g. |

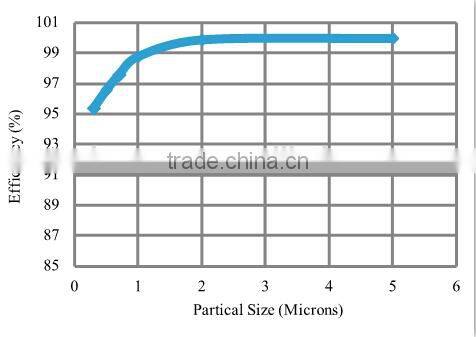

| Efficiency Rating per ASHRAE 52.2:2012 | MERV 13 |
| Dust holding capacity at 1.4 w.c.. | 205g |

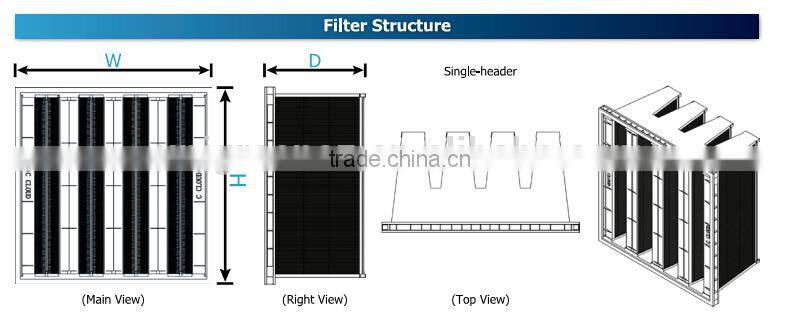

| Dimension and Weight | ||||||
| Product No. | Item No. | Normal Dimensions "A"XB"XC" Inches(mm) | Width "A" Inches mm | Height "B" Inches mm | Depth "C" Inches mm | Weight |
| MERV 15 | CC-24*24-15 | 24"*24"*12" (610*610*305) | 23 3/8" (592) | 23 3/8" (592) | 11 5/8"(295) | 12lbs |
| MERV 15 | CC-24*20-15 | 24"*20"*12" (610*608*305) | 23 3/8"(592) | 19 3/8"(490) | 11 5/8"(295) | 10.5lbs |
| MERV 15 | CC-24*12-15 | 24"*12"*12"(610*305*305) | 23 3/8"(592) | 11 5/8"(295) | 11 5/8"(295) | 7.5lbs |
