U Type Drag Conveyor Flight

Specifications

Material: UHMWPE, Nylon,PU
Model: Round type, Square type, U type
Features: Unique wear resistance, good toughness, low noise

1.Material: Virgin Ultra High Molecular Weight polyethylene(UHMWPE) ,HDPE,Nylon,PU
2.Model:Round Type, En masse type, U type
3.Features: Unique wear resistance, good toughness,low noise, less abrasion to the conveyor shell, prolong the life span of the conveyors.



Remark

1For any specifications, we can make according to customer's demand.
2For detailed information about HDPE,Nylon,UHMWP, please refer to the Elevator Buckets.

If you need specific product standard, please contact us at any time.

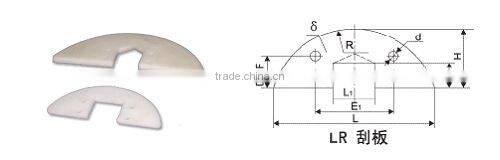

Model	L	L1	S	H	h	R	E1	F	D	d
LR185*132	350	60	14	132		185	102	32	19	9
LR158*110	300	60	14	110		158	102	32	21	9
LR122*90	230	60	10	90		122	102	32	14	9
LR158*126	300	50	14	126	50	158
LR155*110	295	60	14	110	55	155	102	32	20	9
LR146*125	285	60	13	125	50	146
LR135*110	262	72	10	110	53	135	102	32	19	9
LR125*100	242	60	10	100	52	125	102	32	11	9
LR110*77	200	40	9	77	42	110	50		53
LR110*70	195	48	10	70	40	110	90		11	9
LR100*90	196	60	10	90	45	100	102	32	14	9
LR100*74	180	48	10	70	40	100
LR90*90	180	60	10	90	43	90
LR80*70	160	52	10	70	46	80	74	27	12	7
LR80*58	150	50	10	58	30	80	80		14	7
