High voltage self adhesive tape rubber tape
High voltage self adhesive tape rubber tape description:
High voltage self adhesive tape rubber tape is our specialized product. It is an ethylene propylene rubber based high voltage tape possessing superior electrical, chemical, mechanical, and thermal properties. It is a self-amalgamating tape that fuses quickly yielding a void-free, electrically stable build-up. It is also compatible to all extruded dielectric cable insulation.
It is a versatile material for waterproofing, corrosion protection, jointing and repair of cables - used indoors and outdoors. Product properties and correct application ensure waterproof connections (for fresh and sea water) in a wide range of temperatures.
High voltage self adhesive tape rubber tape features
1. Wide operating temperature range: -40 ... +80 oC
2.Compatibility with a wide range of rubber and plastic dielectric cable insulation (e.g. PE, PVC, butyl, neoprene)
3.High resistance to prolonged immersion in water and excellent resistance to ozone;
4.The tape can be removed cleanly from most surfaces - ideal for temporary repairs;
5.The tape is interleaved with a disposable plastic liner.
High voltage self adhesive tape rubber tape technical data sheet:
sheet A:
Standard Sizes | |||
Width | Length | Core | Thickness |
19mm | 5m | 32mm | 0.5mm |
19mm | 10m | 32mm | 0.5mm |
25.5mm | 5m | 32mm | 0.5mm |
25.5mm | 10m | 32mm
| 0.5mm |
sheet B:
Property | Value | Unit | Test method | |
Total thickness | 0.5~0.8mm | mm | ASTM-D-1000 | |
Tensile strength | 20 | N/cm | ASTM-D-1000 | |
Elongation at break | 200 | % | ASTM-D-1000 | |
Continuous operating temperature | 90 | °C | ASTM-D-4325
| |
Emergency overload temperature | 130 | °C | ASTM-D-4325
| |
Water absorption | 0.02 | % | ASTM-D-570
| |
Ozone resistance | pass | - | ASTM-D-4325
| |
UV resistance | pass | - | ASTM-D-4325
| |
Electrical property | ||||
Dielectric strength | 600 | V/mil | ASTM-D-4325
| |
Recommended Use | ||||
For insulating and jacketing of splices on power cable from 600volts through 138,000volts and forbuilding stress cones and jacketing of terminations on power cable from 600volts through 35,000volts. A major component in transition joint construction.
| ||||

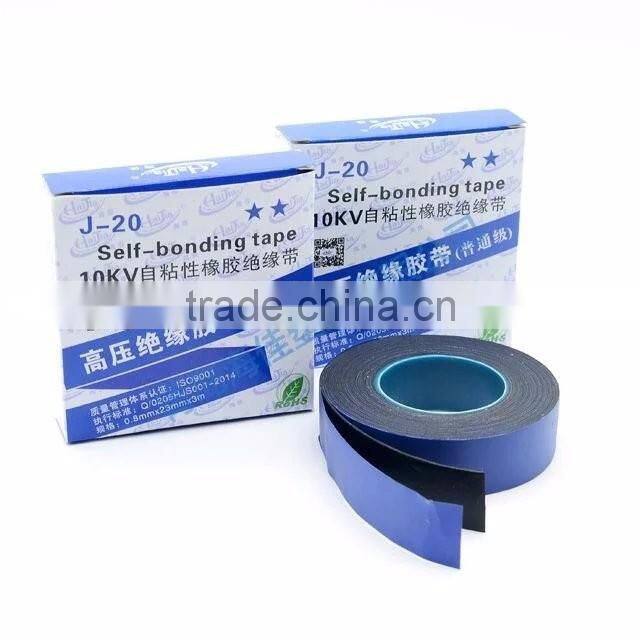

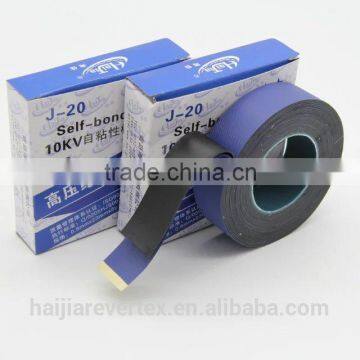

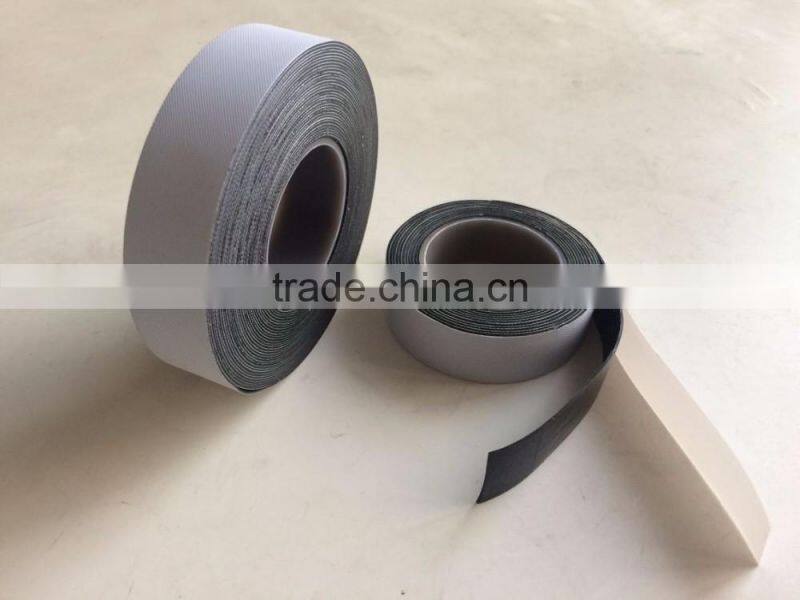

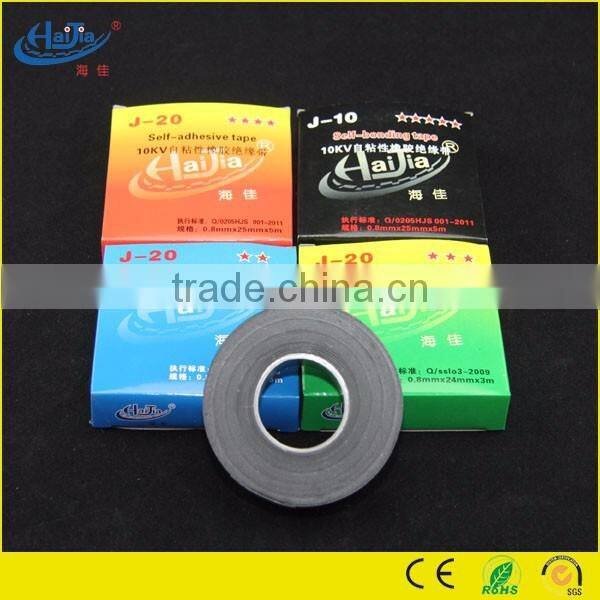

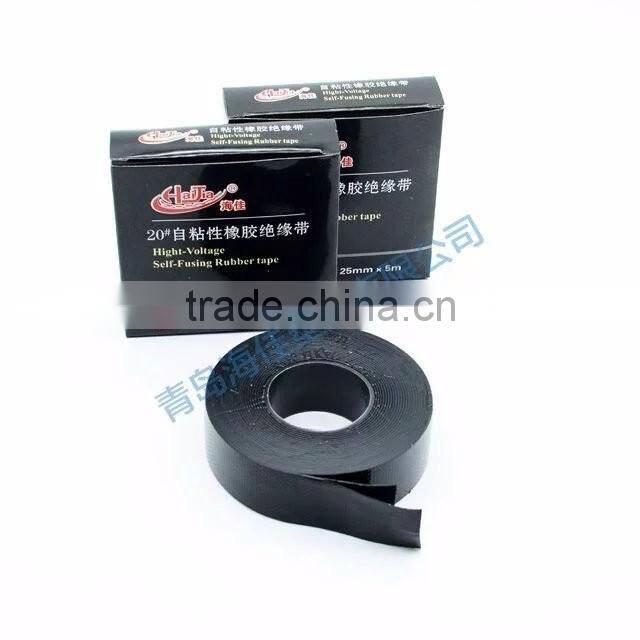

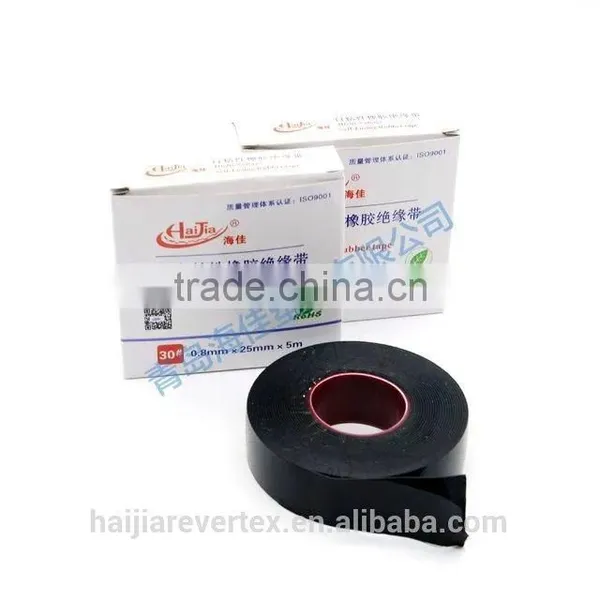

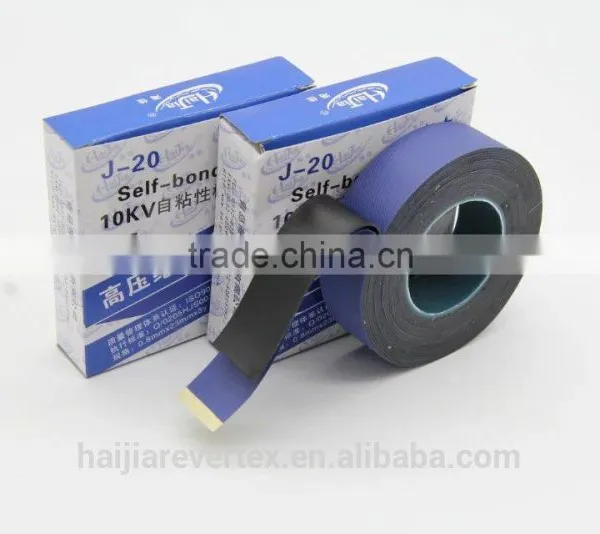

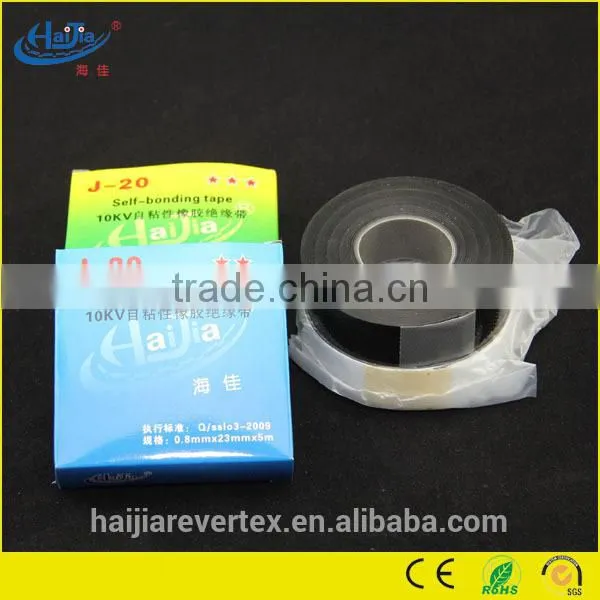

High voltage self adhesive tape rubber tape pictures:
Company
Information
Qingdao Haijia Revertex Co.,LTD is an integrated factory specialized in R&D, manufacture and sales of adhesive tapes.Founded in 2005 and located in costal city of Qingdao, so the transportation is very convenient. The company covers a total area of 20,000 square meters and produces high voltage self-adhesive tapes,PVC electrical tapes,warning tapes,cloth tapes,grafting tapes,aluminium tapes,foam tapes,BOPP sealing tapes,double sides tapes and PTFE tapes,etc. It's a professional manufacturer of any kind of tapes in Qingdao City. Due to an energetic team and with years of constant effort and innovation,Haijia has grown up into a well known tape brand in China. By now,we are a key supplier to influencial companies in home appliance,electronics and automobile industries both home and abroad. We have won good market in Japan, EU, south Asia and south America.Adhering to the principle "striving for survival by quality,seeking for development by credibility", Haijia is willing to join hand with you for a long term and reliable coorperation.
Factory pictures:
- Your inquiry about our Butyl tape rubber tape self fusing tape and price will be replied within 24 hours. Well-trained and experienced staffs are glad to answer all your inquiries in English of course.
- OEM&ODM projects are highly welcomed. We have strong R&D team here to help. Your business relationship with us will be confidential to any third party.
- Good after-sale service is offered, and please get back if you got question.
Suggestion for inquiry
- If you have a sample in hand, and want to buy the same goods for it, please send your inquiry with the real picture, sizes, packing requirements, qty, etc.
- If you are purchasing this item, please send us full details including the thickness, length, width, packing, application of the tape, and the quantity you need.
Contact us
Welcome to email for us ,if you have any intrest in our Butyl tape rubber tape self fusing tape. We will show you our best and careful services. Looking forward to cooperate with you in the near future based on the mutually benefit relations. We will reply you in due time.
Thanks for your kindly cooperation.
We usually use carton packaging, carton size can be customized according to the size of the order quantity. Our packaging is very exquisite and practical, so it can very effectively protect High voltage self adhesive tape rubber tape in transportation.
Packing: 120 brolls per carton(39*27*30) according to different size
Lead time: 7 to30 days according to different quantity
Fast and convenient way of transportation:
