Description

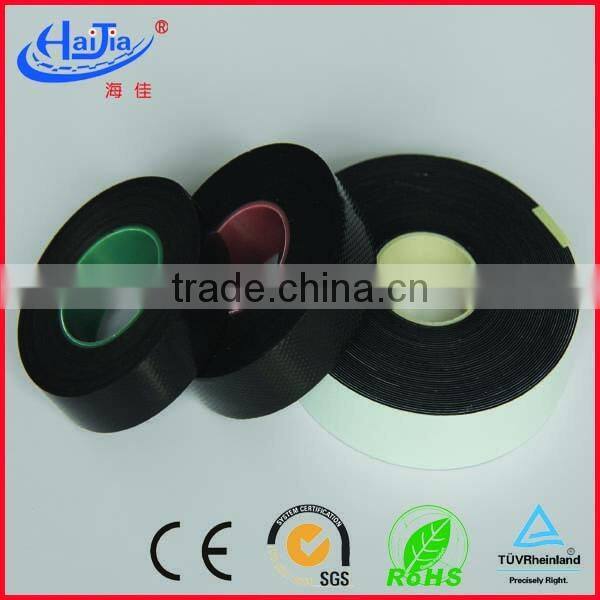

High voltage Electrical insulation tape with Rubber adhesive,It is an ethylene propylene rubber based high voltage tape possessing superior electrical, chemical, mechanical, and thermal properties. It is a self-amalgamating tape that fuses quickly yielding a void-free, electrically stable build-up. It is also compatible to all extruded dielectric cable insulation.
PROPERTY VALUE UNIT TEST METHOD
Total thickness 0.5 mm ASTM-D-4325
Tensile strength 250 Psi ASTM-D-4325
Elongation at break 700 % ASTM-D-4325
Continuous operating
temperature 90 °C ASTM-D-4325
Emergency overload
temperature 130 °C ASTM-D-4325
Water absorption 0.02 % ASTM-D-570
Ozone resistance pass - ASTM-D-4325
UV resistance pass - ASTM-D-4325
Electrical property
Dielectric strength 600 V/mil ASTM-D-4325
Dielectric Constant
24h@23 °C 2.6 -- ASTM-D-4325
168@70 °C 2.6 -- ASTM-D-4325
Dissipation Factor
24h@23 °C 0.001 -- ASTM-D-4325
168@70 °C 0.005 -- ASTM-D-4325
Volume Resistance 10 16 ohm-cm ASTM-D-4325
Data represents average test results and are not to be used for specification purposes. The buyer should make his/her own tests to determine suitability for intended use.
Recommended Use
For insulating and jacketing of splices on power cable from 600volts through 138,000volts and forbuilding stress cones and jacketing of terminations on power cable from 600volts through 35,000volts. A major component in transition joint construction.
