V-checker V303 EOBD OBD2 Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool

l  Classic design, fast scan and clear trouble codes, even a beginner can use this unit to read the error code, find out what the problem is and perhaps fix it. Save money and time. This scanner is well built with a large LCD display (128 x 64 pixel) that has white back-light and contrast adjustment, indicates test results directly. No need any Batteries or Charger, gets the power directly from the OBDII Data Link Connector in your vehicle.

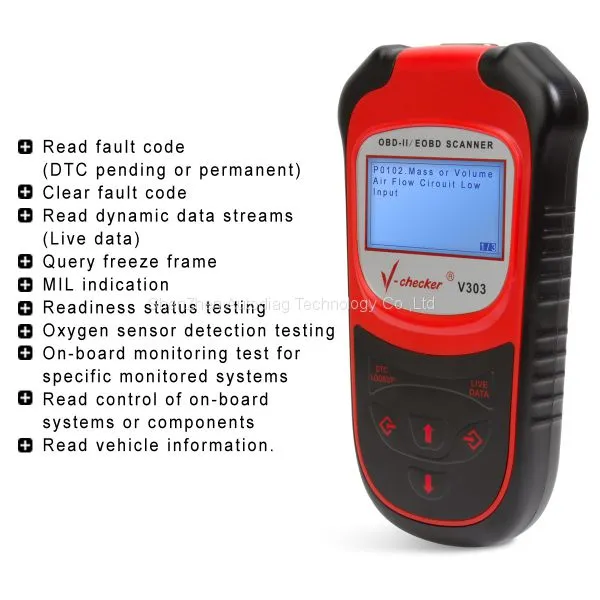

l  Read fault code (DTC pending or permanent), Clear fault code, Read dynamic data streams (Live data), Query freeze frame, MIL indication, Readiness status testing, Oxygen sensor detection testing, On-board monitoring test for specific monitored systems, Read control of on-board systems or components, Read vehicle information.

l  Support systems: Misfire, Fuel, Comprehensive components, EGR, Oxygen sensor, Catalyst, Evaporative, O2 sensor heater, Secondary air, A/C, and many more.

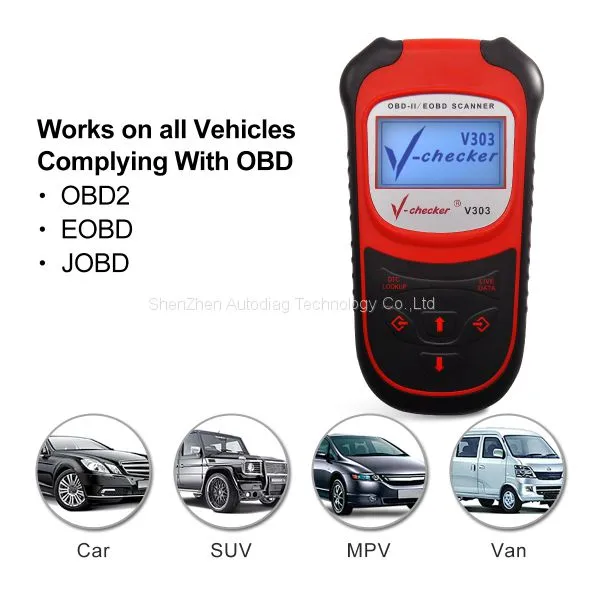

l  Works on all 1996 US-Based, 2000 EU-Based and Asian cars, and Newer OBD II & CAN domestic or import vehicles. Vehicle Coverage: Audi, BMW, Mercedes Benz, VW, Opel, Volvo, GM, Ford, Chrysler, Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Porsche, Ferrari, Polaris, Skoda, Daewoo, Dodge, Jaguar, Jeep , Land Rover, Suzuki, Mazda, Saab, Mitsubishi, Isuzu, Hyundai, Kia, Holden, Peugeot, Citroen, Renault, Fiat, Daihatsu, Chery, Geely, etc.

l  Supported vehicle protocols: ISO15765, ISO14230, ISO9141-2, J1850 VPW and J1850 PWM.

Product Description

The V-checker® V303 Scanner works on all 1996 US-Based, 2000 EU-Based and Asian cars, and newer OBD II & CAN domestic or import vehicles（MUST BE OBDII COMPLIANT ). Many scan tools claim to work on all vehicles but have problem with some protocols. Ours doesn't, ours work on all protocols! It's a powerful, affordable, easiest to operate.

The major function of this scanner is detecting the Engine System, read and clear the error codes. Once plugged into your vehicle's 16pin OBDII DLC, the unit will power up and prompt you to start your ignition. You have the menu to read error codes and erase error codes. If your vehicle has a check engine light, you can use this V303 to read the error code, find out what the problem is, and perhaps fix it. Even if you take it to someone else for repair, you will know ahead of time the error your car is having. Save money and time!

Note that the V303 scanner may not work on some special cars without OBD2 protocol; It depends on what's installed on the OBDII system by the manufacturer. Please check your car and don’t hesitate to contact us first if have any questions. We’re here and ready to help!

Main Features:

l  Reads hard (memory) / pending (intermittent) and historic codes and show definitions

l  Turns off check Engine light, clear codes and resets monitors

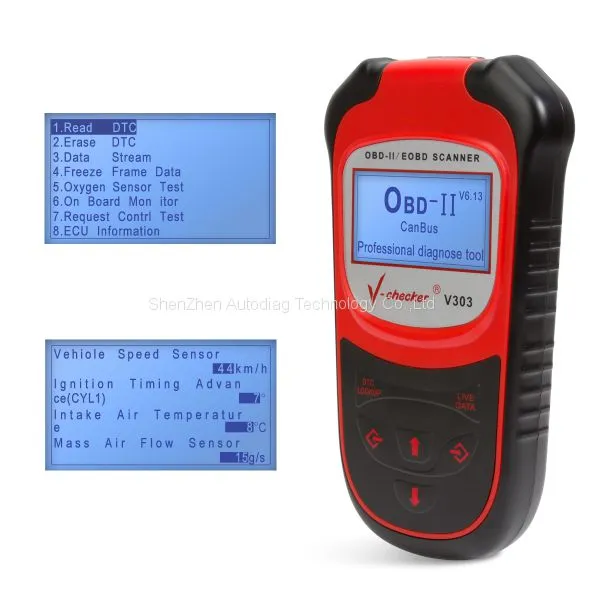

l  Reads live data stream

l  View freeze frame data, I/M monitor readiness test

l  Retrieves vehicle information

l  Supports CAN and ALL other OBD II protocols

l  Built-in OBD II Fault code lookup library

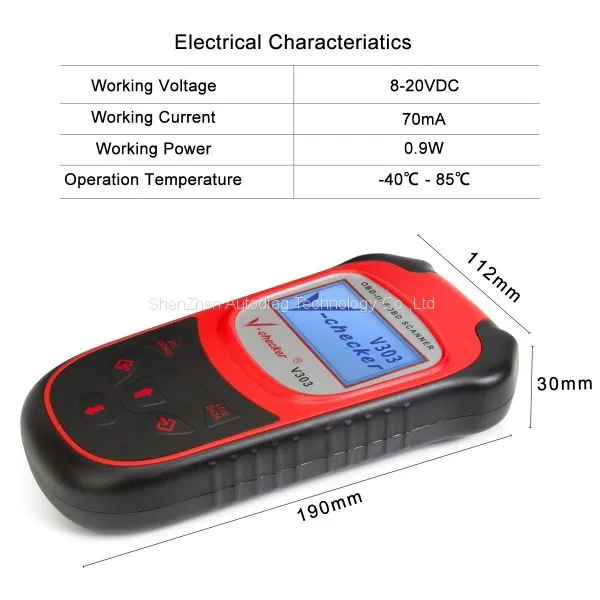

Specifications:

l  Dimensions: 220 * 134 * 70 (mm)

l  Weight: Approx 0.52Kg

l  Display: Back-lit, 128 x 64 pixel display

l  External power: 8.0 to 20.0 V power provided via vehicle battery

l  Operating temperature: -20 to 85 ℃(-4 to 185℉)

Package Contains:

l  1 x V303 Scanner Main Unit

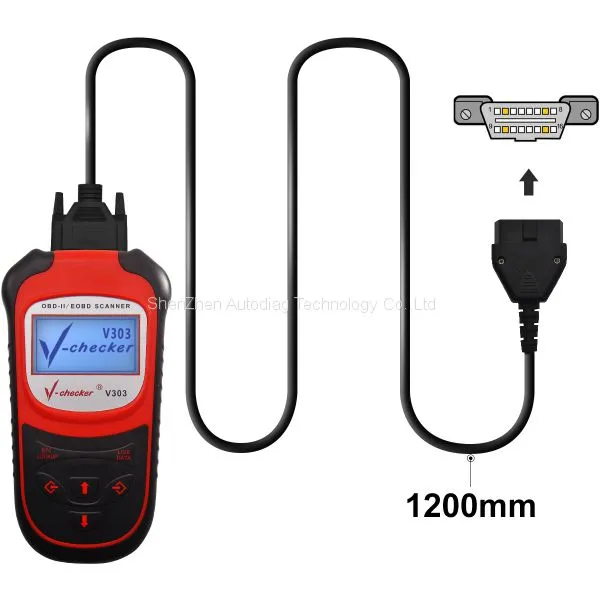

l  1 x OBD Data Cable

l  1 x User's Manual
