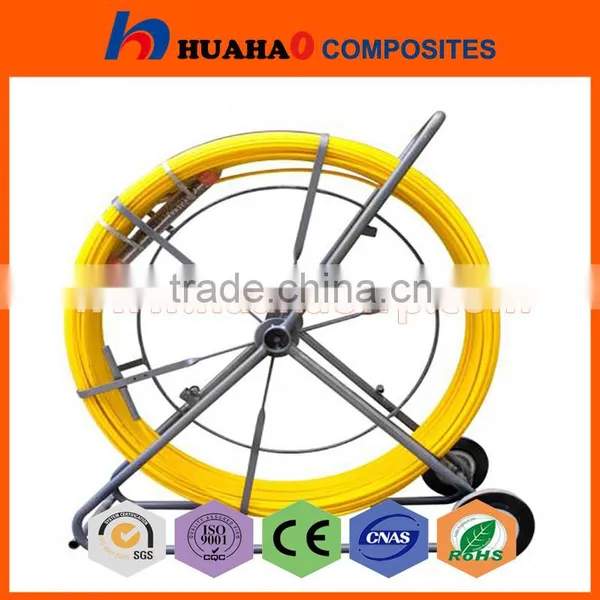

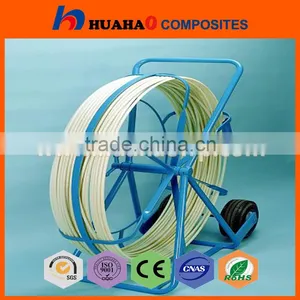

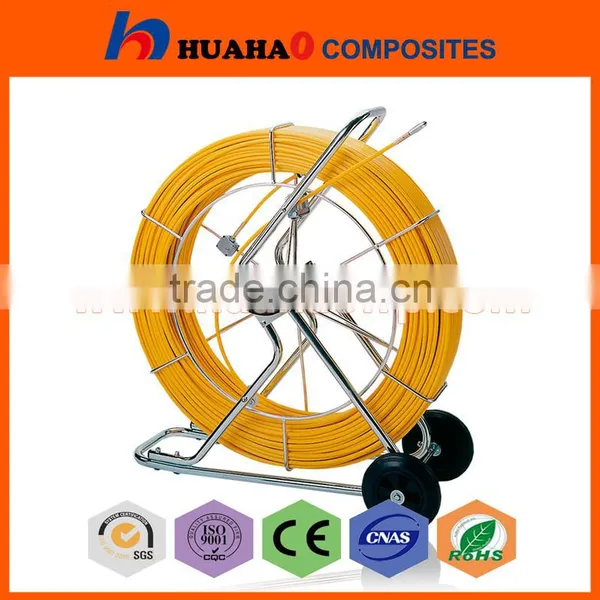

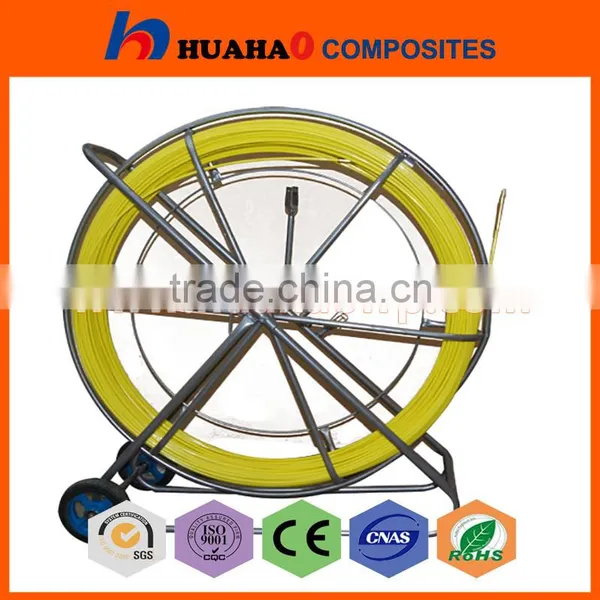

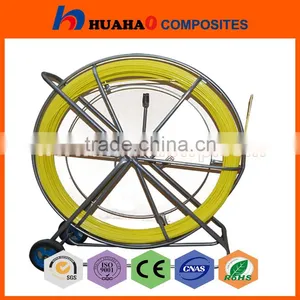

Fiberglass Duct Rodder

Huahao  own more than 10 years of FRP pultruded products experience and professional engineers so we  can

make better FRP pultrusion solutions for you . No matter FRP products are very large or small ,thick  or thin ,

complex or simple ,glass fiber or carbon fiber or mixed both fiberglass and carbon fiber , which we  can all

manufacture. We not only just a manufacturer of FRP and CFRP composites products ,but also an  excellent

solution provider of FRP products.

We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!

Material:

    »  Internal wire: copper or steel.
    »  Inner rod: fiberglass.
    »  Exterior coating: UV resistance polyethylene.
    »  Wheel: rubber, steel.
    »  Drawing head: copper.
    »  Frame: steel.
Frame finish: powder coated, zinc plated.

Specification:
    »  Rod diameter: 4mm - 16mm.
    »  Length of fiberglass rod: 30m - 500m.
    »  Working temperature: -40°C to + 80°C (-40°F to 176°F).
    »  Minimum bend radius: 4" (That is for 4mm rod diameter, other rods with larger diameter have larger bend radius).
    »  Max pulling strength: 4.5T (For rod diameter 16mm, other rods with smaller diameter have less pulling strength).
    »  Frame size: 160mm × 450mm × 500mm, 170mm × 600mm × 750mm, etc.

                            (maximum size: 550mm × 1500mm × 1600mm).
    »  Wheel: pneumatic/iron tyre or no wheel.
    »  Fiberglass rod color: yellow, blue, white, red, black.
    »  Package: plastic wrap and then into carton.

Note: we offer various sizes and colors for any specific requirement as customers' demand.

Features:
    »  Light weight, high tensile strength.
    »  Polyethylene coating for good electric insulativity, smooth surface, resistance to acid and corrosion.
    »  Elastic body for easy passing through narrow pipes and bending conduits.
    »  Copper wire inside for tracing if needed.
    »  Good friction and heat resistance allow the rod to travel longer distance in the conduits and to be

        operated in harsh environment.

    »  Meter marks on the protective layer of the rod for measuring distance, printed by professional printing machine.
    »  Waterproof and anti-ultraviolet for durable use.
    »  Hand operated brake for controlling payout of the pulling rod. The rotating and stopping of the rod can be easily

        controlled by the brake.
    »  Some frames are double-barreled reinforcement design for a more sturdy structure.
    »  Small bending radius allows the rod itself passing through tight bends in the ducts.
    »  Accessory or repair kit is available attached to the frame for greater versatility and easier ducting.

Storage:
Store in shady and cool places, it is prohibited in the sun exposure because long time exposure may result in fracture of

the duct rodder.

 Component parts of the duct rodder:

» 10 years experience

» Professional manufacturer

» Quality materials

» Expert workers

» Strict quality control

» Quality is guaranteed

» Reasonable price

» Short lead time

1)  How can I place order?
A: You can contact us by email about your order details, or place order on line.

2)  How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal

3)  What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished,

we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
