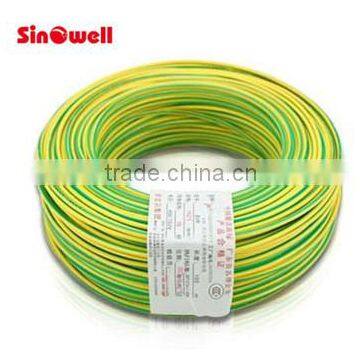

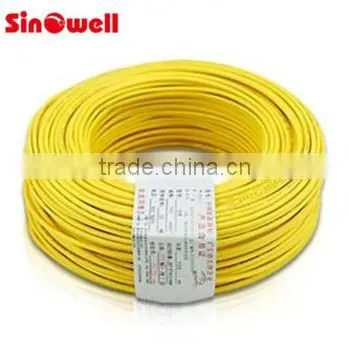

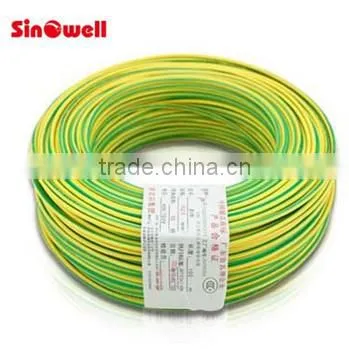

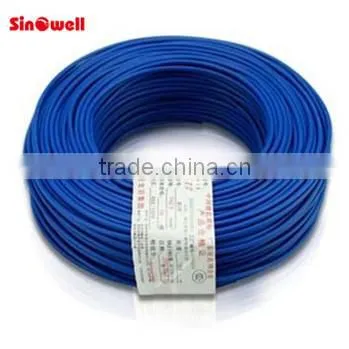

Help CenterHot Selling of PE Irradiation Electronic Wires UL 10981/UL 10982
Related Products
-
2C Strands Parallel Speaker Cable (Transparent PVC)US$ 10 - 20MOQ: 100 Rolls -
Low Voltage Copper Electronic Wire ManufacturerUS$ 1.8 - 17MOQ: 1 Roll
-
Strands Parallel Speaker Cable (Transparent PVC)CCA 100m 2 CoreUS$ 1 - 20MOQ: 100 Meters
-
Hot Selling of PE Irradiation Electronic Wires One Core Copper Electronic WireUS$ 0.05 - 0.1MOQ: 100 Meters
-
Very Cheap Electric WireUS$ 1.8 - 17MOQ: 100 Rolls
Specifications
electronic wirecheap price high quality

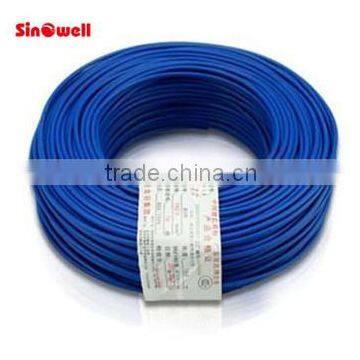

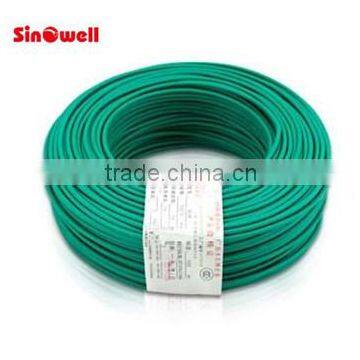

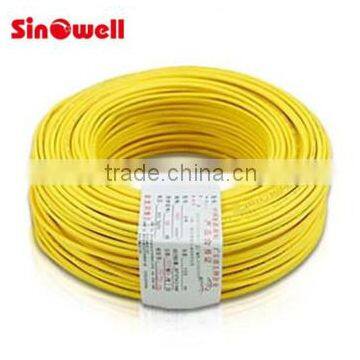

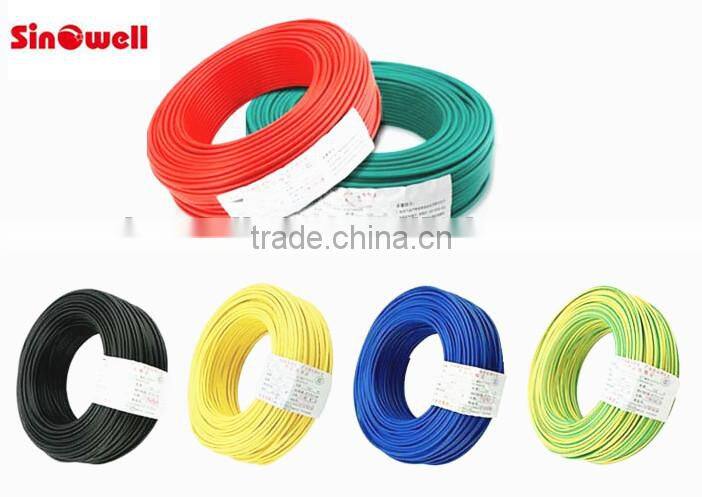

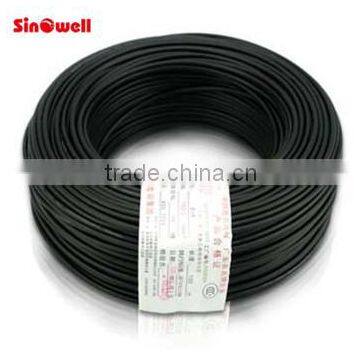

Jacket colour: Various colours available
Material:30% copper 70% copper; 100% copper
Product Description:
low smoke electric wire
Product Description:

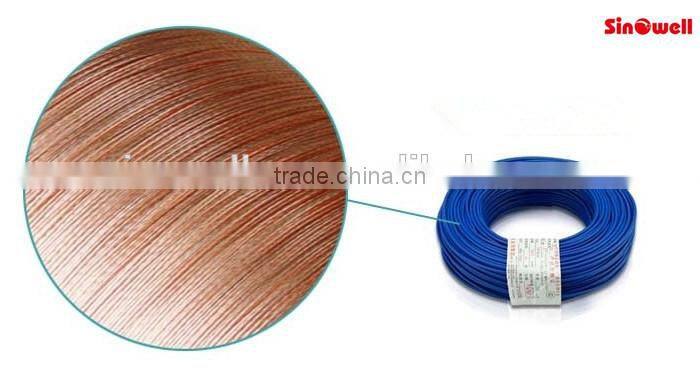

1.Tinned,annealed,stranded or solid copper conductor.
2. MPPE-PE insulation.
3.Rated temperature:80°C.Rated voltage:300volts

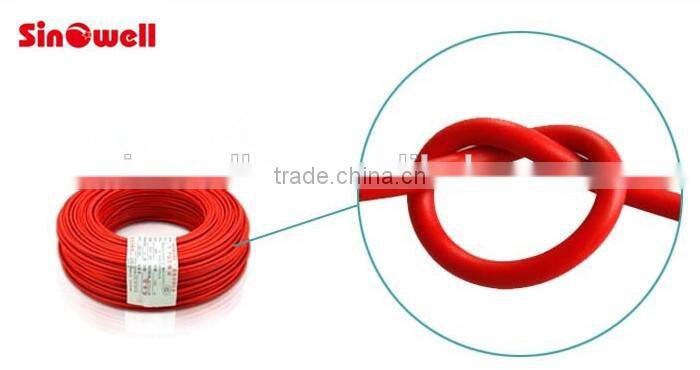

4.Uniform thickness of wire to ensure easy stripping and cutting.
5.Passes UL VW-1&CUL FT1 vertical flame test.
6.Top coated conductor is avaiable
Applications:
1.Internal wiring, installed where not subjected to movement or mechanical abuse.
| UL Style& CUL Type | Conductor | Insulation Thickness |
Overall Diameter |
Standard Put-up | Conductor Resistance at 20°C |
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL10981 CUL AWM I A (Stranded) |
30 | 7/0.10 | 0.23 | 0.80 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | 2000 | 610 | 239.00 | |
| 26 | 7/0.16 | 0.23 | 1.00 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.23 | 1.10 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.23 | 1.30 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.23 | 1.50 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.23 | 1.70 | 2000 | 610 | 23.20 | |
| 16 | 26/0.25 | 0.23 | 2.00 | 2000 | 610 | 14.60 | |
| UL10981 CUL AWM I A (Solid) |
30 | 1/0.254 | 0.23 | 0.75 | 2000 | 610 | 361.00 |
| 28 | 1/0.32 | 0.23 | 0.80 | 2000 | 610 | 227.00 | |
| 26 | 1/0.404 | 0.23 | 0.90 | 2000 | 610 | 143.00 | |
| 24 | 1/0.511 | 0.23 | 1.00 | 2000 | 610 | 89.30 | |
| 22 | 1/0.643 | 0.23 | 1.15 | 2000 | 610 | 56.40 | |
| 20 | 1/0.813 | 0.23 | 1.30 | 2000 | 610 | 35.20 | |
| 18 | 1/1.024 | 0.23 | 1.50 | 2000 | 610 | 22.20 | |
| 16 | 1/1.29 | 0.23 | 1.80 | 2000 | 610 | 14.00 | |

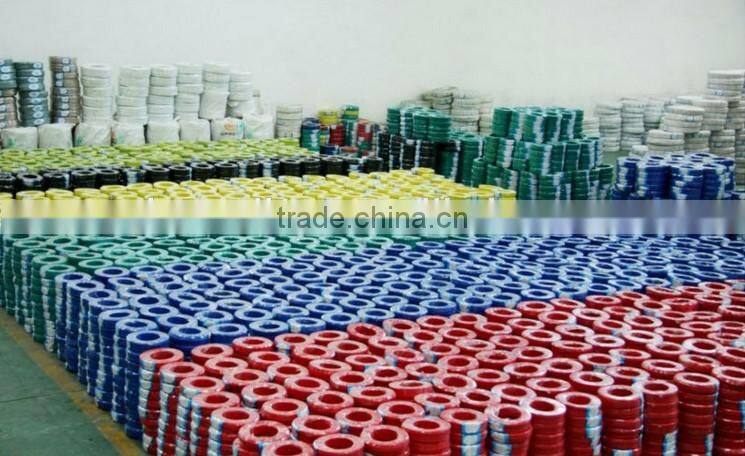

Packing:spool,drum and roll
Shipping:By sea or air
1. 24-hour online service guarantees timely reply about the details of any of our products .
2.High quality and best price promise profitable products and long relationship.
3. Supply the packing in accordance with your requirements. .
4.all of our products are high tech ,they are environmental friendly.
5.samples free.
6.Customized designs are acceptable, small order are accepted .
7. timely delivery
8. 100% tested before shipment
Our factory is specialized in prodcing high and low frequency electronic elements and wires and cables,including Multimeter ,F connector,TV plugs and jacks ,splitters, matching transformers,RCA plugs and jacks, Phone plugs and jacks,DC plugs,AC plugs ,AC sockers ,AC adaptors, banana plugs ,banana jacks, bingding post ,audio adaptor , power cable, computer cable ,audio and video cable and so on .Our products is not only sold in China but also exported to Europe, America, Russia, Singapore, Malaysia and other countries in the world. Our products are popularly sold and own a high reputation.
With the principal of "Good promise, high quality", we provide every customer with the best quality products and perfect service.
We warmly welcome you to establish a business with us, and we appreciate every advice from you. Hoping to get mutual benefit together with you
