Specifications
Parrelle Twin Screw and barrelSize: dia50/50mm and dia132/132mm
Ratio of length to diameter: L/D=24:1 PVC screw barrel

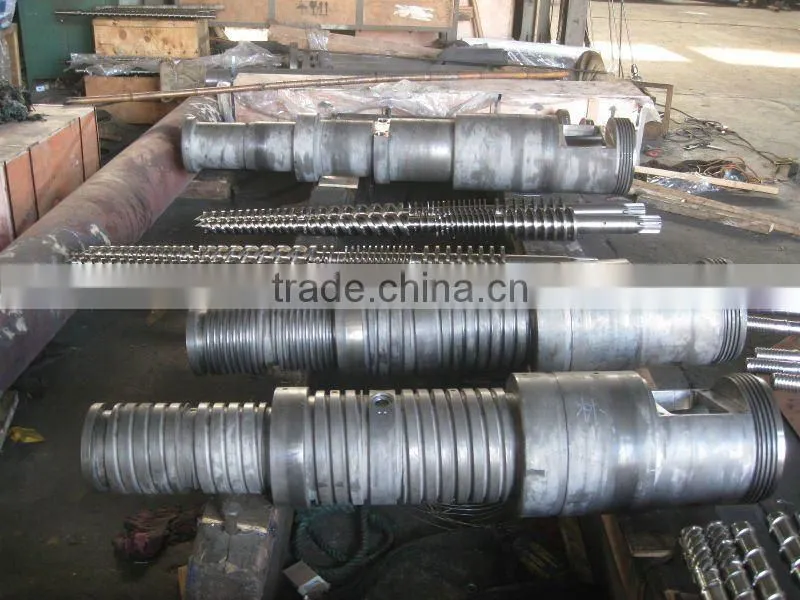

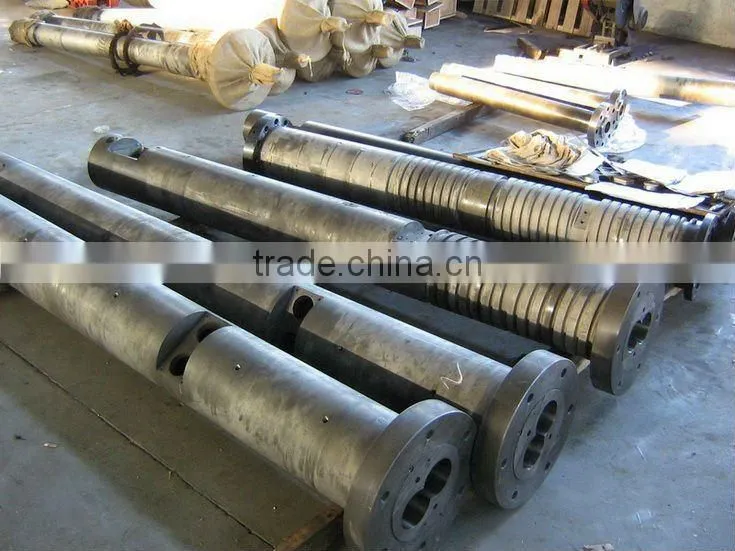

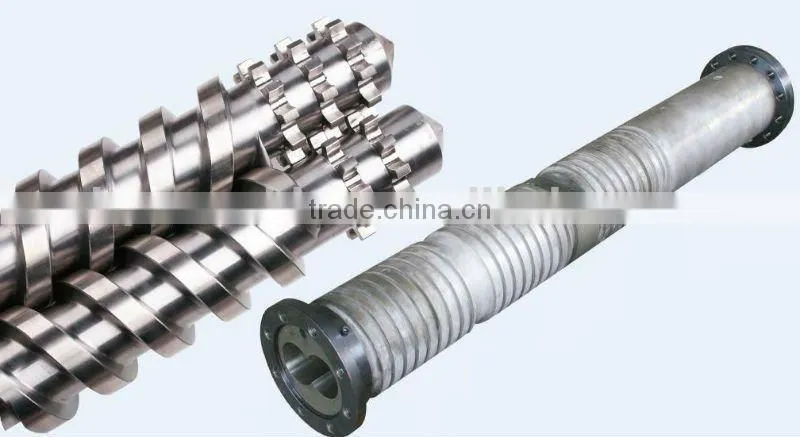

PVC screw barrel for extruder machine
Parrelle Twin Screw and barrel
Size:
dia50/50mm and dia132/132mm
Ratio of length to diameter: L/D24:1
dia132/132mm parallel twin screw and barrel( old moudel 1989 PVC extrusion machine)
screw total length: 3385mm
barrel total length: 3100mm
L/D24:1
TECHNICAL DATA
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Bimetal coating thickness 1.5-2.0mm
Material: Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made from imported anti-wear alloy can be improvde abrasion performance.
we also can make the Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares
