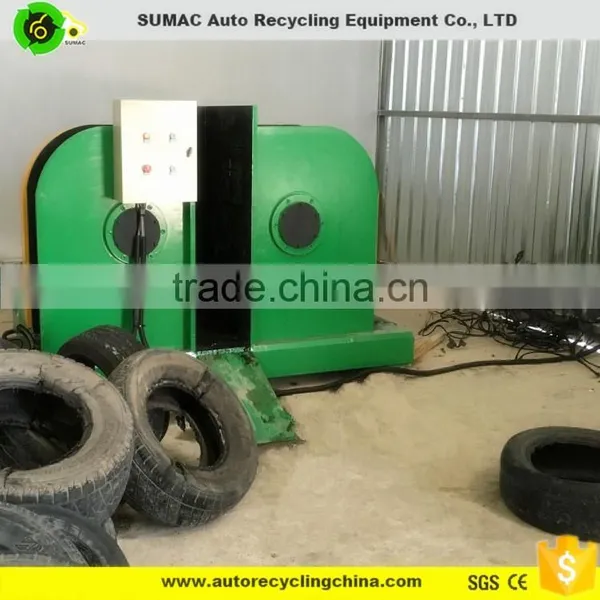

High performance tire bead steel wire puller with CE certificate
The machine is used to pull out the both beads wires from the waste tires completely at the same time.The machine is composed of main shaft supporting board, cross hole blocking board, blocking plate supporting board, bracket, upper crutch, speed reducer, motor, transmission gears, main shaft and control cabinet, etc.
* The machine use integral base pedestal, easy installation and operation, it is the most efficient debeader in the current market;
* Adopts the motor and twin hooks, design to pull out bead wires at 3 times the speed of the single hook debeader.
* Mechanical transmission and round hook design, high efficient and small occupation area.
* Circuit protection system, safety protection frame to make the operation easy and safe.
* Round hook, cross hole plate and gears are made of materials after special treatment, wearable, heavy-duty, easy maintenance and long life.
Model |
SL-1200 |
Capacity |
60~120pcs/hour |
Type of tires |
≤1200mm |
Powder |
15KW |
Pulling force |
30T |
Weight |
6500kg |
Dimension |
2250x1660x1500mm |

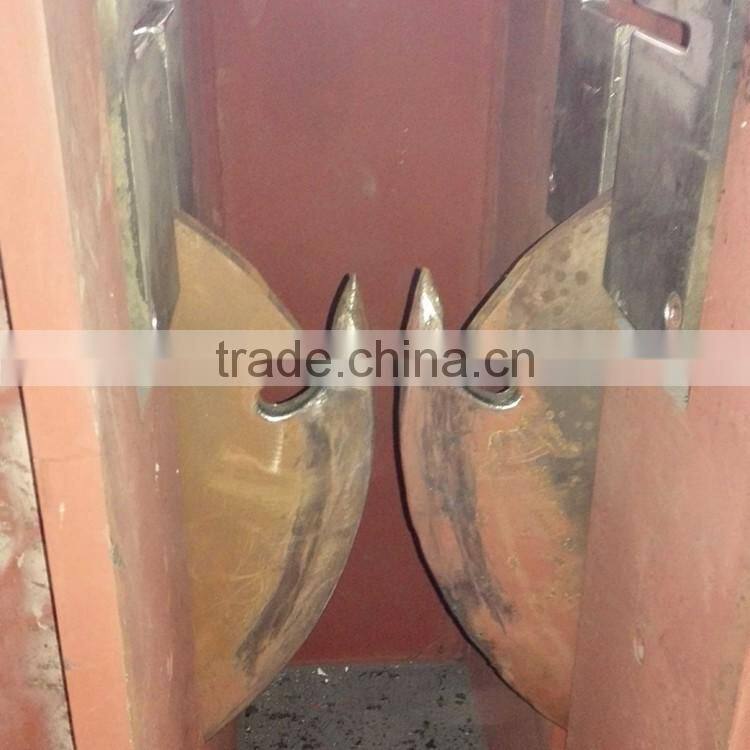

Double hooks:
The waste tire after remove the tire bead steel wire:
Why we need to remove the steel wire of the tire bead ?
--To increase the life of the tire shredder's knives,(the price of tire shredder's knife is about USD 1000/pc,the tire shredder has 20pcs knives.
