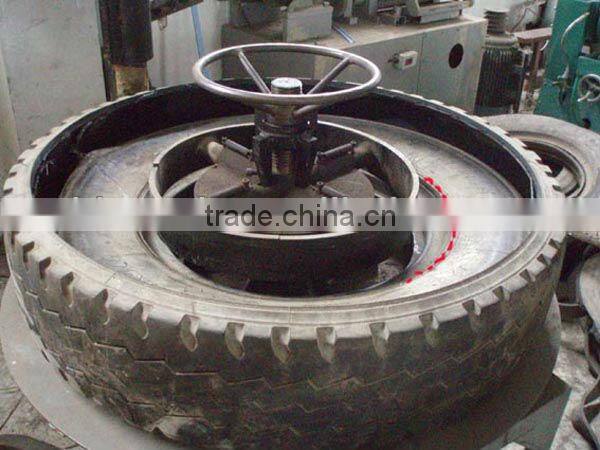

Tire bead ring cutting recycling machine
I. Main Application:
To cut the whole tire into tire crown, tire sidewall, tire bead. II.. Structure and Principle:
The unit consist of frame, rotate mechanism, porp mechanism and knife mechanism. its principle is that select the tire bead as a prop point and place it on porp mechanism, then adjust it to tightly. start the machine in low speed by slow down Jtransmission part; knife is set on the machinery panel and it can be forward and back at ones ease. Meanwhile the tire rotating in low speed, the knife cut into the tire to cut open it successfully. In order to cut the tire even smoothly and cool the knife, you can from complete set the water pump to inject water to the cutting point.
III .Technical Data:
Model |
Power(kw) |
Revolving speed(time/min) |
Fitted norm |
Overall size(m) |
Weight(kg) |
1200 |
3 |
15 |
650×1200 |
1.15×0.85×1.2 |
500 |
