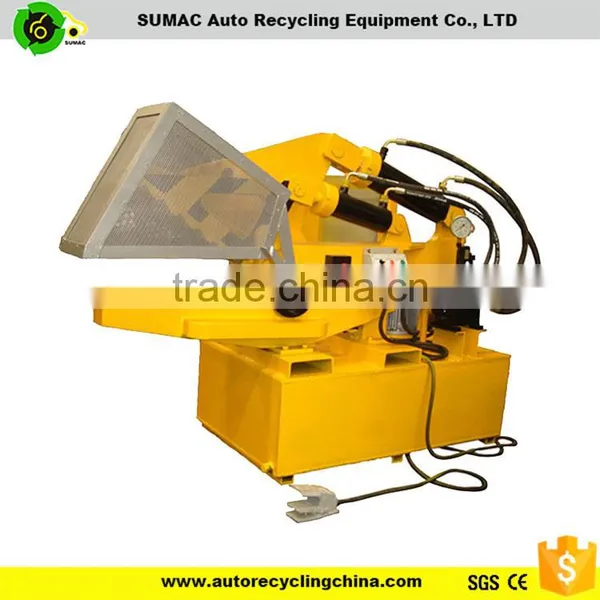

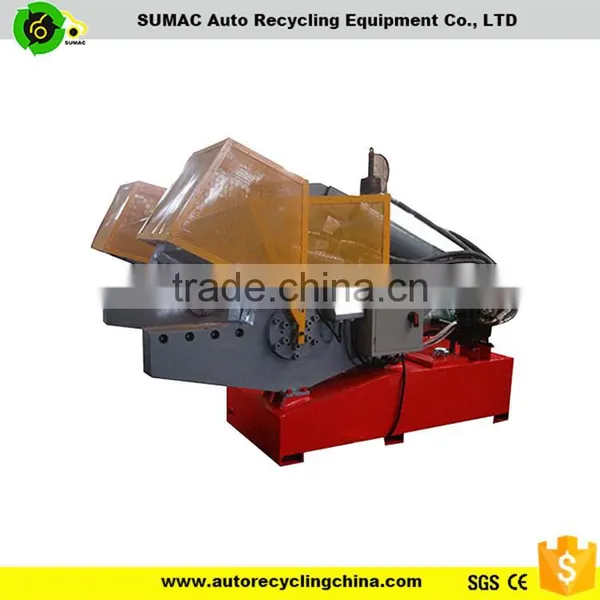

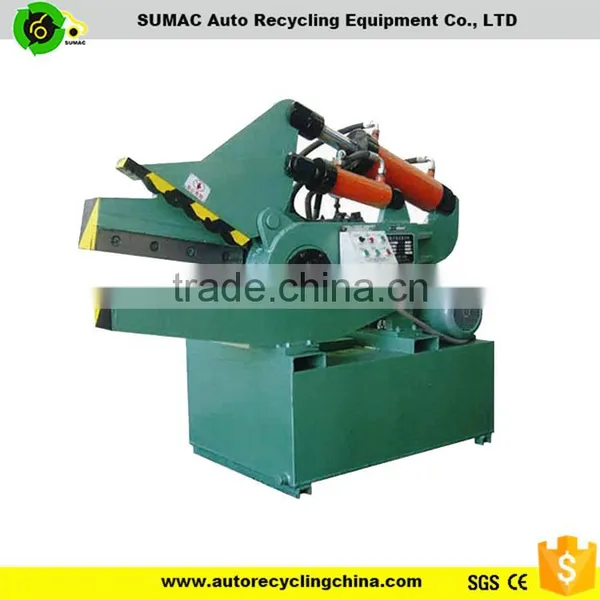

Hydraulic Alligator Shear For Scrap Metal recycling
Introduction
Q08 Hydraulic scrap metal shear is a new developed model which used advanced technology on worldwide level. This shear is suitable for cold cutting (instead of flame cutting) different type waste metals to short pieces which qualified to the furnace, it could improve the work efficiency as well as save the labor and gas cutting cost.
In auto recycling system, this shear is widely used to cut the catalytic converter, kinds of waste scraps, etc.
Structure and principle
It applies the hydraulic drive and pre-press unit, it is more safe and reliable.
Two operation modes, that is , manual and automatic modes are available.
Operating knifes edge length come in two specifications, that is 600 and 700mm.
Optional part is the safe cover for the knives.
Main Technical Parameter
Model |
Max. shearing force (KN) |
Max. press force (KN) |
Max. knife opening (mm) |
Knife length (mm) |
Shearing Speed (times/min) |
Power (Kw) |
Material Size (mm) |
Operation |
Q08-63 |
630 |
120 |
320 |
600 |
14~20 |
7.5 |
20x200/Φ35 |
Manual or auto |
Q08-100 |
1000 |
120 |
320 |
600 |
12~20 |
7.5 |
30x200Φ40 |
Manual or auto |
Q08-120 |
1200 |
160 |
320 |
600 |
12~20 |
11 |
30x250/Φ45 |
Manual or auto |
Q08-160A |
1600 |
200 |
360 |
600 |
11~20 |
15 |
30x320/Φ65 |
Manual or auto |
Q08-160B |
1600 |
200 |
380 |
700 |
11~20 |
15 |
30x320/Φ65 |
Manual or auto |
- Free product documents translation into your language, worry-free to operate and maintain
- 7x24 technical phone service
- Engineers available to service machinery overseas
- Customer database with all customers’ records in it.
- 10 years overseas sales experience
