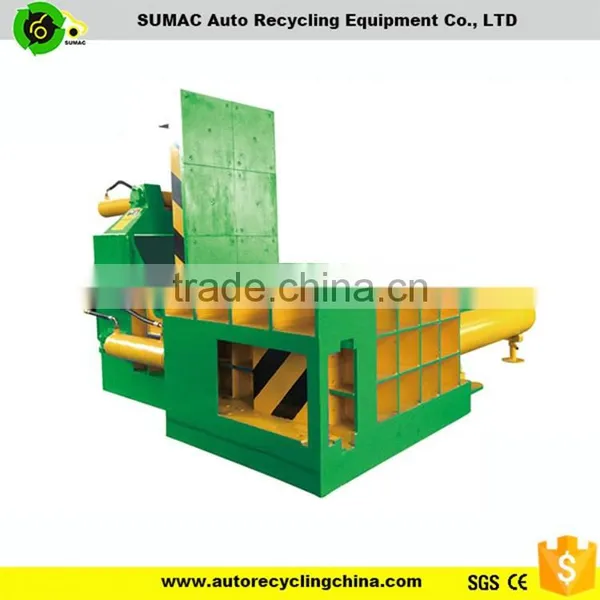

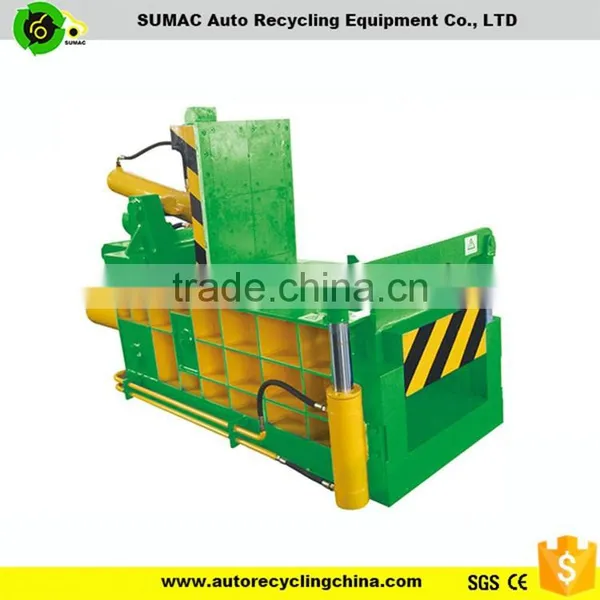

hydraulic scrap metal shear machine
Introduction
Q08 Hydraulic scrap metal shear is new developed model which used advanced technology on worldwide level.This shear is suitable for cold cutting (instead of flame cutting) different type waste metals to short pieces which qualified to the furnace,it could improve the work efficiency as well as save the labor and gas cutting cost.
In auto recycling system,this shear is widely used to cut the catalytic converter,kinds of waste scraps,etc.
Structure and principle
1. It applies the hydraulic drive and pre-press unit,it is more safe and reliable.
2.Two operation modes,that is ,manual and automatic modes are available.
3.Operation knives’ length come in two specifications,that is 600 and 700mm.
4.Optional part is the safe cover for the knives.
Main Technical Parameter
| Model | Q08-100 | Q08-120 | Q08-160A | Q08-160B |
| Max shearing force | 1000 KN | 1200 KN | 1600 KN | 1600 KN |
| Max press force | 120 KN | 160 KN | 200 KN | 200 KN |
| Max knife opening | 320 mm | 320 mm | 360 mm | 380 mm |
| Knife length | 600 mm | 600 mm | 600 mm | 700 mm |
| Shearing speed | 12-20 times/min | 12-20times/min | 11-20 times/min | 11-20 times/min |
| Power | 7.5 Kw | 11 Kw | 15 Kw | 15 Kw |
| Material size | 30×200φ /40 mm | 30×250 /φ45 mm | 30×320 /φ65 mm | 30×320/φ65 mm |
| Operation | Manual or auto | Manual or auto | Manual or auto | Manual or auto |
