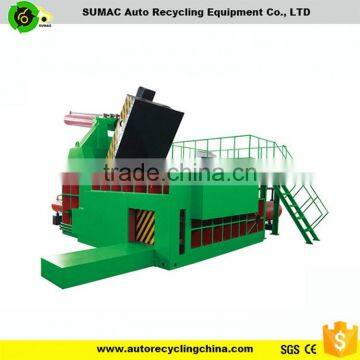

CE approved used car briquetting machine
This machine is used for cold pressing of each metal scraps, including scrap car, scrap metal materials, scrap steel, waste oil tank and disintegrated vehicle shell, etc. After cold pressing to blocks, it is convenient for storage and transportation or putting into furnace.
This machine is designed with quick unit that could improve work efficiency substantially.
Name | Unit | Number and model | ||||
|
| Cover cylinder | Side cylinder | Main cylinder | Baler cylinder | Side cylinder |
Normal Pressure | T | 169.4 | 338.8 | 400 | 180 | 120×2 |
Inner Dia of Cylinder | mm | Φ300 | Φ300×2 | Φ450 | Φ125
| Φ125×2 |
Dia of Piston | mm | Φ180 | Φ180 | Φ220 | Φ70 | Φ70 |
Distance | mm | 2550 | 1950 | 1900 | 750 | 100 |
Max Pressure | Mpa | 25 | 25 | 25 | 25 | 25 |
Density of Baler | About 2.0 t/m3 (thin materials) | |||||
Motor | 1pc | 45KW | ||||
Oil Pump | 1pc | 250YCY14-1B | ||||
Time of Single Cycle | Second | About 240S | ||||
Size of Charging box | Mm | 2500×1600×1200 | ||||
Size of baler | Mm | 600×600×600~1000 | ||||
Weight of baler | KG | 600--800 | ||||
Weight of machine | Ton | About 50 | ||||
Type of produced pack |
| Side Push-out | ||||
Operation |
| PLC control system,automatic cycle, remote control available | ||||
Capacity | T/shift | 60-80ton/shift | ||||
1. Main Technical Data
Remarks: Main cylinder, side cylinder, cover cylinder of this machine have the differential quick device, the productivity is twice as much as the same model machine. Electric energy is saved 50%.
2. Containers
One 40’ Frame Container and One 20’ Container
3. Guarantee
One year from Shipping Date.
