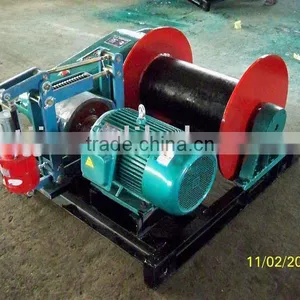

Electric Windlass, Winding Engine,cable Winch

Model

JK0.5

JK1

JK1.6

JK2

Steel Wire Rope Rated Pull (KN)

5

10

16

20

Gear Ratio I

36.6

40.59

54.38

54.9

Winding Drum

Dia and Length (mm)

Φ165*350

Φ165*400

Φ219*460

Φ219*535

Rotation Speed (r/mim)

38.8

35.47

26.48

26.23

Rope Length (m)

100

160

170

180

Steel Wire Rope

Rope Diameter (mm)

7.7

9.3

11

12.5

Strand

6*19

6*19

6*19

6*19

Rope Speed (m/min)

22

22

22

22

Electric Motor

Model

Y100L₁-4

Y132S-4

Y132M-4

Y160M-4

Rated AC Voltage (V)

380

380

380

380

Rated Power (KW)

2.2

5.5

7.5

11

Rated Speed ( r/min)

1420

1440

1440

1460

Brake Model

TJ₂-100

TJ₂-150

TJ₂-200

TJ₂-200

Dimension (L*W*H) (mm)

710*620*340

750*740*400

890*870*520

980*880*530

Total Weight (Kg)

130

225

335

450
