Specfication:Trapezoid cable drum jack
1.15 years experience
2.Best quality
3.Used to support the cable drum
Hydraulic Cable drum jacks , cable jacks, cable drum stands, we are the biggest factory of 5Ton 8Ton and 10Ton cable jacks .

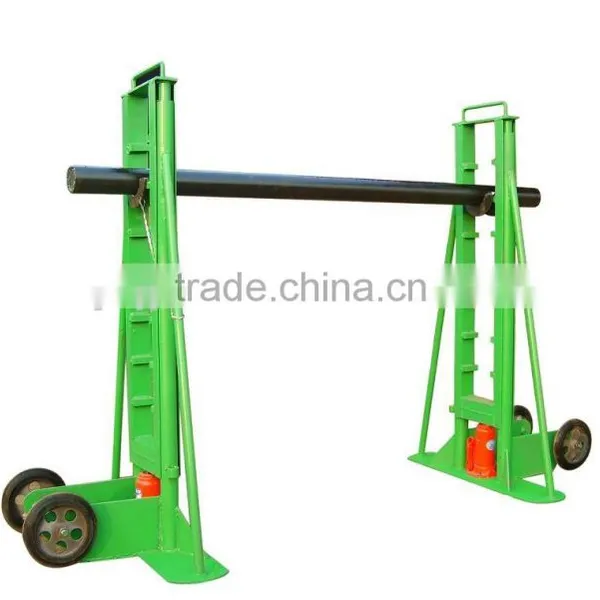

Trapezoidal cable jacks and hydraulic cable drum jack
Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Product No.Rated load,Applicable drum diameter, Applicable drum width ,Axle bar diameter, Dead weight
Model |
Rate load |
Cable drum Dia |
Cable drum width |
Axle bar dia |
Weight(kg) |
YT011-3T |
3T |
700mm-2100mm |
Below 1500mm |
75mm |
90 |
YT011-5T |
5T |
700mm-2400mm |
Below 1700mm |
90mm |
130 |
YT011-10T |
10T |
700mm-3200mm |
Below 1800mm |
120mm |
210 |
Product No.: YT013 Product name: Trapezoidal cable drum jack (mechanical type)
Application: applied in the supporting of cable drum when laying cable. Manual-drive and mechanical jacking equipment saves time and labor a lot. With trapezoidal structure, it can be applied in different kinds of reel specification. Trundles installed on the bottom make it easy to move.
Product No. Rated load,Applicable drum diameter, Applicable drum width,Axle bar diameter, Dead weight
Model |
Rate load |
Cable drum Dia |
Cable drum width |
Axle bar dia |
Weight(kg) |
YT011-3T |
3T |
700mm-2100mm |
Below 1500mm |
75mm |
90 |
YT011-5T |
5T |
700mm-2400mm |
Below 1700mm |
90mm |
130 |
YT011-10T |
10T |
700mm-3200mm |
Below 1800mm |
120mm |
210 |
Product No.: YT012 Product name: Trapezoidal and hydraulic cable drum jack
Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Product No. Rated load, Applicable drum diameter, Applicable drum width,Axle bar diameter,Dead weight
Model |
Rate load |
Cable drum Dia |
Cable drum width |
Axle bar dia |
Weight(kg) |
YT012-3T |
3T |
700mm-2100mm |
Below 1500mm |
75mm |
110 |
YT012-5T |
5T |
700mm-2400mm |
Below 1700mm |
90mm |
150 |
YT012-10T |
10T |
700mm-3200mm |
Below 1800mm |
120mm |
220 |
Product No.:CDJ-10 Product name: Hydraulic cable drum jack
Application: applied in the pay-off of outdoor underground cable, high altitude line stringing, indoor switchboard wiring, etc. With fixed seat during operation, the cable drum will not swing back and forth. Support high by oil pressure, simple operation, can be lifted quickly and easily.
Product No. Rated load, Applicable drum diameter, Applicable drum width,Axle bar diameter,Dead weight
