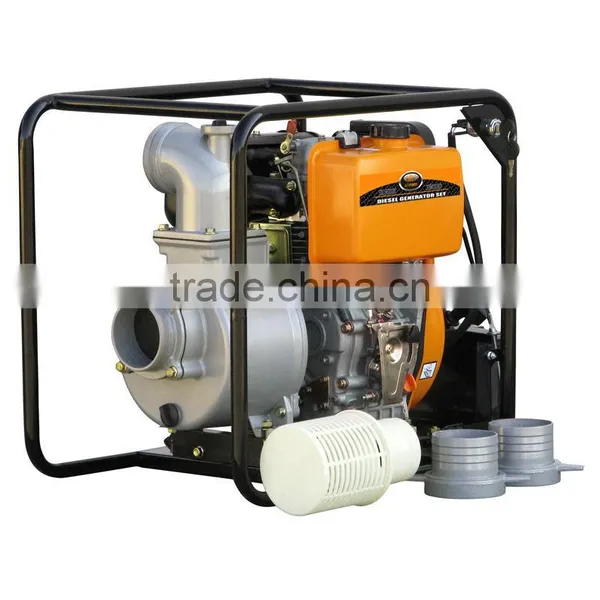

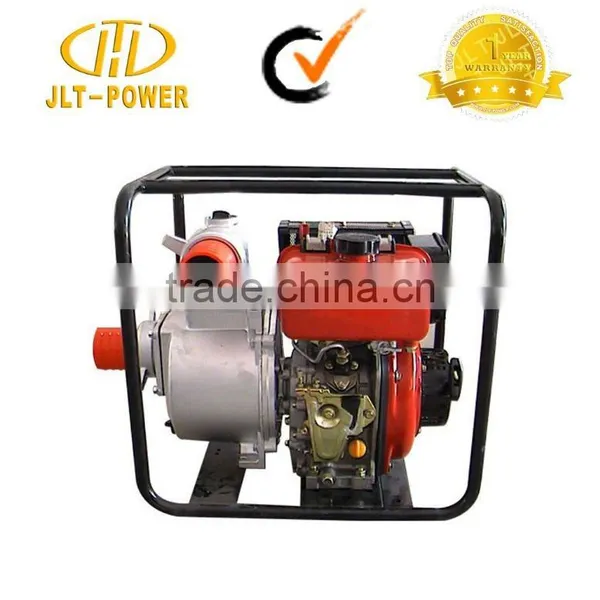

3inch High Quality Diesel Engine Driven Diesel Water Pump

Specifications

3inch High quality Diesel Engine Driven diesel water pump

• Diesel water pump,garden pump,pump,
• Powered by air-cooled, 4-stroke diesel engine
• Large volume water discharge
• Highly effective mechanical seal
• Compact and light weight structure
• One year warranty
• high quality
• Aluminum alloy high pressure casting
• Full frame protection offers exceptional performance even in the toughest conditions
• Large fuel tank ensures hours of continuous running
• Pump head as same as HONDA pumps
• 5% easy broken spare parts will be provided to the buyer for free for container order

Specifications:

• PUMP Model	DWP50	DWP80	DWP100
  Suction port dia. (mm)	50 (2 in)	80 (3 in)	100 (4 in)
  Max. Capacity [m3/hr]	36	60	96
  Max. Head (m)	26	25	31
  Self-priming time(s/4m)	80	120	180
  Max. Sucition Head (m)	8	8	8
  Engine Model	JD170	JD178	JD186
  Engine type	Single-cylinder, 4-stroke, air-cooled diesel engine
  Cont. Output(hp)/(rpm)	4.0	6.0	11.0
  Displacement (cc)	219	306	418
  Fuel tank capacity (L)	3.5	3.5	3.5
  Net weight (kg)	42	50	70
  Dimensions (LxWxH)	510*425*555	560*490*595	660*510*635
  20ft Container QTY	236	132	114
  40HQ Container QTY	492	384	320

 Accessories for each water pumps:

• 	Engine tool kit (1set)
  Standard Accessories	Starter (1pc)
  free	Hose coupling (2pcs)
  	Hose band (3pcs)

We have own factory, then supply lower price and best quality product.

If you have need more information about this series. Please don't hesitable to contact with us.
