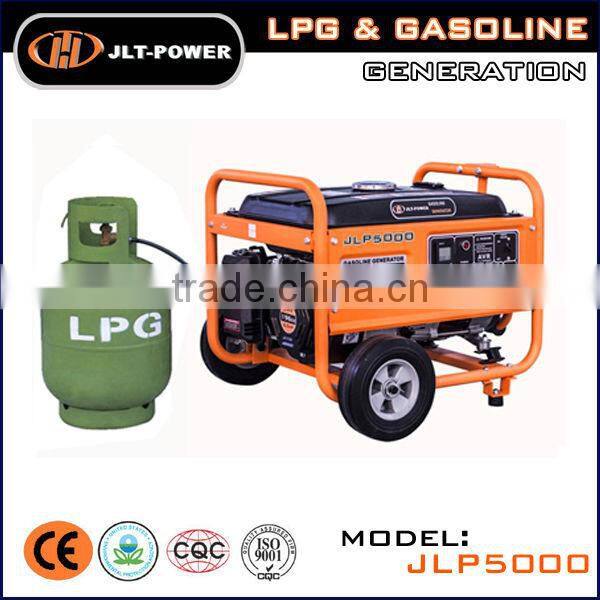

LPG kit for gas generators price

Specifications

Gas generator
1.Curcuit breaker
2.AVR alternator
3One year warranty
4.ISO CE GS SON Certification



Features:

1. Overload and low oil warning for safe running.

2. AVR breaker provides stable voltage and current.

3. Large-capacity mufflers minimize running noise.

4. Efficiency fuel consumption for more than 10 hours continuous running.

5. Portable, easy to fit wheels and handle.

6. Optional electric start available.



Optional:

1. Electric Start with Battery.

2. Wheels and handles.

3. Sticker or Carton box design.

4. LPG or Natural Gasket.

5. Any colors of the generator is accepted.

6. Spare parts.



Specification:



Genset Model	JLP7000				JLP8000
Genset Type	Brushless,Self Exciting,2 Pole,Single Phase
AC Frequency (HZ)	50				50
AC Voltage (V)	220				220
Cont.AC Output (KW)	5.0				6.0
Max.AC Output (KW)	5.5				6.5
Gross Weight(kg)	96				98
Dimension (mm)	700 x 530 x 560				700 x 530 x 560
Engine
Engine Type	JP188F				JP190F
Power Type	Single Cylinder, 4-stroke, OHV, Forced Air-cooled
Bore×Stroke (mm)	88X64				90X66
Displacement (CC)	389				420
Ignition System	T.C.I.				T.C.I.
Starting Mode	Recoil Starter (standard)
	Recoil/Electric Starter (optional)
Sound level @ 7 meter Full Load (dB)	70				70
Lube Oil Capacity (L)	1.5				1.5
Lube Oil Type	SAE10W-30,4°C				SAE10W-30,4°C
Fuel Consumption (Rated Power)	LPG: 0.36 m3/kW · hr				LPG: 0.36 m3/kW · hr
	Gasoline :0.37kg/kw . hr				Gasoline :0.37kg/kw . hr
Alternator
Generator Model	Single-Phase Synchronous Brush Alternator
Power Factor (cosφ)	1				1
Excitation	Self-excitation				Self-excitation
DC Output	12V/8.3A				12V/8.3A
Voltage Adjustment System	Automatic Voltage Regulator				Automatic Voltage Regulator
Generator	Revolving Field				Revolving Field
Adjustment Rate of Steady Voltage	≤±5%				≤±5%
Adjustment Rate of Steady Frequency	≤±5%				≤±5%
Insulation Resistance (Cold State)	≥200MΩ				≥200MΩ
Connecting Mode	Power Shaft Rigid Coupling				Power Shaft Rigid Coupling





















Company Informaion :

Founded in 2000, JingLongTeng Power Engine&Machinery Co., Ltd is a privately held company that brings high-quality power products to the international market.

Our products have been delivered to more than 100 countries and supported more than 150 distributors around the world.
