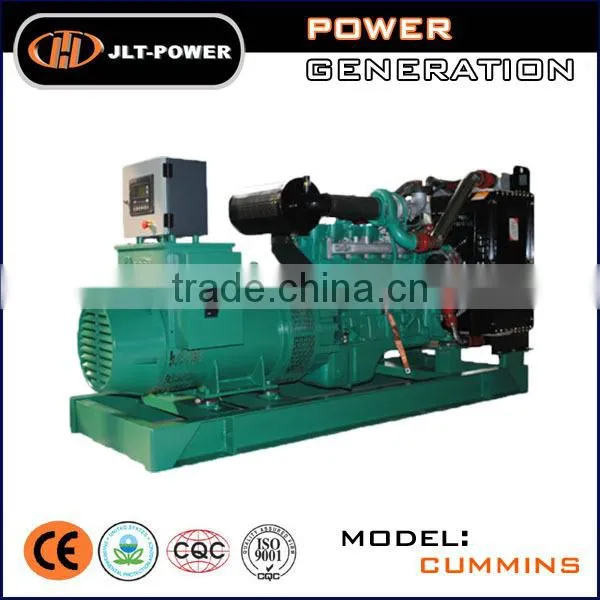

75kva/150kva/500kva Generator

75kva/150kva/500kva Generator thumbnail-1
75kva/150kva/500kva Generator photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
JLT
Model Number:
C20-1000
Contact Supplier Request Quote Chat Now
Fuzhou Jinlongteng Power Engine & Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name JLT
Model Number C20-1000
Output Type AC Three Phase
Speed 1500/1800
Frequency 50/60HZ
Rated Power 20kw to 1000kw
Rated Voltage 220/380V,230/400V,110/208V,127/220
Rated Current Depend on the power

Specifications

diesel power genrator
20kw-1000kw
Open or silent type
One year warranty

 75kva/150kva/500kva generator



diesel power generator



Genset Prime Power Standby Power Engine Model Fuel Consumption Dimension Weight
Model KW/KVA KW/KVA ≤g/kw.h mm Kg
C20 20/25 22/27.5 4B3.9-G2 228 1608*730*1184 710
C30 30/38 33/41 4BT3.9-G2 214 1670*730*1232 770
C40 40/50 44/55 4BTA3.9-G2 216 1670*730*1232 800
C45 45/56 50/62 4BTA3.9-G2 216 1705*730*1310 830
C80 80/100 88/110 6BT5.9-G2 214 2150*830*1380 1400
C100 100/125 110/137 6BTAA5.9-G2 211 2230*850*1450 1480
C120 120/150 132/165 6CTA8.3-G2 210 2450*860*1600 1780
C145 145/180 160/192 6CTA8.3-G2 210 2450*860*1600 1800
C160 160/200 176/220 6CTAA8.3-G2 205 2470*940*1600 1950
C200 200/250 220/275 6LTAA8.9-G2 197 2570*950*1600 2150
C200 200/250 220/275 NT855-GA 192 3000*1050*1750 3000
C200 200/250 220/275 MTA11-G2A 200 3000*1050*1750 3000
C220 220/275 250/310 NTA855-G1A 195 3000*1050*1750 3100
C250 250/310 275/344 MTAA11-G3 188 3000*1050*1750 3220
C275 275/344 300/375 NTA855-G2A 200 3000*1050*1750 3300
C300 300/375 330/415 NTA855-G7A 205 3100*1150*1700 3450
C360 360/450 396/495 KTA 19-G3 207 3200*1400*1900 4300
C400 400/500 440/550 KTA 19-G4 206 3300*1400*2000 4450
C500 500/625 550/688 KTA A19-G6A 206 3500*1920*2250 4700
C600 600/750 660/825 KTA 38-G2 216 4300*1750*2400 6750
C720 720/900 800/1000 KTA 38-G2A 203 4300*1750*2400 6950
C800 800/1000 880/1100 KTA 38-G5 205 4460*1900*2400 8300
C1000 1000/1250 1100/1375 KTA 50-G3 213 5560*2050*2310 10900





Genset:
1)Power range: 8kw-1000kw
2)110V-480V,50HZ/60HZ
3)phase,4wire,12leads
4)Single/three phase
5)water cooled/air cooled
6)Silent/weather proof/trailer type
7)Fuel tank for at least 8H running
8)Two 12V batteries
9)24V charge alternator
10)50 degree C Radiator

Engine:
1)Engine:Deutz,Volvo,Dawoo,MTU and Chinese famous

water-cooled diesel engines
2)50HZ or 60HZ
3)2,3,4,6,12 cylinders
4)low fuel consumption
5)Rated power factor:0.8(lagging)
6)102/120,114/135,140/152,159/159mm bore/stroke
7)standard starting method:24V electric starting
8)cooling method: closed water-cooled
9)lubricating methond:colsed lubricating

Alternator:
1)Alternator:Stamford/OEM Stamford/other blands brushless alternator
2)CLASS H insulation
3)IP23 protection
4)self-regulator by AVR
5)50hz /1500rpm or 60hz/1800rpm
6)110-480V,3 phase,4wire,pf.0.8
7)electric system:24V/12V
8)wave distort:less then 10%


Control panel:
1)Automatic control panel(AMF),LED display.
2)Four protection systems
3)Emergency stop
4)DSE/COMAP/SMARTGEN/HARSON series controller



Optional:
1)Trailer type
2)Soundproof / water proof
3)ATS(automatic transfer switch)
4)water Heater
5)Parallel system
6)Remote system



 75kva/150kva/500kva generator
