Type: SMD LED
Model Number: YK3030Y
Chip Material: InGaN
Emitting Color: Yellow
Luminous Flux(lm): 10-15lm
Optical Attenuation(%): 0.001
Power: 0.5w
Viewing Angle(°): 120 Degree
Color Temperature: Y:590-595nm
Operating Temperature(℃): -20 - 85
Storage Temperature(℃): -20 - 80
Place of Origin: Guangdong, China (Mainland)
Brand Name: Yuanke
Certification: RoHS
Chip Brand: TaiWan epistar Chip, Sanan Chip,EPILEDS Chip
Voltage: 1.9-2.3V
Warranty: 2 years
Lifespan: 50000H-100000H

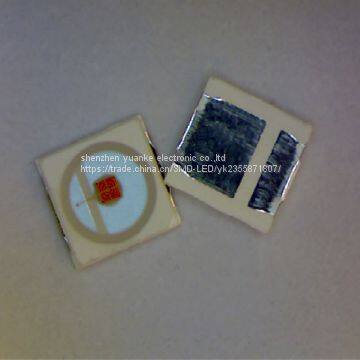

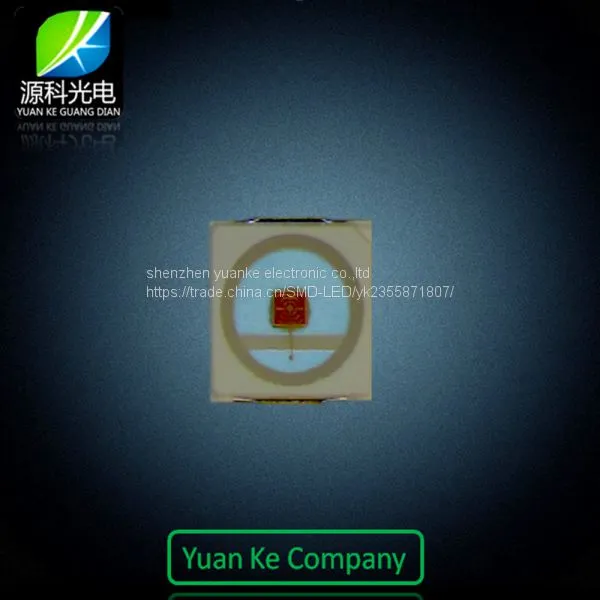

Product name: 0.5W 3030 3535 2835 10-15LM Yellow led smd datasheet specifications
Forward Current: 150mA
Color: yellow
material: gold and copper
emitting light color: yellow
Factory price 0.5W 3030 3535 2835 10-15LM Yellow led smd datasheet specifications
Item Name
Factory price 0.5W 3030 3535 2835 10-15LM Yellow led smd datasheet specifications Color Temperature
590-595nm Luminous Flux
10-15lm
Forward Current
150mA
Forward Voltage
1.9-2.4V
Viewing Angle
120 degree
Operating Temperature
-20-+80
Storage Temperature
-20-+85
Power
0.5W
Other Color Temperature
2000K,4000K,5000K,6000-100000K,red,blue etc.
Warranty
2 years
Feature
Unleaded, Good Quality
Other Models
2835,3014,3020,3030,3528,4014,5050,5630,5054 etc.
- Packaging & Shipping
- Application area
- Color
- Production process
- Factory introduction
- Certificate display
- FAQ
Factory price 0.5W 3030 3535 2835 10-15LM Yellow led smd datasheet specifications
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.We can also make samples according to your requirements.
Q2: What’s the delivery time?
A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at different time.
Q3:What's your warranty terms?
A: The warranty for all our Led products is 2 years.
Q4: How does your factory do regarding quality control?
A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
