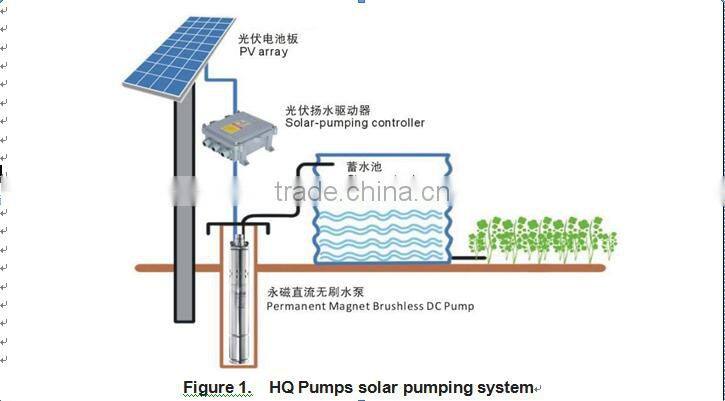

HQ solar pumping system serves to provide water in remote applications where electrical grid power is either unreliable or unavailable. HQ solar pump controller can direct use the DC power from PV array, and drive the brushless DC pumps. In sunny days, the pumping system can continuously pump water. The system without batteries and other energy storage devices, it is recommended to take water pumped to a reservoir for later use and water sources are those natural or special such as river, lake, well or waterway, etc. A float switch can be installed in the water tower to control the pump operation. And install a low-level probe in well to detect the well water so that when the water shortage pump is stopped. Figure 1 shows a typical diagram of the pumping system. The major parts and components in the system.
HQ solar pumping system is designed which consists of:
l PV Array
l Power Pump Controller
l Solar Power Submersible Pump
l Water Source Level Switches
l Tank Level Switches
Model |
Power (W) |
Voltage (VDC) |
Max Flow (m3/h) |
Max Head (M) |
Outlet (in) |
Outline(in) |

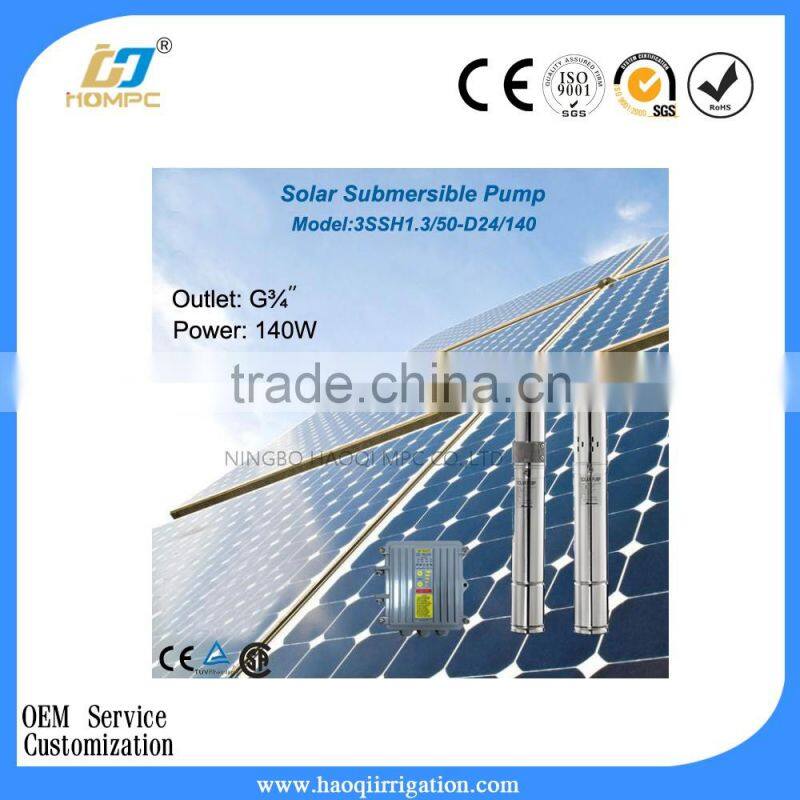

3SSH1.3/50-D24/140 |
140 |
24 |
1.3 |
50 |
0.75 |
3 |
3SSH1.6/80-D36/400 |
400 |
36 |
1.6 |
80 |
0.75 |
3 |
3SSH1.8/100-D36/500 |
500 |
36 |
1.8 |
100 |
0.75 |
3 |
3SSH1.8/120-D48/600 |
600 |
48 |
1.8 |
120 |
0.75 |
3 |
3SSH2.2/140-D72/900 |
900 |
72 |
2.2 |
140 |
0.75 |
3 |
3,The HQ-197K1500W-24 Controller General Information
Features
The HQ-197K1500W-24 solar pump controller is designed with the high standard of reliability expected of products. The controller attempts to drive the pump and motor to deliver water even under adverse conditions, reducing output as necessary to protect the system components from damage, and only shutting down in extreme cases. Full operation is restored automatically whenever abnormal conditions subside.
Inspection
Before you begin, receive and inspect the HQ-197K1500W-24 solar pump controller unit. Verify that the part number is correct and that no damage has occurred during transit.
NOTE: HQ-197K1500W-24 solar pump controller is one component of a HQ-197K1500W-24 solar pumping
system which has other two optional components, solar array and Brushless DC Motor pump.
Protection Features
Electronic monitoring gives the controller the capability to monitor the system and automatically shut down in the event of:
- • Dry well conditions – with low level switch
- • Bound pump – with auto-reversing torque.
- • High Voltage Surge
- • Low Input Voltage
- • Open motor circuit
- • Short circuit
- • Over heat
NOTE: This controller provides motor overload protection by preventing motor current from exceeding rating current and by limiting the duty cycle in the event of low water level. This controller does not provide over temperature sensing of the motor.
System Diagnostics
The HQ-197K1500W-24 solar pump controller continuously monitors system performance and detects a variety of abnormal conditions. In many cases, the controller will compensate as needed to maintain continuous system operation; however, if there is high risk of equipment damage, the controller will protect the system.the fault condition. If possible, the controller will try to restart itself when the fault condition subsides.
Motor Soft-Start
Normally, when there is a demand for water and power is available, the HQ-197K1500W-24
solar pump controller will be operating. Whenever the HQ-197K1500W-24 solar pump controller detects a need for water, the controller always“ramps up”the motor speed while gradually increasing motor voltage, resulting in a cooler motor and lower start-up current compared to conventional water systems. Due to the
controller’s soft-start feature this will not harm the motor.
Over Temperature Foldback
The HQ-197K1500W-24 solar pump controller is designed for full power operation from a solar array in ambient temperatures up to 45℃. In excess of 45℃ temperature conditions,the controller will reduce output power in an attempt to avoid shutdown. Full pump output is restored when the controller temperature cools to a safe level.
Level Control Switch
The HQ-197K1500W-24 solar pump controller can access two water level switch detects remotely control the pump automatically. Level switch for HQ-197K1500W-24 solar pump controller is optional, not mandatory.
Warranty
1. More than 30000 hour service life.2. 36 months warranty.
