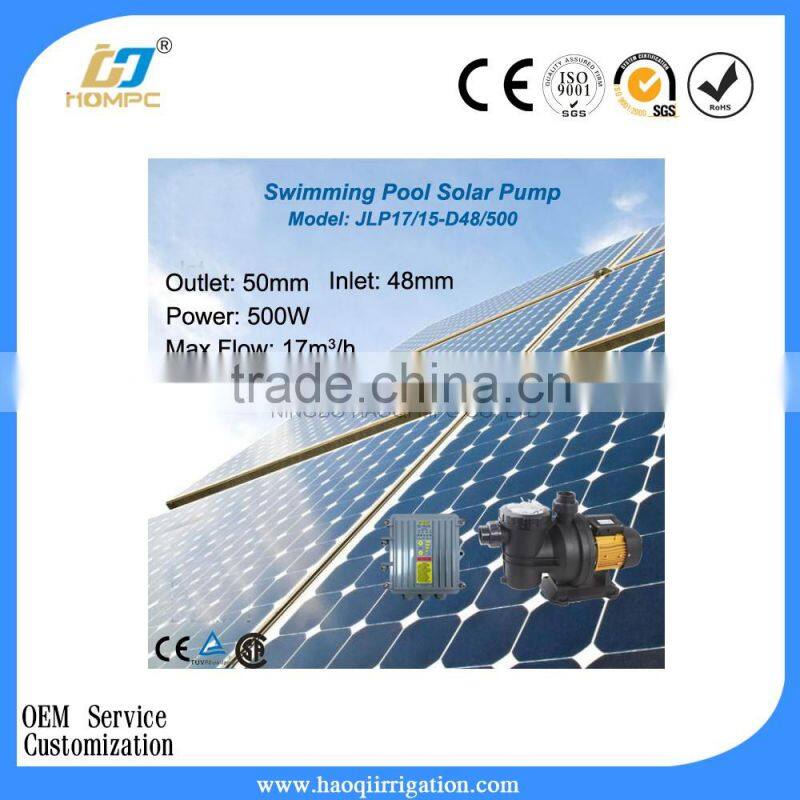

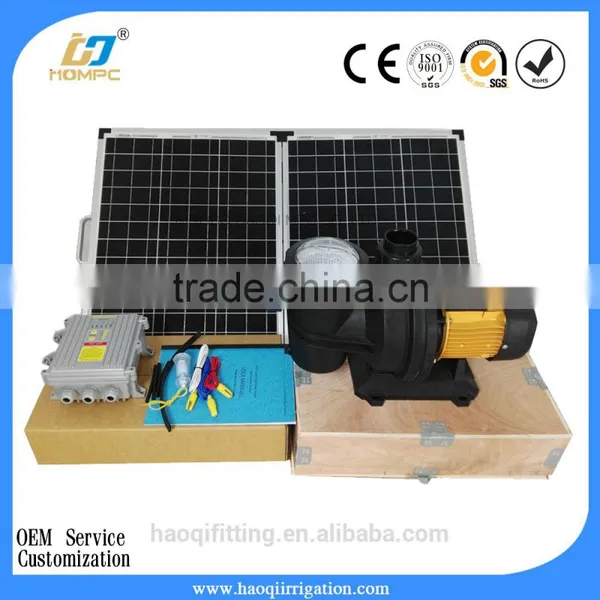

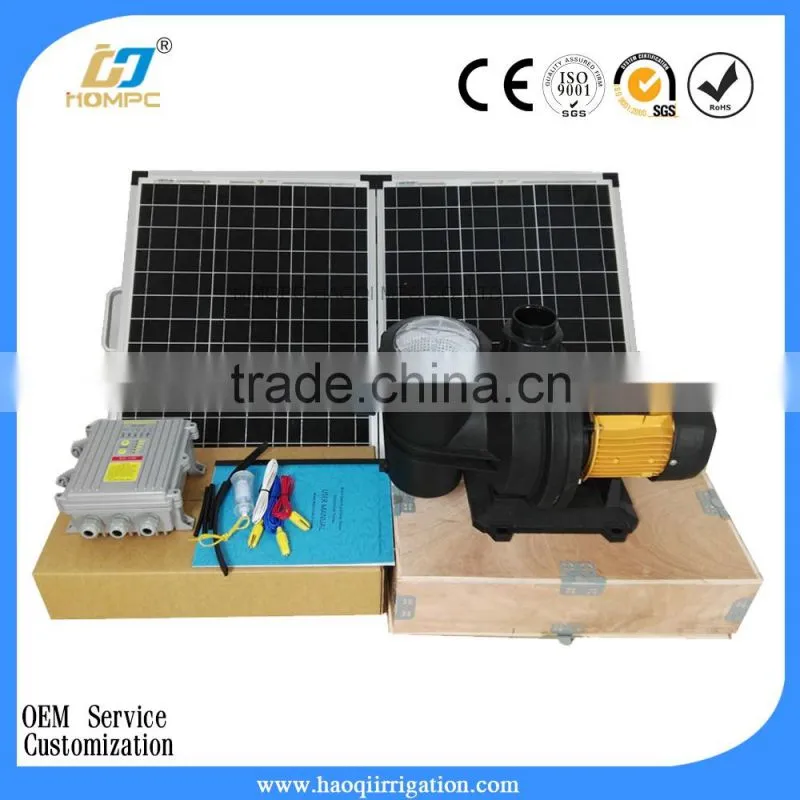

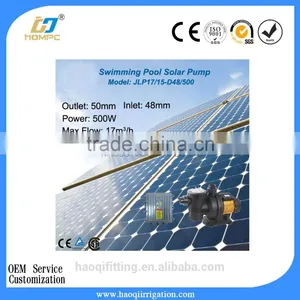

DC 48V 500W Swimming Pool Pump Solar Water Pump System
US$ 385 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunjolly
Model Number:
JLP17/15-D48/500
Specification:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
900W-1200W 21L Solar Swimming Pool PumpUS$ 500 - 550MOQ: 1 Piece -
1500W 31L Solar Power Swimming Pool PumpUS$ 500 - 550MOQ: 1 Piece
-
300W-1500W Solar Powered Brushless DC Pump, Stainless Steel Deep Well Submersible Water PumpUS$ 600 - 650MOQ: 1 Piece
-
3 Inch Helical Rotor Solar Power Submersible PumpUS$ 330 - 350MOQ: 1 Piece
-
500W-1500W Solar Deep Well Water Pump, Submersible Pump 36V-220V MPPTUS$ 380 - 400MOQ: 1 Piece
Brand Name
Sunjolly
Model Number
JLP17/15-D48/500
Specification
Normal
Application
Home
Output Voltage (V)
DC48V
Load Power (W)
500w
Solar Power (W)
900w
Work Time (h)
8-10h
Product Description
The HQJLP-17/15-D48/500 Description
2.1 Model Instruction
HQ |
P |
17 |
15 |
-D48 |
/500 |
1 |
2 |
3 |
4 |
5 |
6 |
1 |
Made in HQ |
2 |
Pool Pumps |
3 |
MAX Flow |
4 |
MAX Head |
5 |
Rate Voltage |
6 |
Pump Power |
2.2 Material of Parts
Parts of Pump |
Description of Material |
Motor |
Permanent Magnet Brushless DC Motor (Without Hall) |

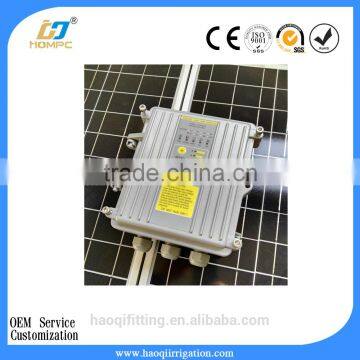

Controller |
32bit MCU / FOC / Sine Wave Current / MPPT |
Controller Shell |
Die-cast Aluminum(IP67) |
Outlet |
Plastic |

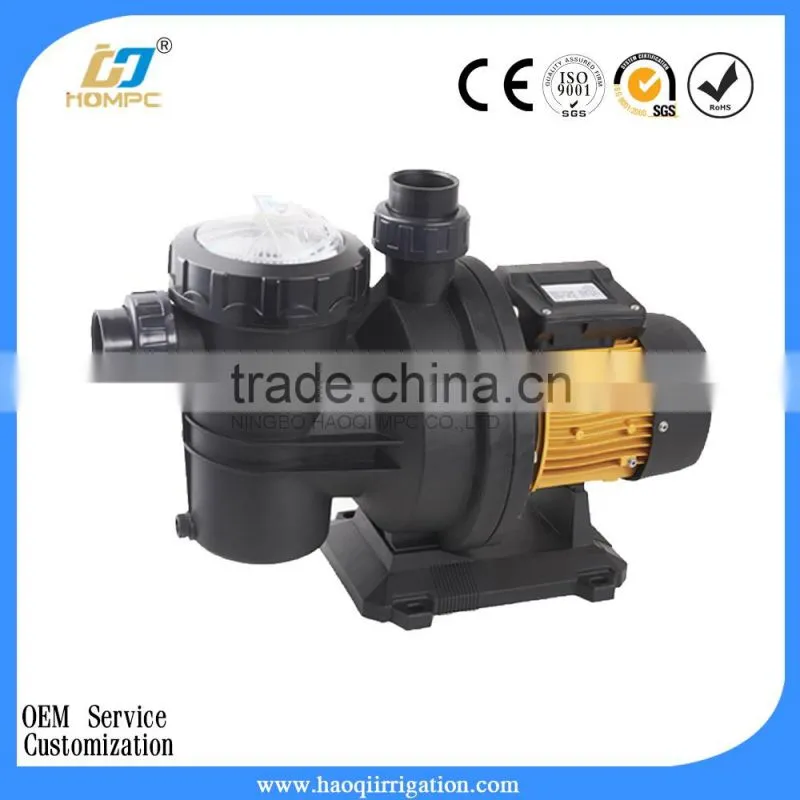

Pump Body |
Plastic |
Motor Body |
Die-cast Aluminium |
Bear |
NSK |
Impeller |
Plastic |
Screw |
316 Stainless Steel |
Cable |
3 Meters / Three-core copper cable /2.0mm3 |
2.3 Performance Chart
|
Item |
Parameter Values |
1. |
Rate Voltage |
48VDC |
2. |
Rate Power |
500W |
3. |
Max Flow |
17m3/h |
4. |
Max Head |
15m |
Model |
Flow (m3/h) |
0 |
3.5 |
7.0 |
10.5 |
14 |
17.5 |
JLP-17/15-D48/500 |
Head (m) |
17 |
15 |
12 |
7 |
5 |
2 |
Attention:
1. We test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to your requirement.
2. We can be your OEM manufacturer with your authorization of brand.
3.Focus on middle and high-end market, we never seize market by using inferior material.
4.Pumps of different voltage, power, flow and head can be customized according to customers' requirements.
Warranty
1. More than 30000 hour service life.
2 36 months warranty.
