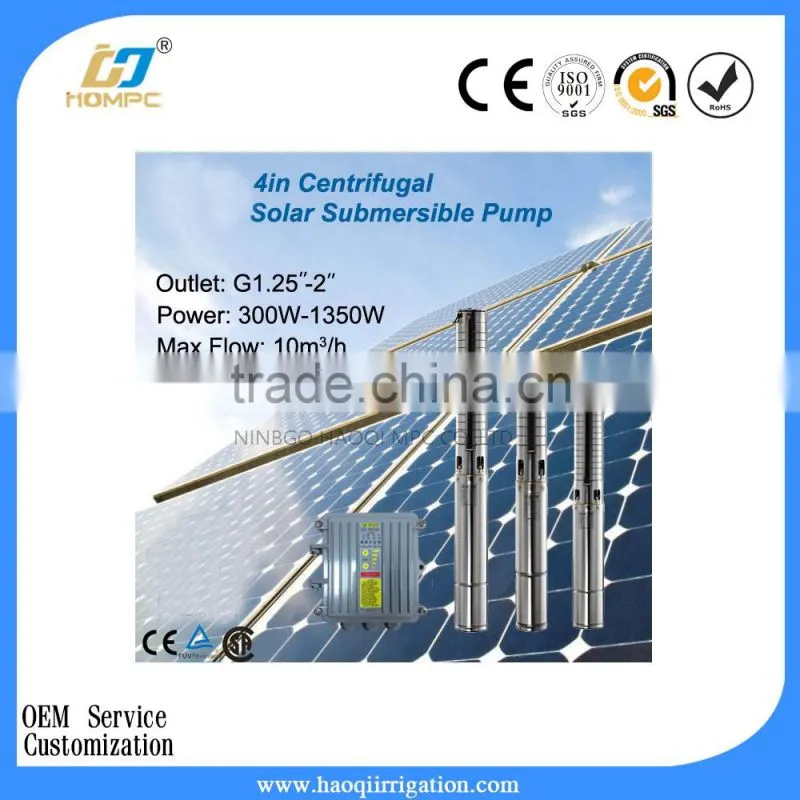

1000W 4 inch Centrifugal Solar power Submersible Pump
- 1000 Piece / Pieces per Month
- Ningbo
- Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | HAOQI | Model Number: | HQ-4SSC6.0/58-D60/750 |
Theory: | Centrifugal Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Other, 1000W | Standard or Nonstandard: | Standard | Fuel: | Other, Solar |
Pressure: | Low Pressure | Application: | Other, Agriculture |
Product Description
Model | Power (W) | Voltage (VDC) | Max Flow (m3/h) | Max Head (M) | Outlet (in) | Outline(in) |
4SSC4.2/25-D36/300 | 300 | 36 | 4.2 | 25 | 1.5 | 4 |
4SSC4.0/42-D36/500 | 500 | 36 | 4.0 | 42 | 1.25 | 4 |

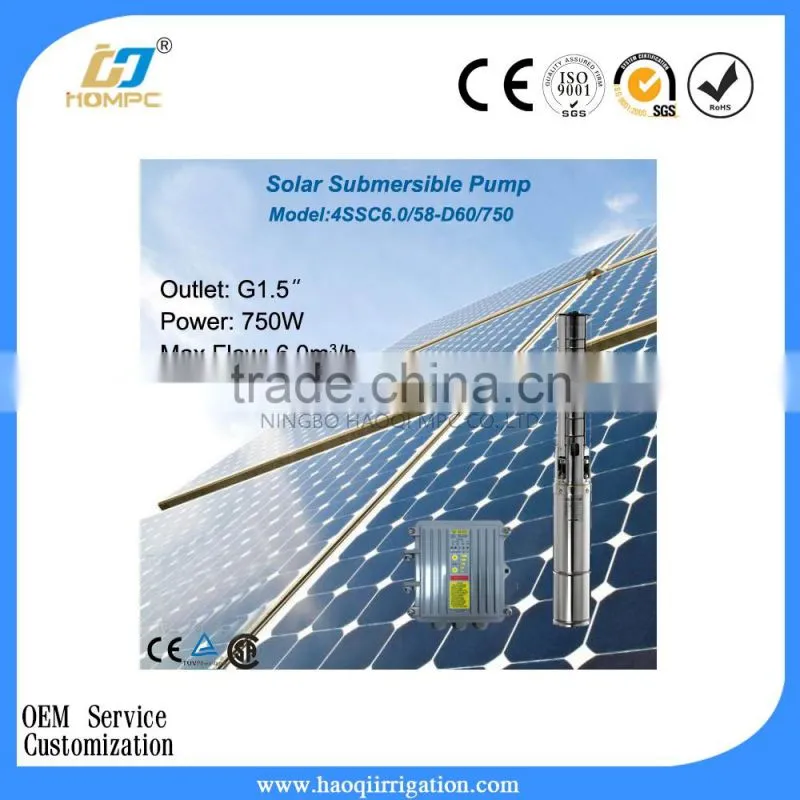

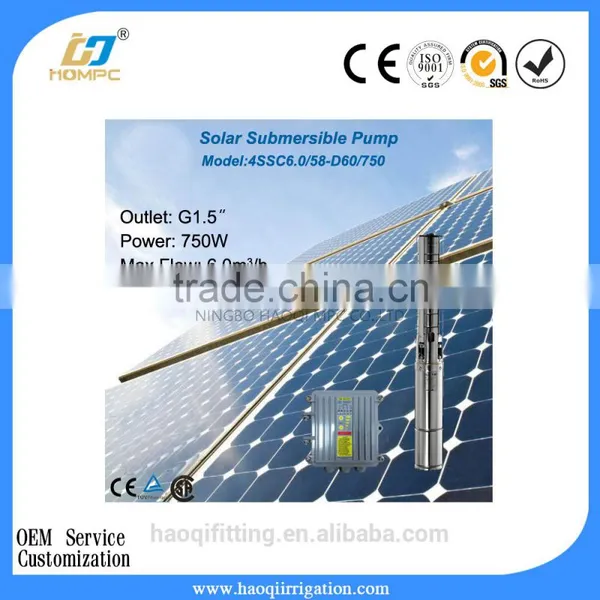

4SSC6.0/58-D60/750 | 750 | 60 | 6.0 | 58 | 1.5 | 4 |
4SSC3.6/138-D72/1000 | 1000 | 72 | 3.6 | 138 | 1.25 | 4 |
4SSC5.2/110-D72/1000 | 1000 | 72 | 5.2 | 110 | 1.5 | 4 |

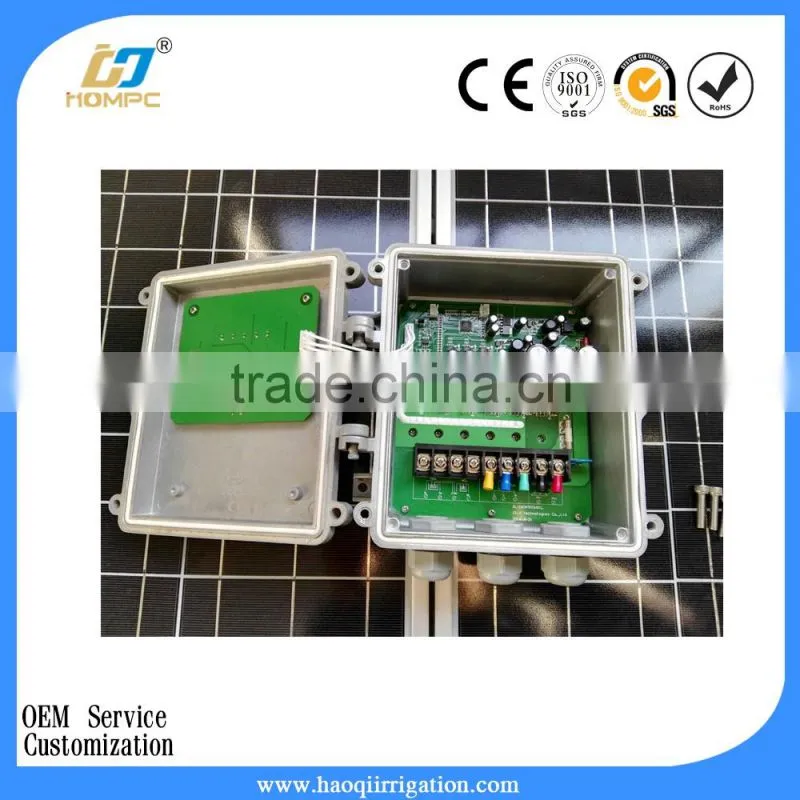

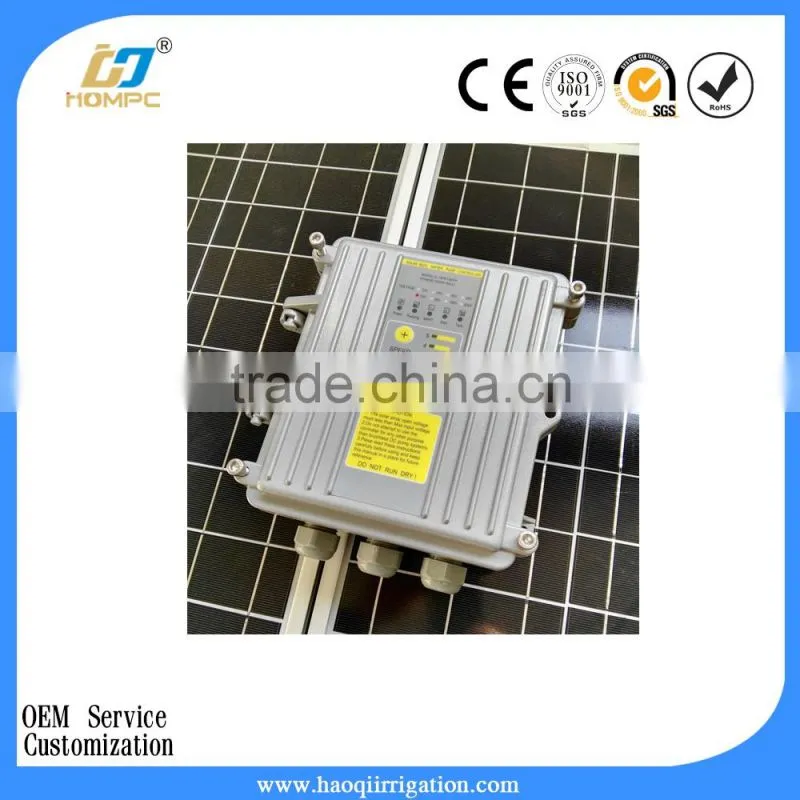

The HQ-197K1500W-24 Controller General Information
Features
The HQ-197K1500W-24 solar pump controller is designed with the high standard of reliability expected of products. The controller attempts to drive the pump and motor to deliver water even under adverse conditions, reducing output as necessary to protect the system components from damage, and only shutting down in extreme cases. Full operation is restored automatically whenever abnormal conditions subside.
Inspection
Before you begin, receive and inspect the HQ-197K1500W-24 solar pump controller unit. Verify that the part number is correct and that no damage has occurred during transit.
NOTE: HQ-197K1500W-24 solar pump controller is one component of a HQ-197K1500W-24 solar pumping
system which has other two optional components, solar array and Brushless DC Motor pump.
Protection Features
Electronic monitoring gives the controller the capability to monitor the system and automatically shut down in the event of:
- • Dry well conditions – with low level switch
- • Bound pump – with auto-reversing torque.
- • High Voltage Surge
- • Low Input Voltage
- • Open motor circuit
- • Short circuit
- • Over heat
NOTE: This controller provides motor overload protection by preventing motor current from exceeding rating current and by limiting the duty cycle in the event of low water level. This controller does not provide over temperature sensing of the motor.
System Diagnostics
The HQ-197K1500W-24 solar pump controller continuously monitors system performance and detects a variety of abnormal conditions. In many cases, the controller will compensate as needed to maintain continuous system operation; however, if there is high risk of equipment damage, the controller will protect the system.the fault condition. If possible, the controller will try to restart itself when the fault condition subsides.
Motor Soft-Start
Normally, when there is a demand for water and power is available, the HQ-197K1500W-24
solar pump controller will be operating. Whenever the HQ-197K1500W-24 solar pump controller detects a need for water, the controller always“ramps up”the motor speed while gradually increasing motor voltage, resulting in a cooler motor and lower start-up current compared to conventional water systems. Due to the
controller’s soft-start feature this will not harm the motor.
Over Temperature Foldback
The HQ-197K1500W-24 solar pump controller is designed for full power operation from a solar array in ambient temperatures up to 45℃. In excess of 45℃ temperature conditions,the controller will reduce output power in an attempt to avoid shutdown. Full pump output is restored when the controller temperature cools to
a safe level.
Level Control Switch
The HQ-197K1500W-24 solar pump controller can access two water level switch detects remotely control the pump automatically. Level switch for HQ-197K1500W-24 solar pump controller is optional, not mandatory.
Warranty
1. More than 30000 hour service life.
2. 36 months warranty.
2. Drinking water, rear livestock water,Village or family water supply
3. Garden/courtyard irrigation systems
4. Desertification control
5. Tank/Cistern filling
6. Water supply for bivouac or camping car
7. Solar water circulating system
8. Renewable energy projects
9. Fountains
10.Large scale watering system for commercial establishments
Structure:

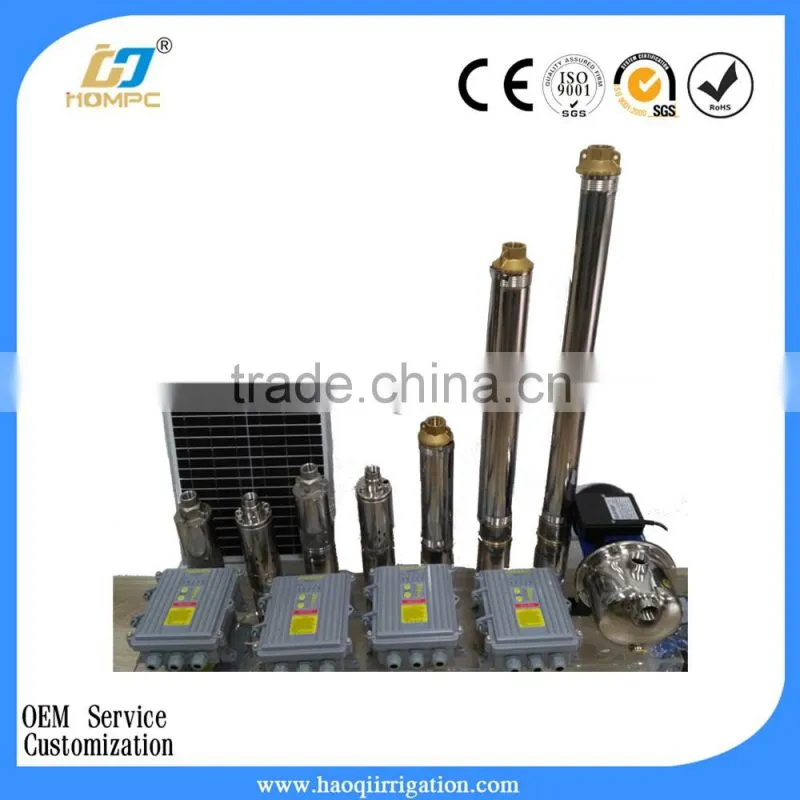

Solar Water Pump System Complete Set Includes:

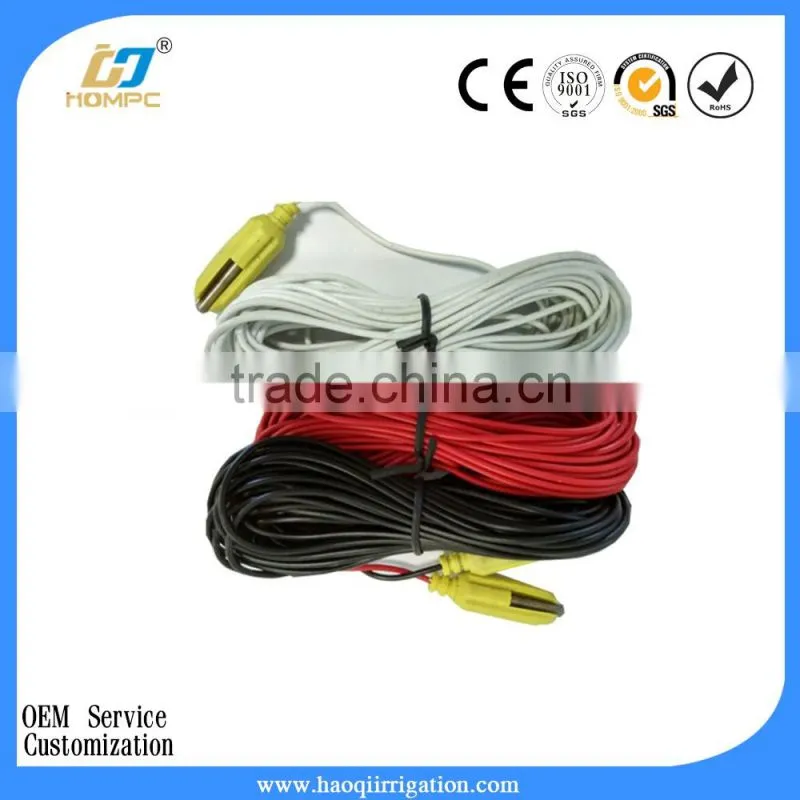

1. Solar pump with 3m cable, longer cable is available

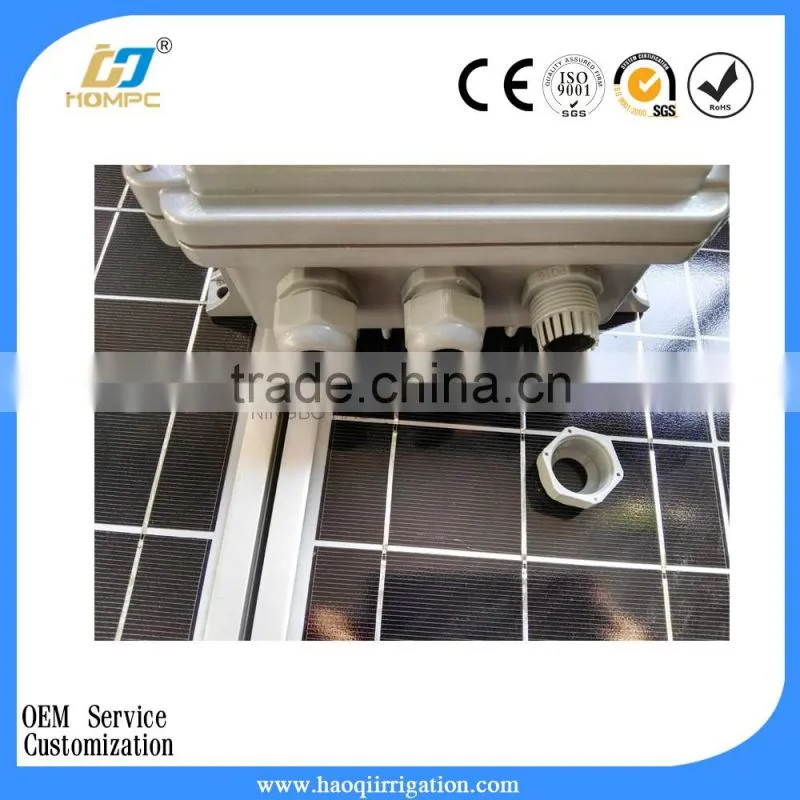

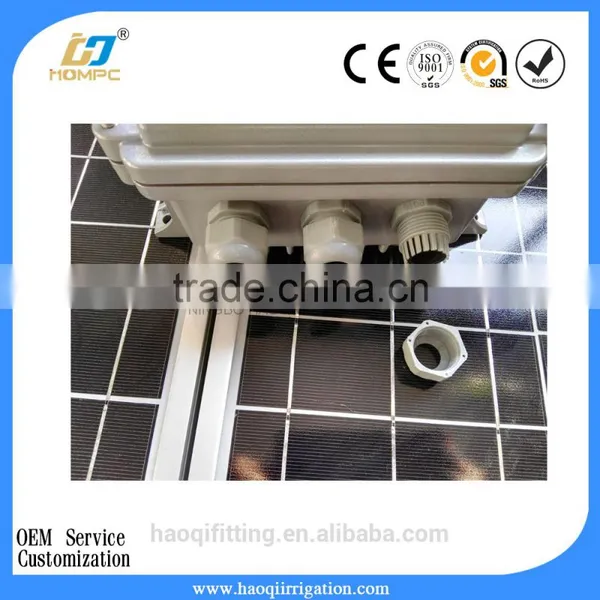

2. Sealed Controller

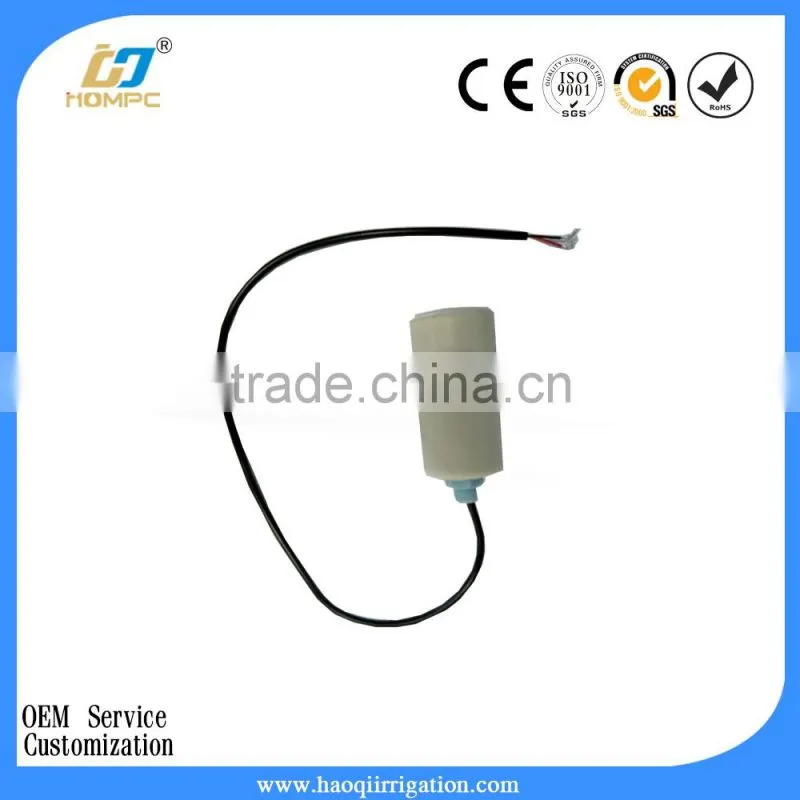

3. Water level sensor or float switch
4. Spare screw
5. Installation Manual
6.Not including solar panel
Attention:

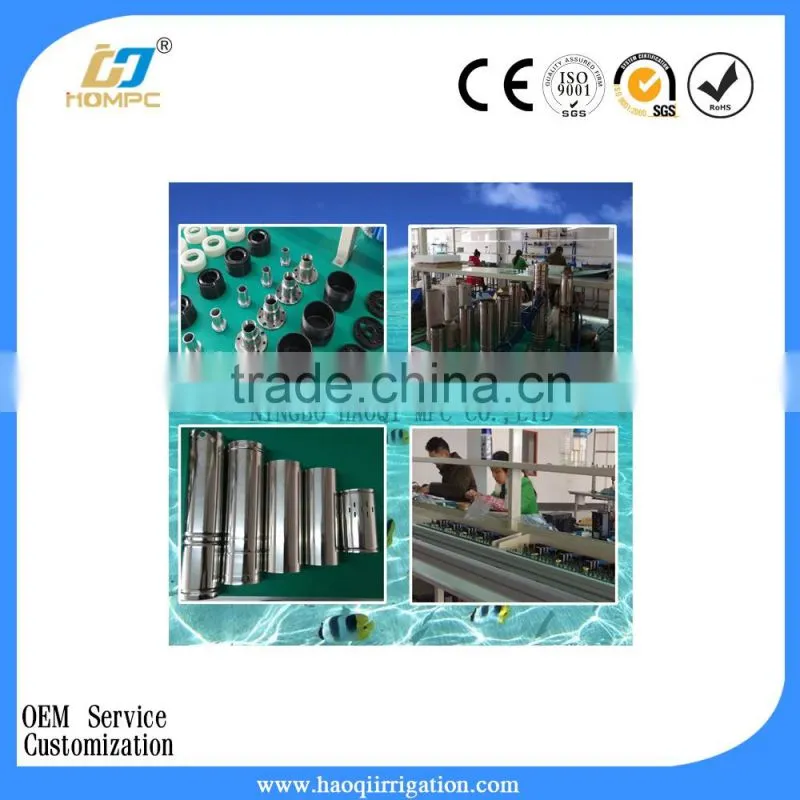

1. We test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to your requirement.
2. We can be your OEM manufacturer with your authorization of brand.
3.Focus on middle and high-end market, we never seize market by using inferior material.
4.Pumps of different voltage, power, flow and head can be customized according to customers' requirements.
