HQ Surface Pumps are high quality products designed for use in the agricultural irrigation.In most pool applications all of the filtration needs can be met directly from solar panels meaning no electricity costs and significant benefits to the environment.
The HQ pump uses a DC Sensorless Brushless Motor for high efficiency and reliability, it is connected to a solar generator via a controller. The controller monitors the system, controls the pump speed and optimizes the amount of water pumped based on the power available.

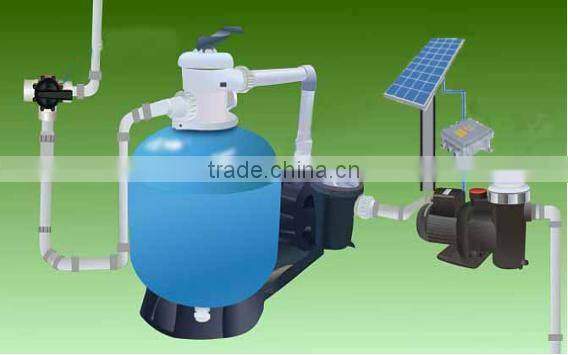

HQ solar pumping system is designed which consists of:
HQsolar pumping system is designed which consists of: | ||
|
|
|
PV Array |
|
l |
Solar Power Pump Controller |
|
l |
PM Brushless DC Pool Pump |
|
l |
Water Source Level Switches |

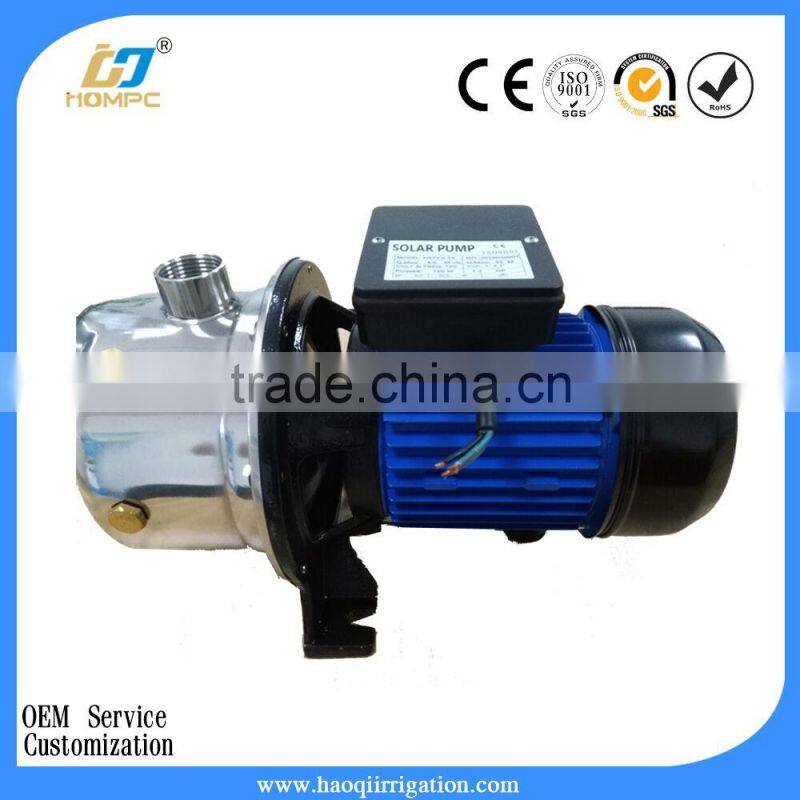

2, The JET3.0/55-D72/750 Description
2.1 Model Instruction
JET |
3.0 |
/55 |
-D72 |
/750 |
1 |
2 |
3 |
4 |
5 |
1 |
JET Pump |
2 |
Max Flow |
3 |
Max Head |
4 |
Rate Voltage |
5 |
Pump Power |
|
|
2.2 Material of Parts
Parts of Pump |
Description of Material |
Motor |
Permanent Magnet Brushless DC Motor (Without Hall) |
Controller |
32bit MCU / FOC / Sine Wave Current / MPPT |
Controller Shell |
Die-cast Aluminum(IP67) |
Outlet |
304 Stainless Steel |
Pump Body |
304 Stainless Steel |
Motor Body |
Die-cast Aluminum |
Bear |
NSK |
Impeller |
Plastic |
Screw |
316 Stainless Steel |

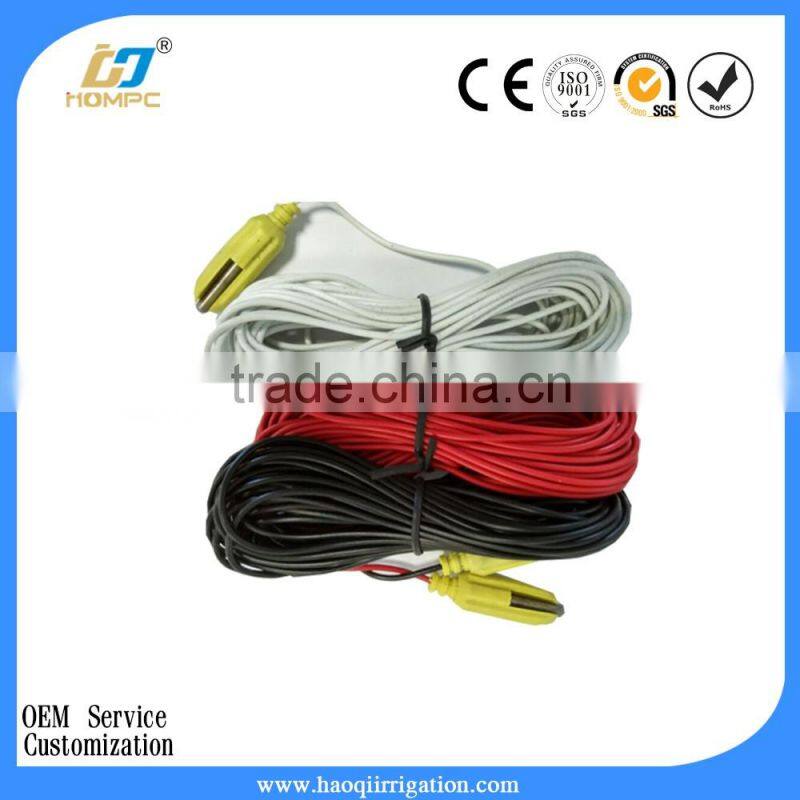

Cable |
3 Meters / Three-core copper cable /1.5mm3 |
2.3 Performance Chart
|
Item |
Parameter Values |
1. |
Rate Voltage |
72VDC |
2. |
Rate Power |
750W |
3. |
Max Flow |
3.0m3/h |
4. |
Max Head |
55m |
Model |
Flow (m3/h) |
0 |
0.55 |
1.61 |
2.89 |
4.06 |
5.13 |
6.67 |
JET3.0/55-D72/750 |
Head (m) |
33 |
30 |
25 |
20 |
15 |
10 |
3.2 |
3,The HQ-197K1500W-24 Controller General Information
Features
The HQ-197K1500W-24 solar pump controller is designed with the high standard of reliability expected of products. The controller attempts to drive the pump and motor to deliver water even under adverse conditions, reducing output as necessary to protect the system components from damage, and only shutting down in extreme cases. Full operation is restored automatically whenever abnormal conditions subside.
Inspection
Before you begin, receive and inspect the HQ-197K1500W-24 solar pump controller unit. Verify that the part number is correct and that no damage has occurred during transit.
NOTE: HQ-197K1500W-24 solar pump controller is one component of a HQ-197K1500W-24 solar pumping
system which has other two optional components, solar array and Brushless DC Motor pump.
Protection Features
Electronic monitoring gives the controller the capability to monitor the system and automatically shut down in the event of:
- • Dry well conditions – with low level switch
- • Bound pump – with auto-reversing torque.
- • High Voltage Surge
- • Low Input Voltage
- • Open motor circuit
- • Short circuit
- • Over heat
Warranty
1. More than 30000 hour service life.2. 36 months warranty.
