Home > Manufacturing & Processing Machinery > Woodworking Machinery > Other Woodworking Machinery > Combination Machine BM10312
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Forestwest
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wood Combined Machine BM10313NegotiableMOQ: 1 Unit -
BM10107 Portable Woodworking Dust Collector/Dust ExtractorNegotiableMOQ: 50 Units
-
Belt Grinding Machine BM10612&BM10616NegotiableMOQ: 10 Units
-
6"x9" Belt Disc Sander Wood Sanders BM10601NegotiableMOQ: 30 Units
-
Horizontal & Vertical Sanding Machine BM10602NegotiableMOQ: 20 Units
Condition
New
Place of Origin
Shandong, China
Brand Name
Forestwest
Model Number
BM10312

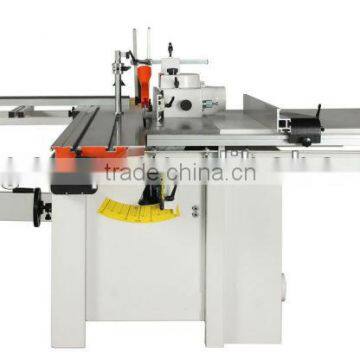

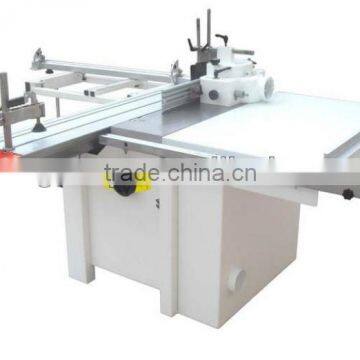

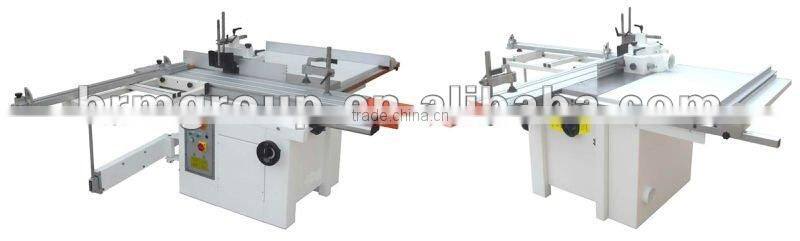

Combination Machine
Model: BM10312

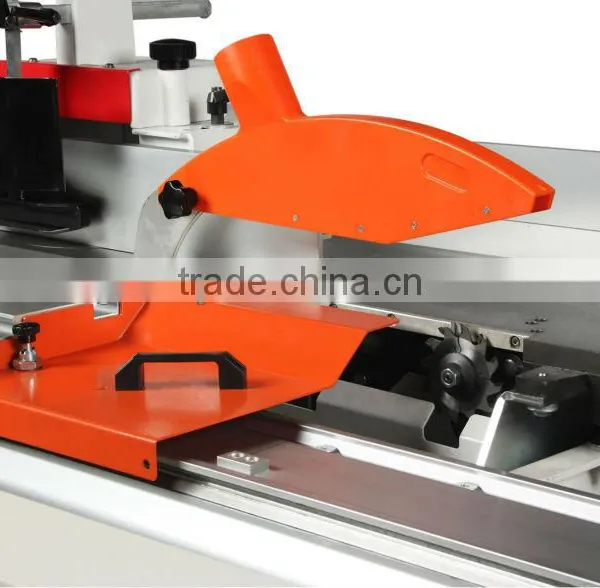

Spindle moulder, circular saw, tenoning carriage, Sharpener.
Features:
1. All the metal sheet is using laser cut, so the whole machine looks fantastic and with very good precision. The shell has with no visible welding, and powder coated.
2. Our engineer comes from Italy. He stays in our Qingdao factory and is in charge of the machine’s design and quality.
3. The net weight of our machine is heavier than many other similar types from other factories.
4. Our machine, including the motor, has CE certificate, and our motor power is 3kw.
5. The brand of our bearing is SKF or NSK, which has very good quality.
Specification:
| Circular saw | BM10312 | |
| Working table | mm | 326x1112 |
| Shaft rotation speed | r.p.m. | 4500 |
| Blade diameter | mm | 300 |
| Blade bora diameter | mm | 30 |
| Cutting height 90° | mm | 105 |
| Max. distance between blade and fence | mm | 730 |
| Blade inclination | 0° | 45° |
| Max cutting height 45° | mm | 75 |
| Shaft rotation speed engraver | r.p.m. | 7000 |
| Engraver blade diameter | mm | 90 |
| Engraver blade bora diameter | mm | 22 |
| Shaper | BM10312 | |
| Working tables | mm | 326x1112 |
| Shaft rotation speeds | r.p.m. | 7000/4400/3100/2000 |
| Standard shaft diameter | mm | 30 |
| Spindle length | mm | 105 |
| Shaft vertical stroke | mm | 115 |
| Max. tool diameter | mm | 180 |
| Max. tenoning depth | mm | 65 |
| Tenoning carriage | BM10312 | |
| Carriage dimensions | mm | 1800x315 |
| Carriage stroke | mm | 2200 |
| Standard accessories | BM10312 | |
| N°1 clamp lever | * | |
| Sharper fence | * | |
| Service wrenches | * | |
| Table extensions with swinging arms | mm | 800x600 |
| Saw guid | ||
| 3-phase motor power | HP - KW | 3,0 - 2,2 |
| Weight | kg | 295 |
| Optiona accessories | BM10312 | |
| Single-phase motor | HP - KW | 2,7 - 2,0 |
| Increasing 3-phase motor | HP - KW | 4,0 - 3,0 |
| Extraction | HP - KW | 0,5 - 0,36 |
| Contouring fence | ||
| Regulating to copy | ||
| Carriage stroke | 2600 |
