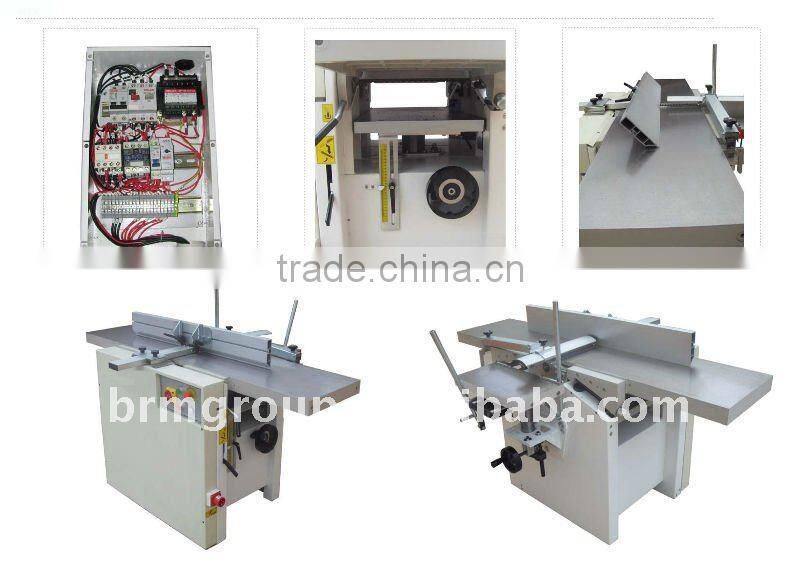

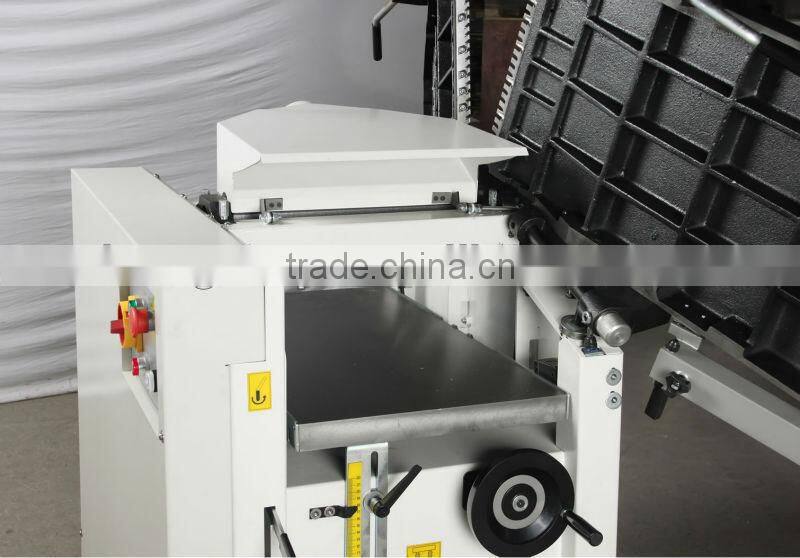

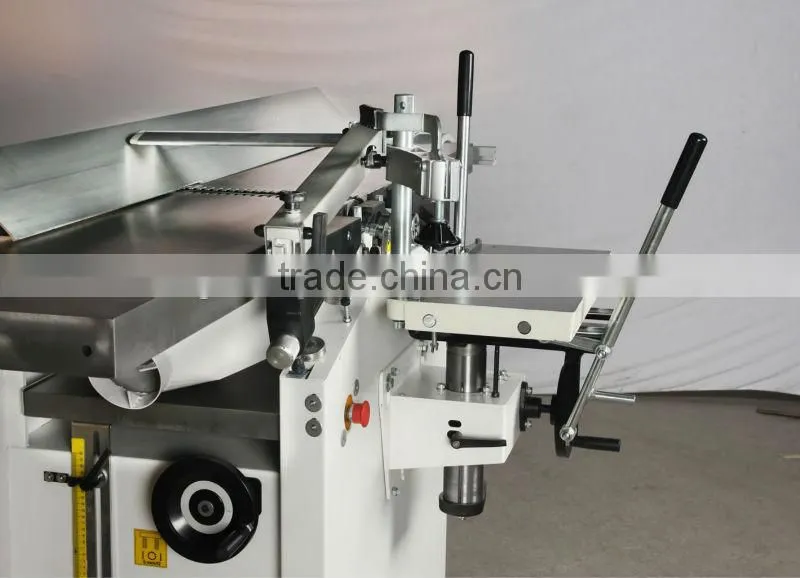

Wood Combined Machine BM10313

Wood Combined Machine BM10313 photo-1

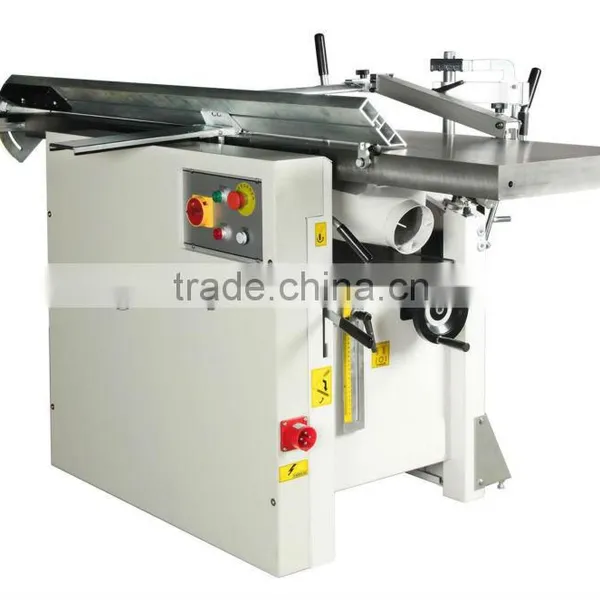

Wood Combined Machine BM10313 photo-2

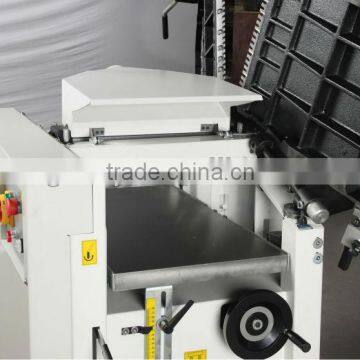

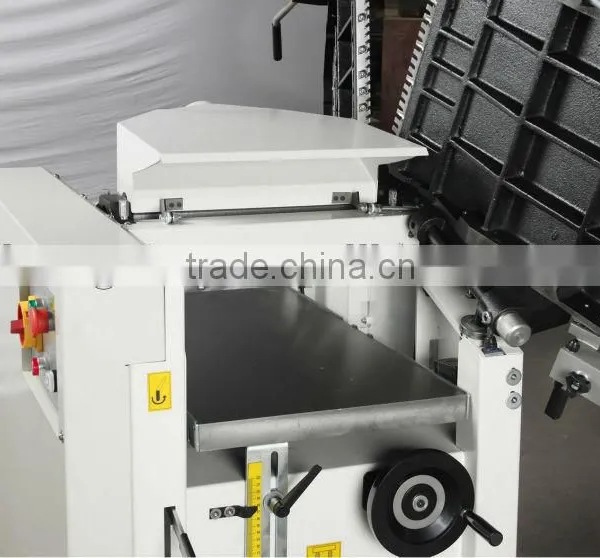

Wood Combined Machine BM10313 photo-3

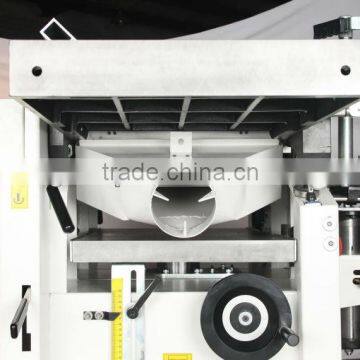

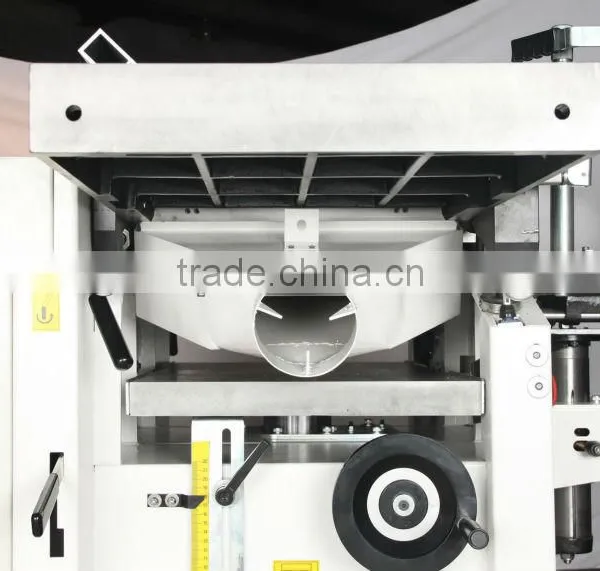

Wood Combined Machine BM10313 photo-4

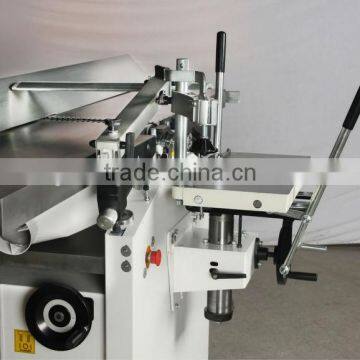

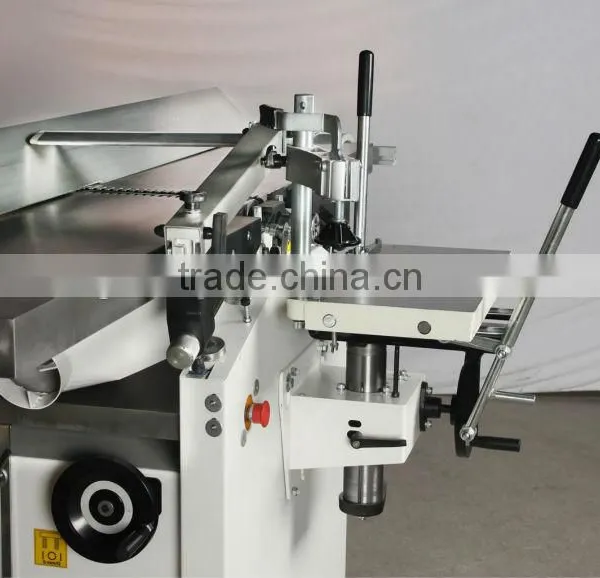

Wood Combined Machine BM10313 photo-5

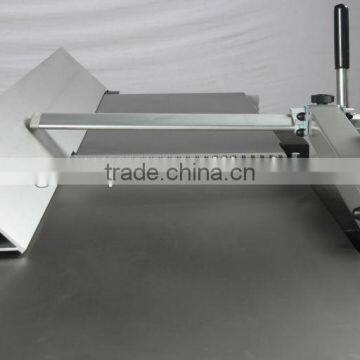

Wood Combined Machine BM10313 photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Forestwest
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Forestwest
Model Number BM10313

Wood Combined Machine
Model: BM10313

Surface planer, thichness machine,  mortiser.



Features:



1. All the metal sheet is using laser cut, so the whole machine looks fantastic and with very good precision. The shell has with no visible welding, and powder coated.

2. Our engineer comes from Italy. He stays in our Qingdao factory and is in charge of the machine’s design and quality.

3. The net weight of our machine is heavier than many other similar types from other factories.

4. Our machine, including the motor, has CE certificate, and our motor power is 3kw.

5. The brand of our bearing is SKF or NSK, which has very good quality.



Specification:

Planer   BM10313
Working tables mm 400x1750
Cutterblock diameter mm 70
Cutterblock rotation speed r.p.m  5700
N. of knifes No. 3
Knifes dimensions mm  400x20x3
Max table adjustement mm 4

Thicknesser   BM10313
Working table mm 400x760
Feed speed m/1'  7
Max. working height mm 220
Min. working height mm 4
Cutterblock rotation speed r.p.m. 5700
Max. cutting depth mm 5,5

Standard accessories   BM10313
Service wrenches
Guards on mortiseur chuck   *
3 pcs. planing knives   *
Planer guide
Bridge sefety hood on planer   *
3-phase motor power HP - KW 3,0 - 2,2
Weight  kg 290

Optiona accessories   BM10313
Single-phase motor HP - KW 2,7 - 2,0
Increasing 3-phase motor HP - KW 4,0 - 3,0
Extraction  HP - KW 0,5 - 0,36
Mortiser
    Working table mm 195x400
    Longitudinal stroke mm 180
    Trasversal stroke mm 90
    Vertical stroke mm 80
    Churck  mm 16
    Churck rotation speed r.p.m.  5700
    Mortiser chuck   *



Wood Combined Machine BM10313



Wood Combined Machine BM10313





Wood Combined Machine BM10313





Wood Combined Machine BM10313
