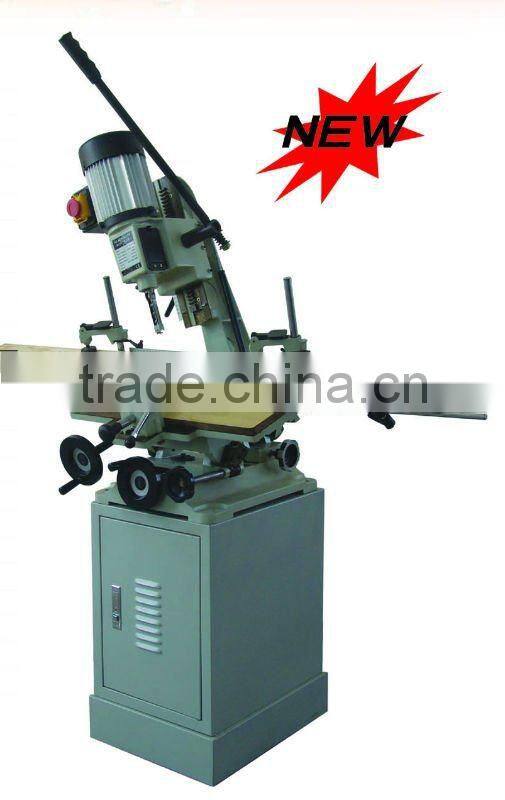

Woodworking Mortiser Mortising Machine
Model: BM10907
Chisel Capacity(mm) 6 – 26
Max. mortising depth(mm): 76
Drill chuck capacity(mm) 3-16
Max. Clamping Width(mm) 160
Spindle to fence (mm) 140
Vertical Stroke(mm) 140
Lateral Stroke(mm) 280
Chisel to table (mm) 210
Table Size(mm) 540x230
Base Size(mm) 450x360
Column tilt ±20°
Table Tilt ±20°
Fence Tilt 0°
Overall height(mm) 1870
Motor 750W
Spindle speed(rpm) 1,400
Packing size-Machine(mm) 620 x 560 x 970
-Stand(mm) 500 x 400 x 630
N.G Weight- Machine(kgs) 110/140
- Stand (kgs) 16/18
Units / 20” Container 64

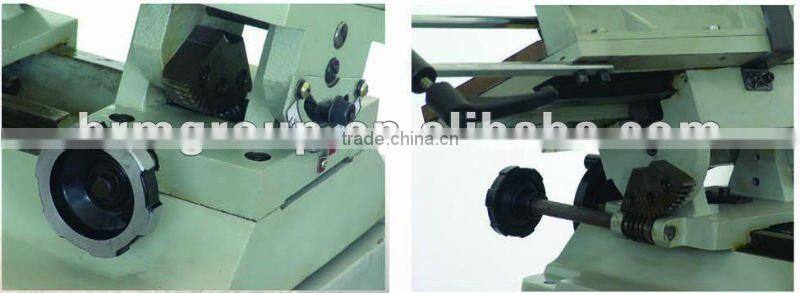

* Morticer head and working table could be tilted.
