(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308

(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 thumbnail-1
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 thumbnail-2
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 thumbnail-3
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 thumbnail-4
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 thumbnail-5
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 thumbnail-6
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 photo-1
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 photo-2
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 photo-3
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 photo-4
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 photo-5
(Table Saw,miller,thicknesser,planer,mortiser)NEW!!Combination Woodworking Machines BM10308 photo-6
Negotiable MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
FORESTWEST
Contact Supplier Request Quote Chat Now
Qingdao Bright Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name FORESTWEST
Model Number BM10308
Voltage Based on the customer's country
Power(W) 750w
Weight 52/49kg
Dimension(L*W*H) 840x635x475mm
Certification CE
Warranty 12 MONTHS

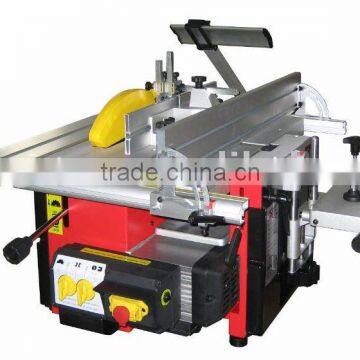

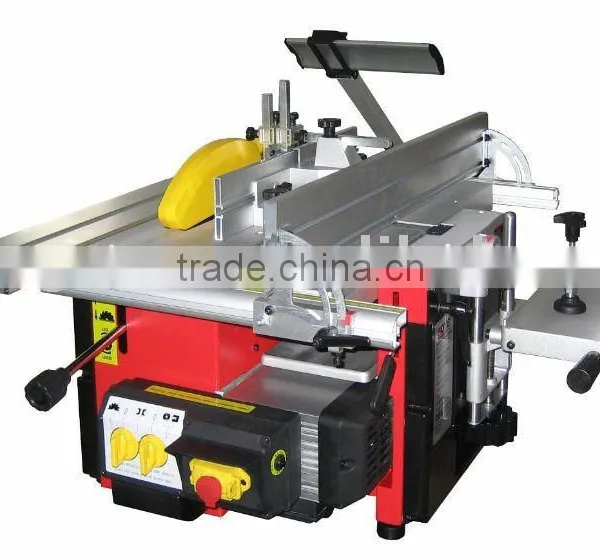

Combination Woodworking Machines

BM10308(Table saw,miller,thicknesser,planer,mortiser)

1.6 Function: planer,thicknesser,table saw,miller,mortiser;
2.CE Certification,Patent



Model No.

BM10306

BM10308

Motor

750w

750w

PLANNING

Planing width

130 mm

154 mm

Table length

540 mm

620 mm

Cutting depth

1.5 mm

1.5 mm

Number of knives

2

2

Speed rotation

 6000 rpm

 6000 rpm

THICKNESSING

Thicknessing width

130 mm.

154 mm.

Height

100 mm.

92 mm.

Max cutting depth

1.0 mm

1.0 mm

Automatic advancement

7m/min

7m/min

TABLE SAW

Blade diameter

160 mm.

200 mm.

Maximum cut

48 mm.

42 mm.

Rotation speed

4200 rpm

4200 rpm

Worktop dimension

540×300 mm

620×300 mm

Inclinable blade

NO

NO

MILLING  (SPINDLE MOULDER)

Bit housing

12 mm

12 mm

Adapter

8,6 mm

8,6 mm

Vertical stroke

42 mm

42 mm

Speed

9000 rpm

9000 rpm

SQUARE CARRIAGE

Maximum travel

4200 mm.

500 mm.

Carriage dimension

120×655

120×740

MORTISER

Bit housing

13mm.

13mm.

Adapter

6,8,10 mm.

6,8,10 mm.

Depth stroke

45 mm.

45 mm.

Vertical stroke

60 mm.

60 mm.

Lateral stroke

95 mm

95 mm

Worktop

260×125

260×125

Weight

43/40 Kg

52/49 Kg

Overall demension

840x595x475mm

840x635x475mm

Loading qnt’y20″40″

120/260pcs

120/250pcs
