16"x42" Variable Speed Wood Lathe Machine BM10808

Name: 16"x42" Variable Speed Wood Lathe Machine BM10808
Brand: Forestwest
SKU: 143506018
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Forestwest

Qingdao Bright Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Forestwest

Model Number BM10808

Voltage customized

Power(W) Input 1.1kw, output 0.75kw, 3ph, 230v

Weight 385.5/440.5lbs(175/200kgs)

Dimension(L*W*H) 1540x460x570mm

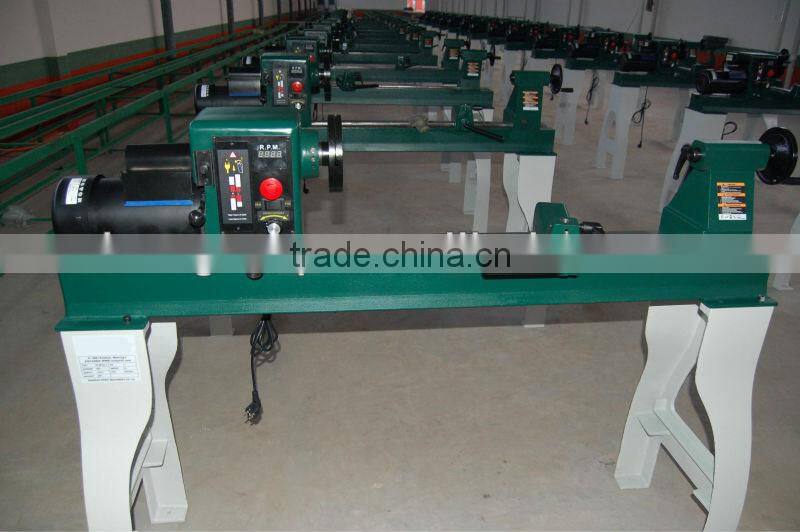

16"x42" Variable speed wood lathe machine

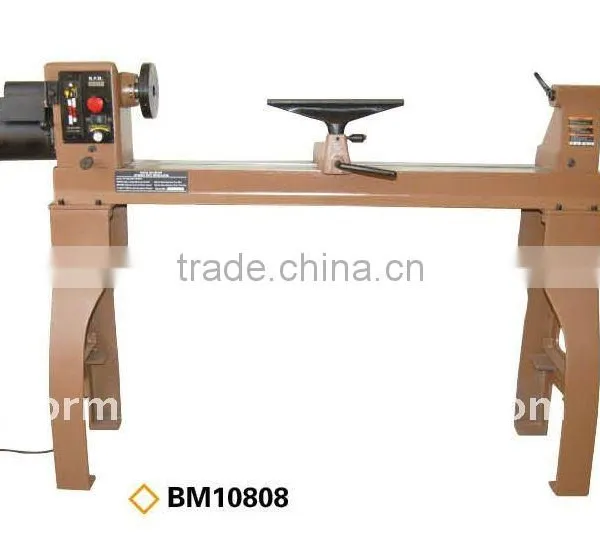

Model: BM10808

Features:

1. Electronic variable speed control

2. Digital spindle speed indicator

3. 30°direct indexing using 1 indexing hole

4. 10°indexing using all 3 indexing holes

5. Headstock can be positioned anywhere along the bed

6. 0°, 45°, 90°, 135°, 180°,270°, and 360° head stock rotation.

7. Tailstock, headstock and tool rest support have lever action cam locks for quick positioning

8. Belt drive offers 2 speed ranges

9. Spindle lock pin

10. Outboard spindle handle, Forward/reversing switch, Emergency stop switch

Specifications:

Swing over bed:	408mm(16 in.)
Distance between centers:	1060 mm(42 in.)
Headstock:	Spindle thread: M33x 3.5 RH
Headstock:	Headstock bore: No.2 Morse Taper(MT2)
Tailstock:	Tailstock bore: No.2 Morse Taper(MT2)
	Quill travel: 102 mm(4 in.)
	Hole Trough Tailstock: 15 mm(9/16 in.)
Toolrest Length:	355 mm(14 in.)
Shaft diameter	25mm (1 in.)
AC Motor	Input 1.1kw, output 0.75kw, 3ph, 230v
Inverter	input power 230v, 1ph, 0.75kw
Spindle speeds (rpm):	0-1200rpm/0-3200rpm
Standard equipment	355mm (14in.) toolrest, Faceplate,
	Poly Vee Drive Belt,
	Spur Center and live center
Weight:	385.5/440.5lbs(175/200kgs)
Packing size(mm)	1540x460x570
units/20' container	68 pcs
