Home > Products > PVC steel wire reinforced hose > Flexible steel wire reinforced hose

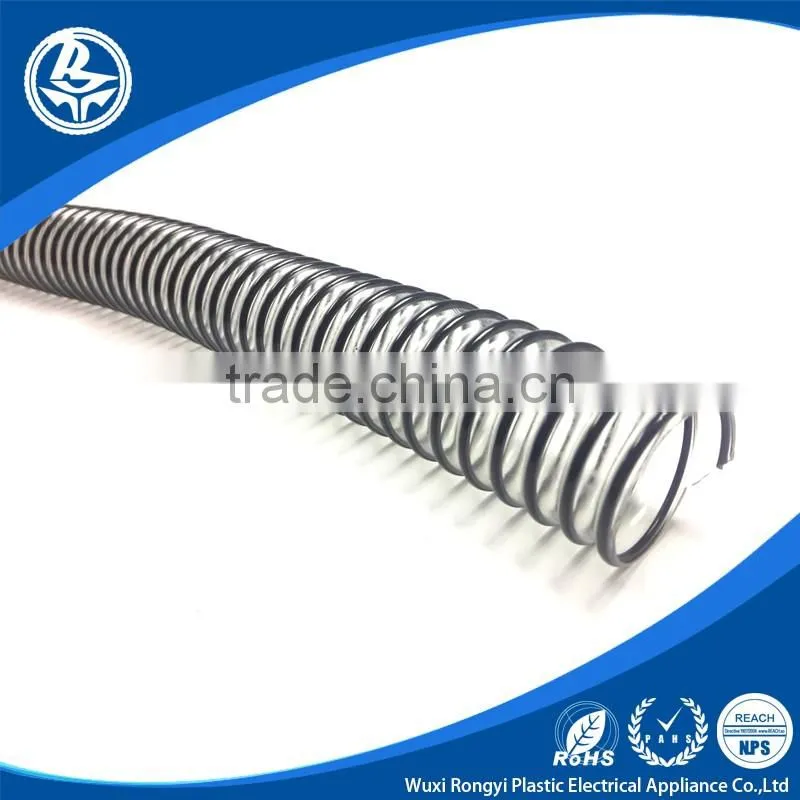

Flexible steel wire reinforced hose
- 30000 Meter / Meters per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Royflex | Model Number: | RYSWRH--001 |
Material: | PVC | Specification: | DN20 | Length: | 30m 40m 50m 100m or customized, 5m 7.5m 10m 15m or customized |
Thickness: | 2.8-10.5mm | Standard: | ISO9001, ISO9001 |
Product Description
Flexible steel wire reinforced hose
Company's introduction
Name | Wuxi Rongyi Plastic Electric Appliance Co., Ltd. |
Established Year | 1999 |
Yearly Capacity | 15,000,000m |
R&D department | 6 persons |
Certification | ISO9001 ;Rohs ;Reach ;PAHS |
Test Equipment | Vacuum degree reflectoscope reflector high and low temperature test instrument etc |
Patent | 1 |
Our partner | LIDL ALDI WORKZONE BOSCH EINHELL |
Applications
The hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines. The hose used for foodstuffs is made of special materials. It is nontoxic, light, without odor and transparent. This hose can be used for conveying milk, beverage, distilled liquor, beer, jam, and other foods.
transparent stainless steel metal hose | ||||
ID(mm) | Weight (g/m) | wall thickness (mm) | Working Pressure (mp a) | Length m/roll |
10 | 200 | 2.8-3.0 | 0.5 | 100 |
13 | 230 | 2.8-3.0 | 0.5 | |
16 | 250 | 2.3-2.8 | 0.5 | |
19 | 300 | 2.5-2.8 | 0.5 | 50 |
400 | 3.6-3.8 | 0.5 | ||
25 | 250 | 1.5-1.7 | 0.35 | |
300 | 1.7-1.8 | 0.4 | ||
400 | 2.6-2.8 | 0.45 | ||
32 | 500 | 2.3-2.5 | 0.3 | |
700 | 3.2-3.5 | 0.4 | ||
34 | 600 | 2.9-3.0 | 0.3 | |
38 | 500 | 2.2-2.3 | 0.2 | |
800 | 3.5-3.8 | 0.35 | ||
1000.0 | 4.2-4.5 | 0.45 | ||
1500 | 6.0-6.2 | 0.5 | ||
40 | 700 | 3.0-3.5 | 0.25 | |
45 | 800 | 3.0-3.3 | 0.25 | |
1000.0 | 3.6-3.7 | 0.35 | ||
48 | 1000.0 | 4.0-4.3 | 0.4 | |
50 | 800 | 2.5-2.8 | 0.2 | |
1000.0 | 3.2-3.3 | 0.25 | ||
1200.0 | 3.7-3.8 | 0.35 | ||
1400 | 4.8-4.9 | 0.4 | ||
58 | 1200 | 3.8-4.0 | 0.25 | 40 |
1400 | 4.2-4.5 | 0.25 | ||
60 | 1200 | 3.5-3.6 | 0.25 | |
1400 | 4.0-4.2 | 0.25 | ||
64 | 1.2 | 2.8-3.1 | 0.12 | 40 |
1.6 | 3.5-3.7 | 0.18 | ||
2.0 | 5.0-5.5 | 0.25 | ||
75 | 1.8 | 3.8-4.0 | 0.18 | |
2.0 | 4.3-4.7 | 0.2 | ||
2.5 | 5.3-5.5 | 0.3 | ||
80 | 2.5 | 5.0-5.2 | 0.3 | |
89 | 2.5 | 3.8-4.2 | 0.15 | 30 |
3.0 | 5.5-6.0 | 0.2 | ||
102 | 2.6 | 4.2-4.3 | 0.1 | |
3.0 | 5.0-5.3 | 0.15 | ||
110 | 4.5 | 5.0-5.2 | 0.3 | |
114 | 5.5 | 8.0 | 0.5 | |
127 | 5.0 | 5.0-5.4 | 0.3 | |
138 | 7.5 | 8.0 | 0.5 | |
152 | 6.0 | 6.0-6.3 | 0.3 | |
160 | 9.0 | 9.5-10.5 | 0.3 | |
200 | 14 | 9.5-10.5 | 0.35 |
————————————————————————————————————————————————————
Detail ---ROYFLEX---___________________________________________________________________________________________
___________________________________________________________________________________________
Why choose us? ---ROYFLEX---
___________________________________________________________________________________________
1) professional R&D
2) Specialized manufacturer
3) Strict factory test
4) high quality flexible hose
5) prompt Delivery
6) new product
7) customers designs and logo are welcome
8) competitive price
___________________________________________________________________________________________
FAQ ---ROYFLEX---
___________________________________________________________________________________________
1- Package:
Plastic film surrounded inside,woven bag packaged,or standard export carton packaged, or other ways as customers required.
Within 20days after receiving down payment.
3- Terms of Payment:
T/T,Paypal,Western Union and so on.
4- Quality Assurance:
Approved Certifications ISO9001,SGS,ROHS,REACH,CE,RAH'S,ACS ,etc. Each production process would be strictly controlled. All materials meet export standard.
5- After Sale Service:
Top service makes first-class brand. To be your trustworthy partner
