Flexible Corrugated Pipe Wire Hose Used for Car Wash Machines
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ROYFLEX | |
| Model Number | RYGSG-3 | Material | PVC | |
| Specification | Customized | Length | 1.8m 3m 5m or customized, 5m 7.5m 10m 15m or customized | |
| Thickness | 2~8mm | Standard | ISO2008, ISO2008 |
Product Description
Company's introduction
| Name | Wuxi Rongyi Plastic Electric Appliance Co., Ltd. |
| Established Year | 1999 |
| Yearly Capacity | 15,000,000m |
| R&D department | 6 persons |
| Certification | ISO9001 ;Rohs ;Reach ;PAHS |
| Test Equipment | Vacuum degree reflectoscope reflector high and low temperature test instrument etc |
| Patent | 1 |
| Our partner | LIDL ALDI WORKZONE BOSCH EINHELL |
Product description:

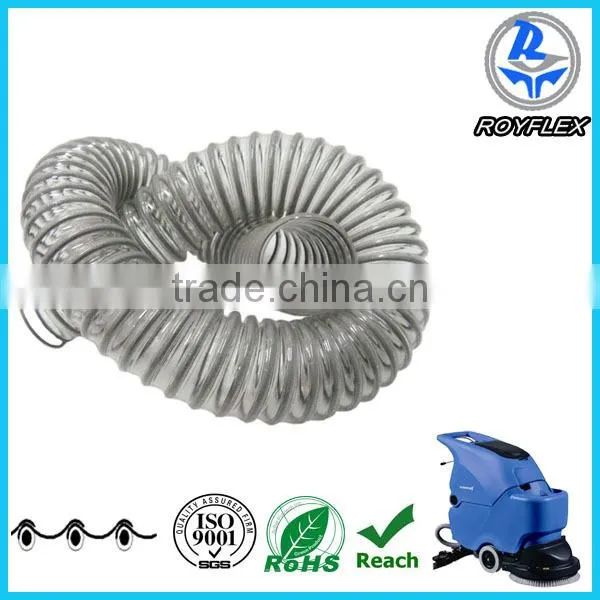

1. Name:flexible corrugated pipe wire hose used for car wash machines
2. Material:PVC
3. Inner Diameter: 25mm~200mm
4. Thickness: 2-8mm
5. Length: 1m,1.8m,2m... ≤15m/roll
6. Standard Color:black,sliver grey,other color customed
7. highly flexible PVC hose,outside rib structure,reinforced with PVC coated steel wire
flexible corrugated pipe wire hose used for car wash machines Applications:
air supply,cable protection,suction hose for light materials.Mainly used in Washing machine and breathing machine.
| flexible corrugated pipe wire hose used for car wash machines | ||||||||
| No. | ID (mm) | OD (mm) | screw pitch (mm) | Length (m) | Pipe wall material | Pipe wall thickness | Framework material | Weight (g/m) |
| 1 | 25 | 30 | 9.0 | 0.5-12 | PVC stretch fabric | 0.6±0.1 | 1.0mm bag steel wire | 180 |
| 2 | 30 | 39.5 | 9.0 | 0.5-12 | PVC stretch fabric | 0.6±0.1 | 1.0mm bag steel wire | 200 |
| 3 | 32 | 38 | 9.0 | 0.5-12 | PVC stretch fabric | 0.6±0.1 | 1.0mm bag steel wire | 220 |
| 4 | 35 | 40.5 | 9.0 | 0.5-12 | PVC stretch fabric | 0.6±0.1 | 1.1mm bag steel wire | 240 |
| 5 | 38 | 43 | 9.0 | 0.5-12 | PVC stretch fabric | 0.6±0.1 | 1.1mm bag steel wire | 275 |
| 6 | 40 | 45.5 | 9.0 | 0.5-12 | PVC stretch fabric | 0.7±0.1 | 1.1mm bag steel wire | 300 |
| 7 | 45 | 49.5 | 9.5 | 0.5-12 | PVC stretch fabric | 0.7±0.1 | 1.1mm bag steel wire | 380 |
| 8 | 75 | 81 | 11.0 | 0.5-12 | PVC stretch fabric | 0.8±0.1 | 1.2mm bag steel wire | 600 |
____________________________________________________________________________________________________________
Detail ---ROYFLEX---_____________________________________________________________________________________________________________
____________________________________________________________________________________________________________
Why choose us? ---ROYFLEX---
____________________________________________________________________________________________________________
1) professional R& D
2) Specialized manufacture
3) Strict factory test
4) high quanlity flexible hoseh
5) prompt Delivery
6) new product
7) customers designs and logo are welcome
8) competitive price
___________________________________________________________________________________________________
FAQ ---ROYFLEX---
___________________________________________________________________________________________________ 1- Package:
2- Delivery Date:
Within 20days after receiving down payment.
3- Terms of Payment:
T/T,Paypal,Western Union and so on.
4- Quality Assurance:
Approved Certifications ISO9001,SGS,ROHS,REACH,CE,RAH'S,ACS ,etc. Each production process would be strictly controlled. All materials meet export standard.
5- After Sale Service:
Top service makes first-class brand. To be your trustworthy partner
___________________________________________________________________________________________________

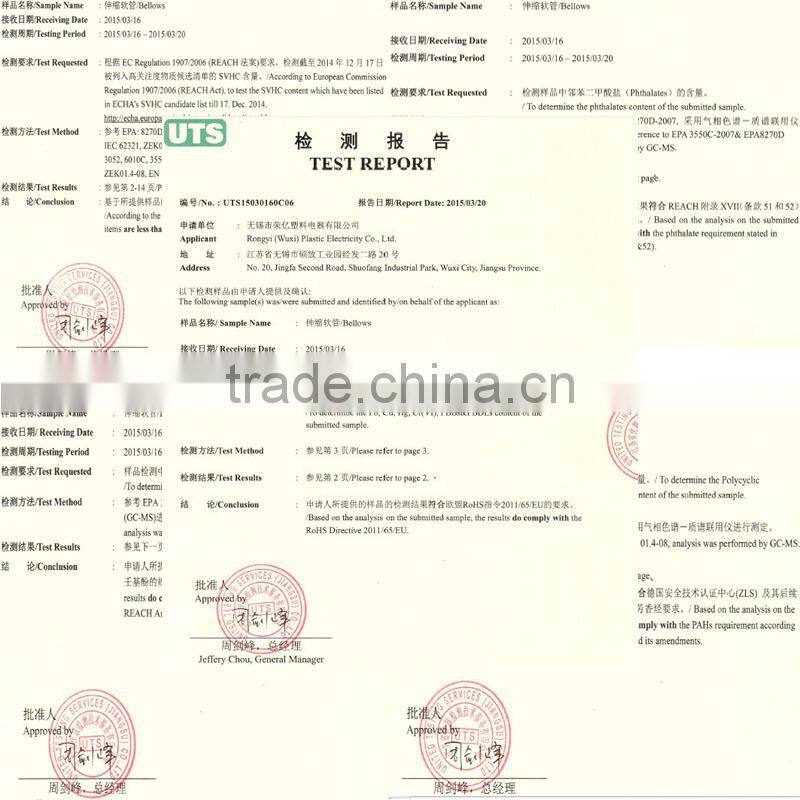

Test report ---ROYFLEX---
___________________________________________________________________________________________________
