Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence

Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence photo-1
Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence photo-2
Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence photo-3
Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence photo-4
Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence photo-5
Galvanized Concertina Stainless Steel Razor Barbed Wire Blade Wire Fence photo-6
US$ 800 - 1,000 MOQ: 10 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
WEIHAO
Model Number:
BTO-22 ; BTO-30
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name WEIHAO
Model Number BTO-22 ; BTO-30
Material Stainless Steel Wire
Surface Treatment Galvanized
Type Barbed Wire Coil
Razor Type Cross Razor

High quality galvanized stainless razor barbed wire

Razor Barbed Wire, also known as the concertina wire, blade stinging, razor wire, is a new type of fence.Blade thorn rope with beautiful, economical and practical, prevention effect is good, convenient construction and other excellent characteristics, at present, the blade barbed wire has been widely applied in many countries of the industrial and mining enterprises, garden apartment, border posts, military field, prisons, detention center, government buildings and other national security facilities.

 galvanized concertina stainless steel razor barbed wire blade wire fence

Other name :Razor bared wire,  plastic barbed wire, barbed wire, Hot dip galvanized razor wire, razor edge barbed wire, razor wire cbt-60, spiral razor barbed wire, plastic razor wire, razor barbed wire netting, razor barbed iron wire mesh, green razor barbed wire, concertina razor barbed wire.

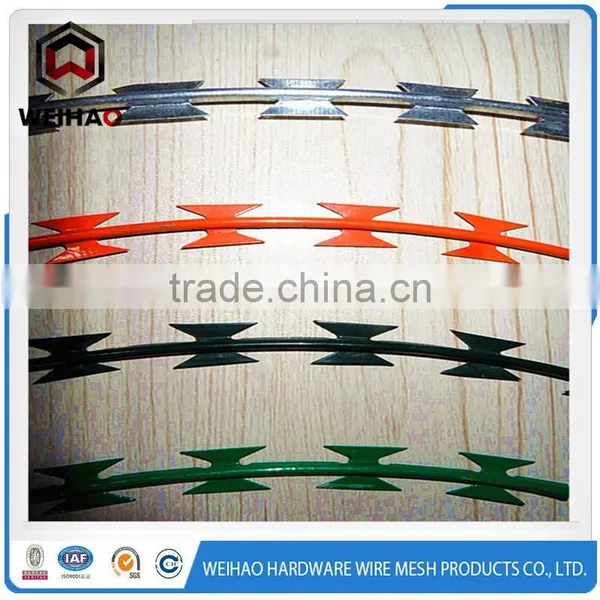

1.Materials: galvanized iron wire, PVC coated wire , stainless steel wire and stainless steel sheet

2.Blade Type: BTO-12  BTO-18  BTO-22 CBT-60 CBT-65

3.Wire Dia.: 2.0-2.5mm

4.Bard Length: 10-65mm

5.Barb Spacing: 26-100mm

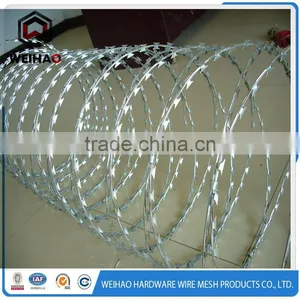

6.Classification: straight line razor wire, concertina wire, crossed razor barbed wire, razor wire mesh

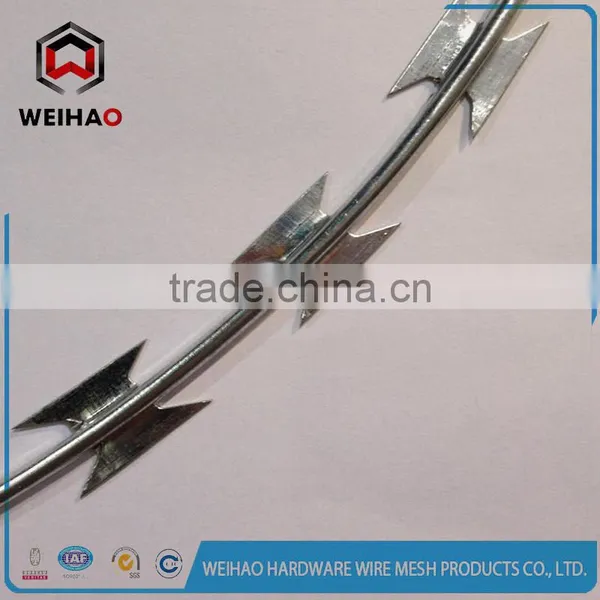

7.Process and Features: Galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades. The products offer beautiful appearance, economic cost, good frightening result and easy installation. Sharp blades coming in the form of concertina by buckles bring very good result of frightening and stopping to the aggressive perimeter intruders .

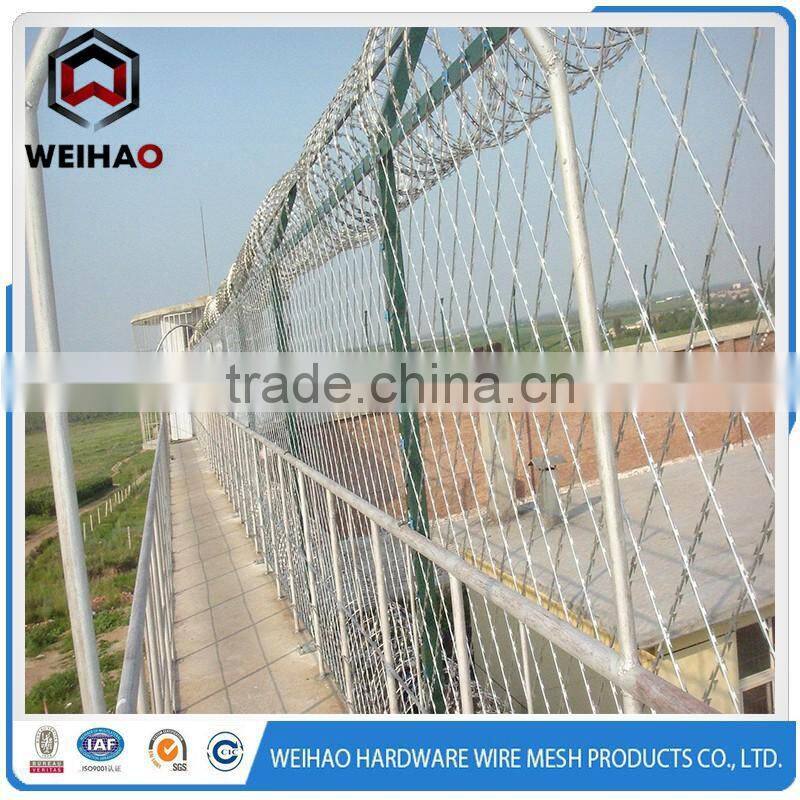

8.Applications: widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.

9.Specifications

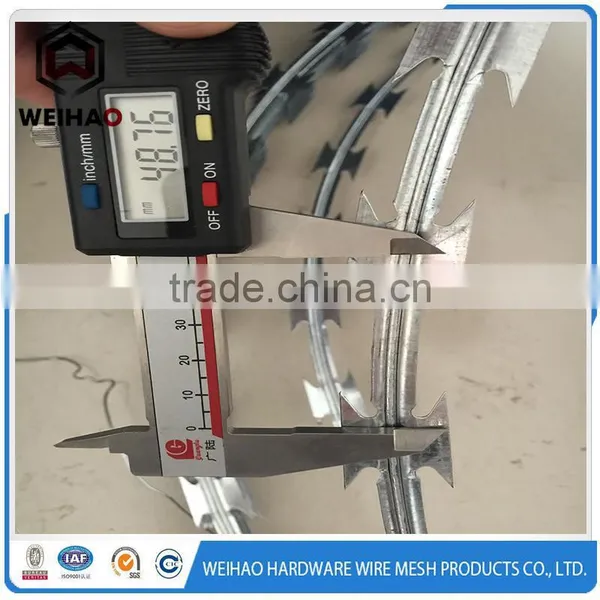

Razor Blade Type and Specification
Reference NumberThicknessWire DiameterBarb LengthBarb WidthBarb Spacing
BTO-100.5 ± 0.052.5 ± 0.110 ± 113 ± 126 ± 1
BTO-120.5 ± 0.052.5 ± 0.112 ± 115 ± 126 ± 1
BTO-180.5 ± 0.052.5 ± 0.118 ± 115 ± 133 ± 1
BTO-220.5 ± 0.052.5 ± 0.122 ± 115 ± 134 ± 1
BTO-280.5 ± 0.052.5 ± 0.128 ± 115 ± 145 ± 1
BTO-300.5 ± 0.052.5 ± 0.130 ± 118 ± 145 ± 1
Outer diameterNo. of loopsStandard length per coilTypeNotes
450mm337m-8mCBT-65Single coil
500mm4110mCBT-65Single coil
700mm4110mCBT-65Single coil
960mm5411m-15mCBT-65Single coil
500mm10215m-18mBTO-12,18,22,28,30Cross type
600mm8613m-16mBTO-12,18,22,28,30Cross type
700mm7212m-15mBTO-12,18,22,28,30Cross type
800mm6413m-15mBTO-12,18,22,28,30Cross type
960mm5212m-15mBTO-12,18,22,28,30Cross type
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
Notes: Standard products styles are shown in the tables above, special specifications are available on request. Standard materials are either galvanized or stainless steel.



Packaging & Shipping

galvanized concertina stainless steel razor barbed wire blade wire fence
galvanized concertina stainless steel razor barbed wire blade wire fence



Our Services



Anping Weihao Wire Mesh Co.,LTD provide the high quality Razor Barbed Wire product.



1.Long-term cooperatin

2.Good after-sale and before sale serivice.

3.If there is quality problem, we promise refund to you.





Company Information



      ANPING COUNTY WEIHAO WIRE MESH CO., LTD is a modern company and exporter of metal wires,nails and wire mesh products since 1984. WEIHAO is committed to supplying high quality Razor Barbed Wire products for worldwide customers.


         Our products are mainly exported to foreign countries, such as the USA, Canada, Italy, Japan, Germany, Southeast Asia, South America, The Middle East, Africa, Brazil, Chile, and more than 80 region and countries. With competitive price, good reputation and prompt delivery, we have established regular business relationship with many foreign customers.





FAQ

  1.What is our MOQ  for Razor Barbed Wire product ?

    Razor Barbed Wire product's MOQ is usually 25 ton for one 20 container.



 2.What is our payment term for Razor Barbed Wire ?

   The payment term is usually T/T 30% in advance, the balance paid to us before shiping the Razor Barbed Wire .



 3.What is the delivey time for Razor Barbed Wire ?

    For one 20 container, the delivery time will be 20 working days.

galvanized concertina stainless steel razor barbed wire blade wire fence
