220v 50hz 220v 60hz 380v 50hz Pump for swimming pool
< 11 years manufacturer, give you more competitive price and professional information;>
< Passed SGS , ISO and CE strict authentication, make sure the quality for you;>
< As a factory, provide you customize design services.>
Hayward pool water circulation pump Features
It's designed according to the principles of hydraulics. Its advantage of motor for internal ventilation design and the winding design.Liquids part is made of high reinforce engineering plastic which is durable.
Hayward pool water circulation pump Technical Characteristics
SP1505 2’’/63mm(connection size) 1.0hp(horsepower) 220V/50Hz(capacitance)
SP1503 2’’/63mm(connection size) 1.5hp(horsepower) 220V/50Hz(capacitance)
SP2001 2’’/63mm(connection size) 2.0hp(horsepower) 220V/50Hz(capacitance)
SP3004 2’’/63mm(connection size) 3.0hp(horsepower) 220V/50Hz(capacitance)
SP3002 2’’/63mm(connection size) 3.0hp(horsepower) 380V/50Hz(capacitance)

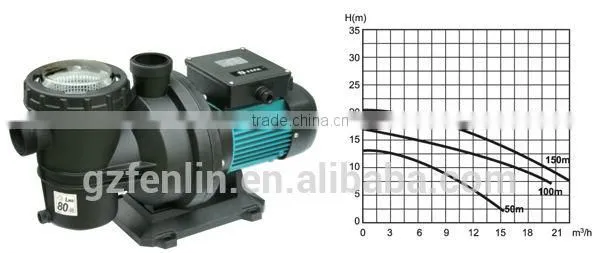

Hayward pool water circulation pump
Use and maintenance
1.you should make the pump working in the standard rotate speed in use process, don’t speed up at will, in order to avoid potential safety hazard and impact the useful life of the pump.
2.Direct coupled type pump units:the chassis must remain stable, so as not to damage the coupling.
Belt wheel type pump units:the two pulleys must be aligned, the belt loose or tighten must be moderate.
If the pump doesn’t turn, it is generally because the impeller-ring get rusty, you can use the mallet knocking the coupling axially.
Pump mounting height(in order to suction the water tank as the base)should be less than the permit smoking on 1-2meter high vacuum.
3.You should stop the engine if you discover abnormalities(such as noise, shock, hydraulic discharge descend etc.),and attention the bearing heat up, the temperature can’t exceed 75°C.
If stop using for a long time, you should discharge the water in the pump, overhaul and oil, keep it in a dry and ventilate shade.
In winter, you should discharge the water at once when you stop using it in case frost crack.
After the pump every 1000 hours operating time, you should take down and clean the bearing, and exchange quick-wear parts.
faults |
causes |
eliminating methods |
pump no flow |
1,the stored water not enough |
1,increase water |
2,air leakage of suction culvert and shaft seal |
2,overhaul the suction culvert |
|
3,pump reversal |
3,check up and redress |
|
4,the rotate speed is too low |
4,adjusting |
|
5,the suction distance is too high |
5,drop it |
|
water yield not enough |
1,the bottom valve or impeller blocking |
1,remove the tamper |
2,the rotate speed is too low |
2,adjust |
|
3,total head overtop |
3,drop it |
|
bearing heating |
1,grease too much or not enough |
1,increase or decrease properly |
2,pump shaft bended |
2,adjust or replace |
|
3,belt over taut |
3,adjust to relax |
|
the noise and vibration is fairly big |
1,the suction distance is too high |
1,drop it |
2,The bottom of the frame is unstable |
2,consolidate |
|
3,bearing wear seriously |
3,replace bearing |
|
4,bearing bended |
4,adjust or replace |
|
The shaft power increased |
1,the rotate speed is too high |
1,adjust |
2,pump shaft bended |
2,adjust or replace |
|
3,bearing wear seriously |
3,replace bearing |
Hayward pool water circulation pump packing details:
Another Brand pool pump for you choose:
We have AQUA brand,Copy ESPA Brand,pool brand,and hot sale brand pool pump Water Fairy.
We can provide one set swimming spa pool equipment!Like pool filter,grating,liner,cover,pool heater.etc.
Also can make fountains for pool decoration!
Our company
Customer visit
Our company activity
If you have any interest in our 220v 50hz 220v 60hz 380v 50hz Pump for swimming pool, Please contact Lauri anytime!
