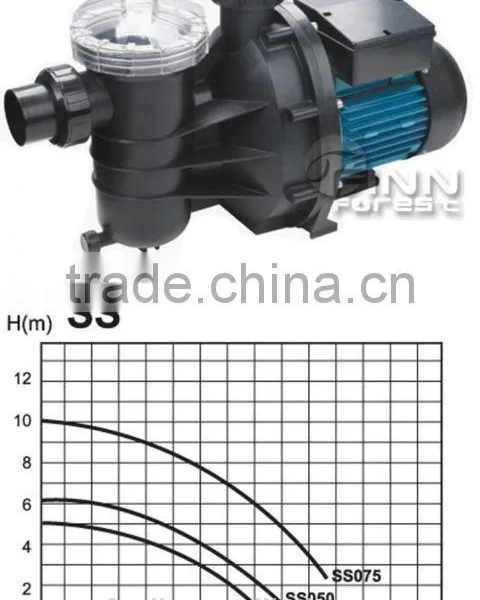

220v-240v 50hz 60hz Super power variable speed swimming pool pump

  220v-240v 50hz 60hz Super power variable speed swimming pool pump

< 11 years manufacturer, give you more competitive price and professional information;>

< Passed SGS , ISO and CE strict authentication, make sure the quality for you;>

< As a factory, provide you customize design services.>

Hayward pool water circulation pump Features

It's designed according to the principles of hydraulics. Its advantage of motor for internal ventilation design and the winding design.Liquids part is made of high reinforce engineering plastic which is durable.

Hayward pool water circulation pump Technical Characteristics

  SP1505   2’’/63mm(connection size)     1.0hp(horsepower)   220V/50Hz(capacitance)

  SP1503   2’’/63mm(connection size)     1.5hp(horsepower)   220V/50Hz(capacitance)

  SP2001   2’’/63mm(connection size)     2.0hp(horsepower)   220V/50Hz(capacitance)

  SP3004   2’’/63mm(connection size)     3.0hp(horsepower)   220V/50Hz(capacitance)

  SP3002   2’’/63mm(connection size)     3.0hp(horsepower)   380V/50Hz(capacitance)

Hayward pool water circulation pump

Use and maintenance

1.you should make the pump working in the standard rotate speed in use process, don’t speed up at will, in order to avoid potential safety hazard and impact the useful life of the pump.

2.Direct coupled type pump units:the chassis must remain stable, so as not to damage the coupling.

Belt wheel type pump units:the two pulleys must be aligned, the belt loose or tighten must be moderate.

 If the pump doesn’t turn, it is generally because the impeller-ring get rusty, you can use the mallet knocking the coupling axially.

Pump mounting height(in order to suction the water tank as the base)should be less than the permit smoking on 1-2meter high vacuum.

3.You should stop the engine if you discover abnormalities(such as noise, shock, hydraulic discharge descend etc.),and attention the bearing heat up, the temperature can’t exceed 75°C.

If stop using for a long time, you should discharge the water in the pump, overhaul and oil, keep it in a dry and ventilate shade.

 In winter, you should discharge the water at once when you stop using it in case frost crack.

After the pump every 1000 hours operating time, you should take down and clean the bearing, and exchange quick-wear parts.

Hayward pool water circulation pump packing details:

Another Brand pool pump for you choose:

We have AQUA brand,Copy ESPA Brand,pool brand,and hot sale brand pool pump Water Fairy.

We can provide one set swimming spa pool equipment!Like pool filter,grating,liner,cover,pool heater.etc.

Also can make fountains for pool decoration!

Our company

Customer visit

Our company activity

If you have any interest in our 220v-240v 50hz 60hz Super power variable speed swimming pool pump,Please contact Lauri anytime!

Contact: Lauri Cui

Phone:+86 18902404598 or directly email me.
