High Class Stainless Steel Fountain Nozzles Directional Nozzle

High Class Stainless Steel Fountain Nozzles Directional Nozzle photo-1
High Class Stainless Steel Fountain Nozzles Directional Nozzle photo-2
High Class Stainless Steel Fountain Nozzles Directional Nozzle photo-3
US$ 3 - 68 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FINN FOREST
Model Number:
Spray Nozzle
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name FINN FOREST
Model Number Spray Nozzle
Condition New

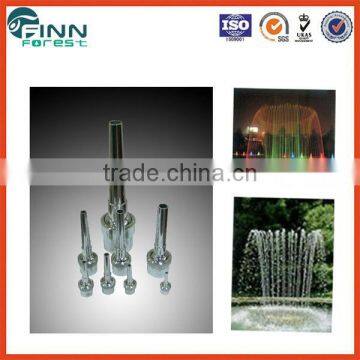

High class stainless steel fountain nozzles directional nozzle



Outdoor water jet fountain directional nozzles



FANLAN High Quality Single Jet Fountain Nozzle may be used in small ponds or basins to obtain a single jet, but more frequently, several are arranged in a group.

  •  Ejective water film like a mushroom
  • can be single set up, also can Multiple synthesis modelling
  • multi-stepped water pattern
  • independent from water level
  • with flow regulator

1.  material: stainless steel/ copper

2.  chrome plated is optional

3. different sizes can be made

4. kinds of styles available

5. OEM acceptable

6. products can be made as per clients' requirements

7. welcome to visit our factory

8. The detail information of our fan shape fountain nozzles

High class stainless steel fountain nozzles directional nozzle

 High class stainless steel fountain nozzles directional nozzle



Function of water jet fountain nozzles:



The fountain nozzle is very widly used in fountain design. It can produce jets of different heights and in different directions by changing its angle and water pressure. It is always used in fountains with height

control and program contral.



High class stainless steel fountain nozzles directional nozzle

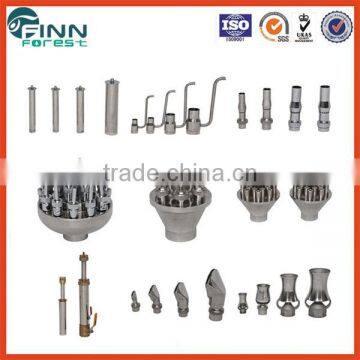

 Detail  effect of our  fountain jet nozzles and actual use



1.  Park view spring bubble water jet nozzles





Model Material Joint size Working pressure(Kpa) Discharge(M3/h) Height(m) Diameter(m) Size(WxH)mm
CH15 Copper planting/SS

1/2"

50-100 1.5-3.0 0.15-0.3 0.1-0.2 17X170
CH20 3/4" 50-100 2.0-5.0 0.2-0.35 0.15-0.3 25X188
CH25 1" 50-100 3.5-8.0 0.3-0.5 0.2-0.4 30X247
CH40 1 1/2" 50-100 10.0-18.,0 0.4-0.8 0.3-0.5 42X28
CH50 2" 60-150 17.0-25.0 0.5-0.8 0.3-0.6 60X330
CH65 2 1/2" 100-200 25.0-40.0 0.5-1.0 0.5-0.7 70X358
CH80 4" 150-300 40.0-55.0 1.0-1.5 0.7-0.9 80X405









2. Straight spray jet nozzles







Model

Joint size(G)

Pressure(Kpa)

Discharge(M3/h)

Height(m)

Diameter(m)

ZA0   1/4" 15-35 0.2-0.5  0.3-1.0  radial shape
ZA1

  3/8"

15-35 0.2-1.0  0.5-1.5  radial shape
ZA2

  1/2"

50-150 0.3-1.5   1.0-4.0   radial shape
ZA3

  3/4"

50-150  1.0-3.0  1.0-5.0  radial shape
ZA4

    1"

50-150  2.0-4.0   3.0-6.0  radial shape
ZA5

 1 1/2"

50-150  3.0-6.0  3.0-7.0  radial shape
ZA6

    2"

50-150  5.0-8.0   3.0-8.0   radial shape
ZA7

2 1/2"

70-150 10.0-15.0   3.5-10.0   radial shape
ZA8

    3"

70-150  10.0-15.0   3.5-10.0   radial shape













3. Small mushroom water jet nozzles







Model Joint size(G) Pressure(kpa) Discharge(m³/h) Height(m) Diameter(m)
MC6 2" 10-15 5.0 0.50 1.2
MC5 1 1/2" 6-10 3.0 0.40 1.0
MC4 1" 6-10 2.0 0.25 0.6
MC3 3/4" 5-8 1.5 0.25 0.5
MC2 1/2" 5-8 1.0 0.20 0.3











4. Fireworks water jet nozzles





Model Joint size(G) Pressure(kpa) Discharge(m³/h) Height(m) Diameter(m)
SF6 2" 80 12 2.8 2.9
SF5 1 1/2" 60 10 2.5 2.5
SF4 1" 40 7 2.3 2.3
SF3 3/4" 40 5 2.0 1.9
SF2 1/2" 40 3 1.8 1.8





















5.  Ice tower shape water fountain nozzles





Model Joint size(G) Pressure(kpa) Discharge(m³/h) Height(m) Diameter(m)
CF8 3" 50-450 21.0-50.0 1.0-12.0 1.5
CF6 2" 50-450 12.0-25.0 1.0-10.0 1.0
CF5 1 1/2" 20-300 8.0-13.0 1.0-8.0 0.6
CF4 1" 40-200 6.0-10.0 1.0-6.0 0.3
CF3 3/4" 40-200 2.0-4.0 1.0-4.0 0.2
CF2 1/2" 40-200 3.0 1.0-1.8 0.2















6. Jade gas directly spray water jet nozzles





Model Material Joint size(G) Pressure(Kpa) Dicharge(M3/h) Height(m) Diameter(m)

Size

WxH(mm)

CB20

Copper Planting, Copper,

Stainless steel

3/4" 50-150 3.0-5.0 0.5-4.0 0.3-0.5 25x145

CB25

1" 50-200 6.0-12.0 1.5-5.5 0.5-0.8 30x156

CB40

1 1/2" 50-200 10.0-15.0 2.0-7.0 0.6-1.0 35x180

CB50

2" 50-250 15.0-20.0 2.0-12.0 1.6-2.1 40x202







 High class stainless steel fountain nozzles directional nozzle







More beautiful effect of our water jet nozzles



























The beautiful  effect of our music dancing water fountains











 High class stainless steel fountain nozzles directional nozzle







 We have our own factory to produce and design fountains, welcome for your inquiry and cooperation!!



 High class stainless steel fountain nozzles directional nozzle



If there any products attract you, pls feel free to contact us!!





 High class stainless steel fountain nozzles directional nozzle
