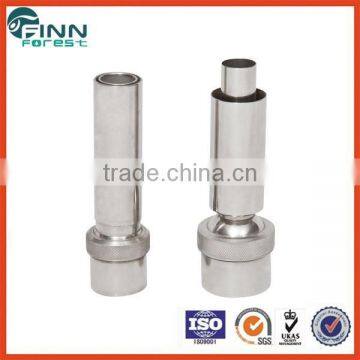

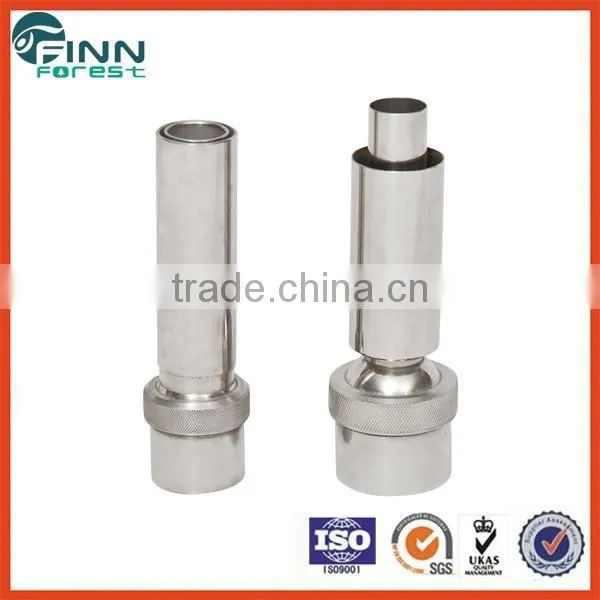

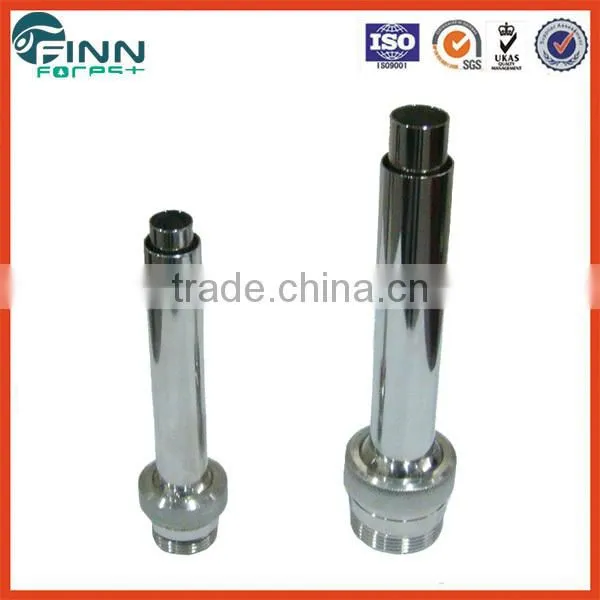

garden park water fountain stainless steel nozzle
Outdoor water spray jet fountain nozzles
FANLAN high quality Fountain Nozzles, with its Special new and perfect design and made by high quality brass, brass plating or Stainless Steel , Which are popular and idea choice for domestic and oversea customers.
FANLAN High Quality Single Jet Fountain Nozzle may be used in small ponds or basins to obtain a single jet, but more frequently, several are arranged in a group.
- Ejective water film like a mushroom
- can be single set up, also can Multiple synthesis modelling
- multi-stepped water pattern
- independent from water level
- with flow regulator
1. material: stainless steel/ copper
2. chrome plated is optional
3. different sizes can be made
4. kinds of styles available
5. OEM acceptable
6. products can be made as per clients' requirements
7. welcome to visit our factory
8. The detail information of our fan shape fountain nozzles
Function of water jet fountain nozzles:
The fountain nozzle is very widly used in fountain design. It can produce jets of different heights and in different directions by changing its angle and water pressure. It is always used in fountains with height
control and program contral.

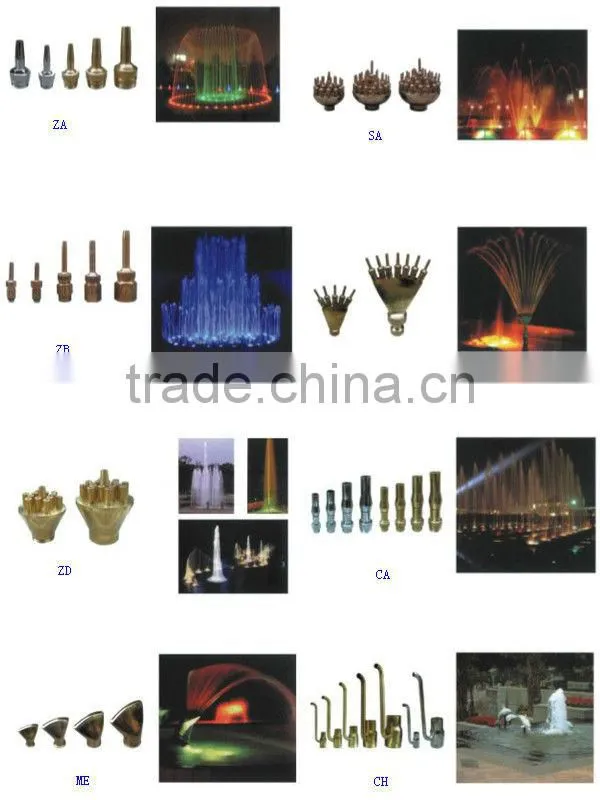

Detail effect of our fountain jet nozzles and actual use
1. Straight spray jet nozzles
| Model | Joint size(G) | Pressure(Kpa) | Discharge(M3/h) | Height(m) | Diameter(m) |
| ZA0 | 1/4" | 15-35 | 0.2-0.5 | 0.3-1.0 | radial shape |
| ZA1 | 3/8" | 15-35 | 0.2-1.0 | 0.5-1.5 | radial shape |
| ZA2 | 1/2" | 50-150 | 0.3-1.5 | 1.0-4.0 | radial shape |
| ZA3 | 3/4" | 50-150 | 1.0-3.0 | 1.0-5.0 | radial shape |
| ZA4 | 1" | 50-150 | 2.0-4.0 | 3.0-6.0 | radial shape |
| ZA5 | 1 1/2" | 50-150 | 3.0-6.0 | 3.0-7.0 | radial shape |
| ZA6 | 2" | 50-150 | 5.0-8.0 | 3.0-8.0 | radial shape |
| ZA7 | 2 1/2" | 70-150 | 10.0-15.0 | 3.5-10.0 | radial shape |
| ZA8 | 3" | 70-150 | 10.0-15.0 | 3.5-10.0 | radial shape |
2. Park view spring bubble water jet nozzles
| Model | Material | Joint size | Working pressure(Kpa) | Discharge(M3/h) | Height(m) | Diameter(m) | Size(WxH)mm |
| CH15 | Copper planting/SS | 1/2" | 50-100 | 1.5-3.0 | 0.15-0.3 | 0.1-0.2 | 17X170 |
| CH20 | 3/4" | 50-100 | 2.0-5.0 | 0.2-0.35 | 0.15-0.3 | 25X188 | |
| CH25 | 1" | 50-100 | 3.5-8.0 | 0.3-0.5 | 0.2-0.4 | 30X247 | |
| CH40 | 1 1/2" | 50-100 | 10.0-18.,0 | 0.4-0.8 | 0.3-0.5 | 42X28 | |
| CH50 | 2" | 60-150 | 17.0-25.0 | 0.5-0.8 | 0.3-0.6 | 60X330 | |
| CH65 | 2 1/2" | 100-200 | 25.0-40.0 | 0.5-1.0 | 0.5-0.7 | 70X358 | |
| CH80 | 4" | 150-300 | 40.0-55.0 | 1.0-1.5 | 0.7-0.9 | 80X405 |
3. Small mushroom water jet nozzles
| Model | Joint size(G) | Pressure(kpa) | Discharge(m³/h) | Height(m) | Diameter(m) |
| MC6 | 2" | 10-15 | 5.0 | 0.50 | 1.2 |
| MC5 | 1 1/2" | 6-10 | 3.0 | 0.40 | 1.0 |
| MC4 | 1" | 6-10 | 2.0 | 0.25 | 0.6 |
| MC3 | 3/4" | 5-8 | 1.5 | 0.25 | 0.5 |
| MC2 | 1/2" | 5-8 | 1.0 | 0.20 | 0.3 |
4. Fireworks water jet nozzles
| Model | Joint size(G) | Pressure(kpa) | Discharge(m³/h) | Height(m) | Diameter(m) |
| SF6 | 2" | 80 | 12 | 2.8 | 2.9 |
| SF5 | 1 1/2" | 60 | 10 | 2.5 | 2.5 |
| SF4 | 1" | 40 | 7 | 2.3 | 2.3 |
| SF3 | 3/4" | 40 | 5 | 2.0 | 1.9 |
| SF2 | 1/2" | 40 | 3 | 1.8 | 1.8 |
5. Ice tower shape water fountain nozzles
| Model | Joint size(G) | Pressure(kpa) | Discharge(m³/h) | Height(m) | Diameter(m) |
| CF8 | 3" | 50-450 | 21.0-50.0 | 1.0-12.0 | 1.5 |
| CF6 | 2" | 50-450 | 12.0-25.0 | 1.0-10.0 | 1.0 |
| CF5 | 1 1/2" | 20-300 | 8.0-13.0 | 1.0-8.0 | 0.6 |
| CF4 | 1" | 40-200 | 6.0-10.0 | 1.0-6.0 | 0.3 |
| CF3 | 3/4" | 40-200 | 2.0-4.0 | 1.0-4.0 | 0.2 |
| CF2 | 1/2" | 40-200 | 3.0 | 1.0-1.8 | 0.2 |
6. Jade gas directly spray water jet nozzles
| Model | Material | Joint size(G) | Pressure(Kpa) | Dicharge(M3/h) | Height(m) | Diameter(m) | Size WxH(mm) |
| CB20 | Copper Planting, Copper, Stainless steel | 3/4" | 50-150 | 3.0-5.0 | 0.5-4.0 | 0.3-0.5 | 25x145 |
CB25 | 1" | 50-200 | 6.0-12.0 | 1.5-5.5 | 0.5-0.8 | 30x156 | |
CB40 | 1 1/2" | 50-200 | 10.0-15.0 | 2.0-7.0 | 0.6-1.0 | 35x180 | |
CB50 | 2" | 50-250 | 15.0-20.0 | 2.0-12.0 | 1.6-2.1 | 40x202 |
More beautiful effect of our water jet nozzles

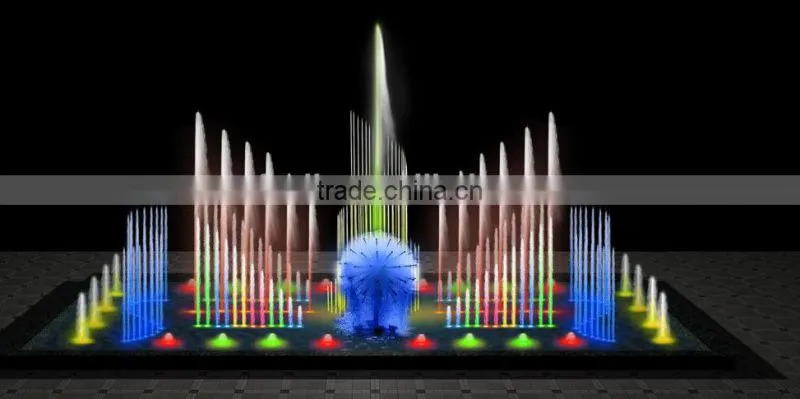

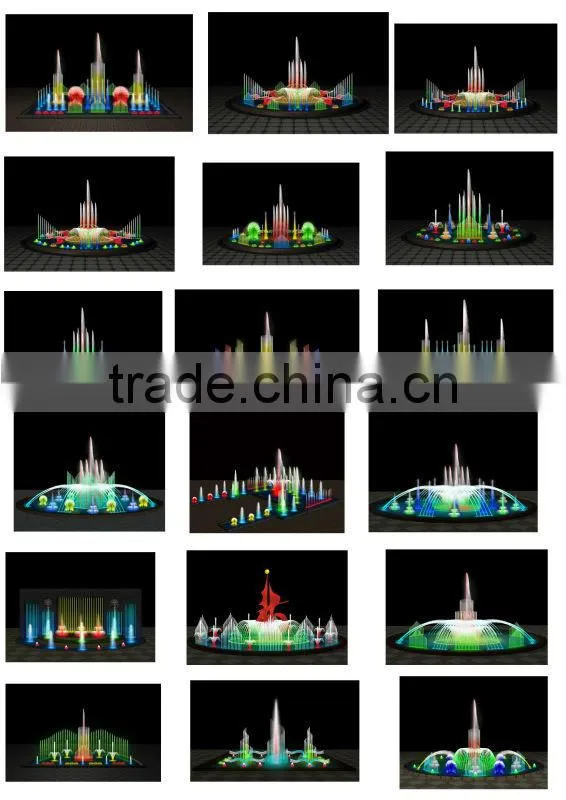

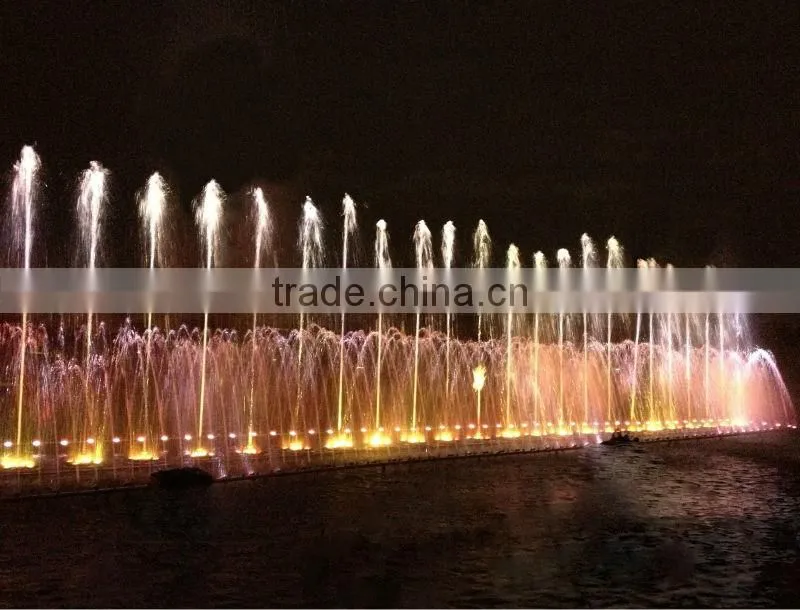

The beautiful effect of our music dancing water fountains
We have our own factory to produce and design fountains, welcome for your inquiry and cooperation!!
If there any products attract you, pls feel free to contact us!!
