Latest High-ranking Graphite Block With All Sizes
- Shanghai Yiwu or Ningbo or Qingdao
- T/T Credit Card PayPal
You May Like
-
Fine Quality Low-cost Mould Press Graphite Block
-
Quality First Economic Fine Grain Carbon Block
-
Top Level High Precision Vibration Graphite Block High Pure
-
Best-selling Oem Odm Graphite Blocks for Furnace Bottom
-
High Grade Reasonable Price Graphite Block With Customizable Sizes
-
Wholesale High Pressure Industrial Grade Graphite Block
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SG | |
| Model Number | Graphite Carbon Block | Application | Mechanical Industry | |
| Dimensions | Customers' Requirement | Chemical Composition | Carbon |
Product Description
Latest high-ranking graphite block with all sizes
| Product Description |
Specifications of graphite block with all sizes:
It is applied in structure and electric conduction material. The physical and chemical properties of graphite block is the same as graphite electrode. Such as superior compact structure, good electrical and thermal conductivity, high resistance to oxidation and corrosion in high temperature.
The specification of Graphite Block is according to customer's requirements.
Advantage:
1. High temperature resistance.
2. Good thermal and electric conductivity.
3. Easily to be machined according to customers' designs.
4. Low ash content of 0.3% max.
Application:
1. Molds: hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, fused refractory molds, etc.
2. Furnace parts: resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.
3. Anodes for the electrolysis of metals.
4. Cathodes in aluminum electrolysis cells.
5. Parts for heat exchangers.
6. Crucibles for melting and reduction.
7. Boats and trays for sintering.
8. Magnesium electrolysis and Nickel electrolysis
Size and technical datas:
| φ38*80 | φ92*150 | φ135*250 | φ320*210 | 200*200*63 | 150*290*380 | 150*210*660 |
| φ45*100 | φ100*100 | φ150*200 | φ260*300 | 200*200*70 | 150*280*270 | 140*210*660 |
| φ52*100 | φ100*150 | φ160*250 | φ210*250 | 200*200*90 | 150*256*318 | 185*280*380 |
| φ65*100 | φ110*100 | φ180*250 | φ220*250 | 120*200*300 | 123*125*410 | 180*300*490 |
| φ75*100 | φ120*100 | φ205*250 | φ340*250 | 120*260*320 | 130*256*440 | 200*305*510 |
| φ82*100 | φ135*100 | φ300*250 | φ400*300 | 150*310*310 | 140*310*410 | 200*300*500 |
| φ90*100 | φ145*150 | φ350*250 | φ400*400 | 150*250*318 | 150*310*410 | 200*410*510 |
| φ92*100 | φ110*250 | φ400*220 | φ460*400 | 150*260*330 | 160*310*410 | 150*300*490 |
| φ95*150 | φ120*250 | φ480*300 | φ630*300 | 150*205*450 | 180*310*410 | 230*310*850 |
| Grade | SG-4 | SG-5 | SG-6 | SG-7 |
| Density | 1.75g/cm³ | 1.80g/cm³ | 1.82g/cm³ | 1.85g/cm³ |
| Resistance | 10μΩm | 9μΩm | 8μΩm | 13μΩm |
| Compressive strength | 45Mpa | 60Mpa | 70Mpa | 115Mpa |
| Flexural strength | 25Mpa | 30Mpa | 35Mpa | 51Mpa |
| Ash | 0.1% | 0.1% | 0.1% | 0.05% |
| Porosity | 18% | 15% | 12% | 11% |
| Product Picture |

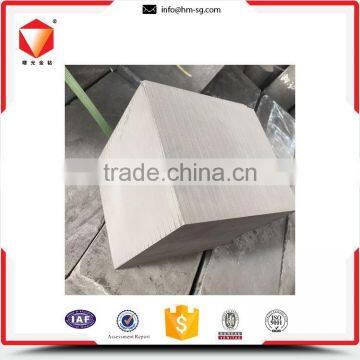

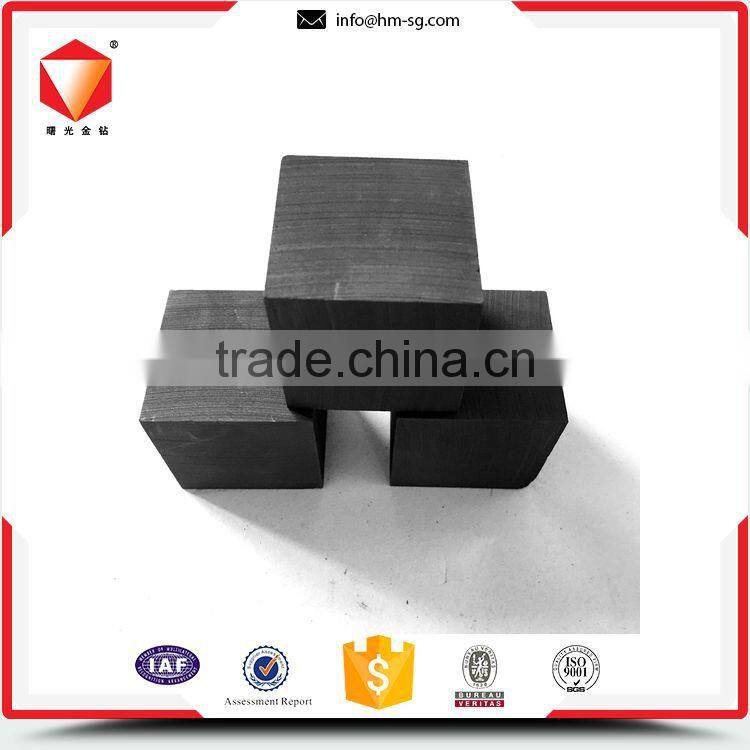

Pictures of graphite block with all sizes:
| Product Categories |
| 1. Automobile Carbon Brush | 2. Brush Holder | 3. Carbon Seal |
| 4. Carbon Vane | 5. Graphite Bearing | 6. Graphite Carbon Block |
| 7. Graphite Crucible | 8. Graphite Mould | 9. Graphite Plate Sheet |
| 10. Graphite Rod Tube | 11. Graphite Wheel | 12. Household Carbon Brush |
| 13. Industrial Carbon Brush | 14. Motor Carbon Brush | 15. Power Tools Carbon Brush |
| Company Profile |
is a leading manufactuer of graphite carbon products.many products like carbon brush for power tools, generator,starters,Auto, carbon blade, graphite plate, carbon vanes for vacuum pumps, carbon bearing,carbon seal, carbon sheet, carbon rod, graphite raw material, graphite crucible, graphite bearing and so on. the quality very good and often export to the world like UK, USA, Malaysia, Iran, India,Canada,,,,,, that's to say any graphite carbon products would produce as customer's requested as of we have professional workers and advanced equipments.
| Our Certificates |
| Customer Photo |
Favorable Comment
Best quality, best service, best products.
supply material and packing as customer's requested.
best service and kind Family.
the company could make products as customer's requested, very very good...
| Payment & Shipping |
PAYMENT
Standard payment terms: pay 30% deposit in advance,70% balance before shipment. Online trade assurance, upon customer request.
More payment terms could be provided (T/T LC/DA/DP PAYPAL WESTERN UNION)
| |
| | |
SHIPPING
Please don' t forget to leave your full address information ensure the delivery can be arranged successfully. Thank you.
Delivery time: 20 working days after payment receipt confirmed (based on order quantity)
Packing: standard export packing, or customized packing as your request. Professional goods shipping forwarder.
| |
| FAQ |
| Q: How to contact with us ? |
A: You can add Whatsapp by phone, clink”chat now”
|
| Q: When can i get the price? |
| A1: We usually quote within 24 hours after getting your products detailed information,like size,quantity, application etc. |
A2: If it’s an urgent order, you can call us directly.
|
| Q: How can i get free samples? And how long ? |
| A1: Yes! We can supply small products sample free like carbon brush, but others should depend on products details. |
A2: Usually supply sample within 2-3 days, but complicated products will depend on both negotiation.
|
| Q: What about the time of delivery for big order ? |
A: The lead time is based on the quantity,about 7-12days. But for carbon brush of power tools, because of more models, so need time to negotiate between each other.
|
| Q: What is your trade terms and payment method? |
| A1: Trade term accept FOB, CFR, CIF, EXW, etc. Also can choose others as your convenience. |
A2: Payment method usually by T/T, L/C,Western union,Paypal etc.
|
| Q: What’s kind of product packaging? |
A: Carton box, wooden box, or others as customer’s design.
|
| Q: Notice |
A: The price we quoted on alibaba is a rough price.The actual price will depends on products detailed requirements. Any other question or help needed, pls contact us directly. Thanks so much!
|
| Contact Us |
| Full Name: | Mr. Joan zhang |
| whatsapp/Webchat: | +86-138 0146 1606 |
| Tel: | +86-513 8286 1838 |
| Skype: | joanhuan |
| E-mail: | info@ |
| Company Name: | Haimen Shuguang Carbon Industry Co., Ltd. |
| Address: | No. 1, Tongguang Avenue, Baochang Town, Haimen, Jiangsu, China |
