Fine Quality Low-cost Mould Press Graphite Block
- Shanghai Yiwu or Ningbo or Qingdao
- T/T Credit Card PayPal
You May Like
-
Quality First Economic Fine Grain Carbon Block
-
Top Level High Precision Vibration Graphite Block High Pure
-
Best-selling Oem Odm Graphite Blocks for Furnace Bottom
-
High Grade Reasonable Price Graphite Block With Customizable Sizes
-
Wholesale High Pressure Industrial Grade Graphite Block
-
High-tech Custom Haimen Carbon Graphite Block
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SG | |
| Model Number | Graphite Carbon Block | Application | Mechanical Industry | |
| Dimensions | Customers' Requirement | Chemical Composition | Carbon |
Product Description
Fine quality low-cost mould press graphite block
| Product Description |
Specifications of mould press graphite block:
It is applied in structure and electric conduction material. The physical and chemical properties of graphite block is the same as graphite electrode. Such as superior compact structure, good electrical and thermal conductivity, high resistance to oxidation and corrosion in high temperature.
The specification of Graphite Block is according to customer's requirements.
Advantage:
1. High temperature resistance.
2. Good thermal and electric conductivity.
3. Easily to be machined according to customers' designs.
4. Low ash content of 0.3% max.
Application:
1. Molds: hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, fused refractory molds, etc.
2. Furnace parts: resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.
3. Anodes for the electrolysis of metals.
4. Cathodes in aluminum electrolysis cells.
5. Parts for heat exchangers.
6. Crucibles for melting and reduction.
7. Boats and trays for sintering.
8. Magnesium electrolysis and Nickel electrolysis
Size and technical datas:
| φ38*80 | φ92*150 | φ135*250 | φ320*210 | 200*200*63 | 150*290*380 | 150*210*660 |
| φ45*100 | φ100*100 | φ150*200 | φ260*300 | 200*200*70 | 150*280*270 | 140*210*660 |
| φ52*100 | φ100*150 | φ160*250 | φ210*250 | 200*200*90 | 150*256*318 | 185*280*380 |
| φ65*100 | φ110*100 | φ180*250 | φ220*250 | 120*200*300 | 123*125*410 | 180*300*490 |
| φ75*100 | φ120*100 | φ205*250 | φ340*250 | 120*260*320 | 130*256*440 | 200*305*510 |
| φ82*100 | φ135*100 | φ300*250 | φ400*300 | 150*310*310 | 140*310*410 | 200*300*500 |
| φ90*100 | φ145*150 | φ350*250 | φ400*400 | 150*250*318 | 150*310*410 | 200*410*510 |
| φ92*100 | φ110*250 | φ400*220 | φ460*400 | 150*260*330 | 160*310*410 | 150*300*490 |
| φ95*150 | φ120*250 | φ480*300 | φ630*300 | 150*205*450 | 180*310*410 | 230*310*850 |
| Grade | SG-4 | SG-5 | SG-6 | SG-7 |
| Density | 1.75g/cm³ | 1.80g/cm³ | 1.82g/cm³ | 1.85g/cm³ |
| Resistance | 10μΩm | 9μΩm | 8μΩm | 13μΩm |
| Compressive strength | 45Mpa | 60Mpa | 70Mpa | 115Mpa |
| Flexural strength | 25Mpa | 30Mpa | 35Mpa | 51Mpa |
| Ash | 0.1% | 0.1% | 0.1% | 0.05% |
| Porosity | 18% | 15% | 12% | 11% |
| Product Picture |

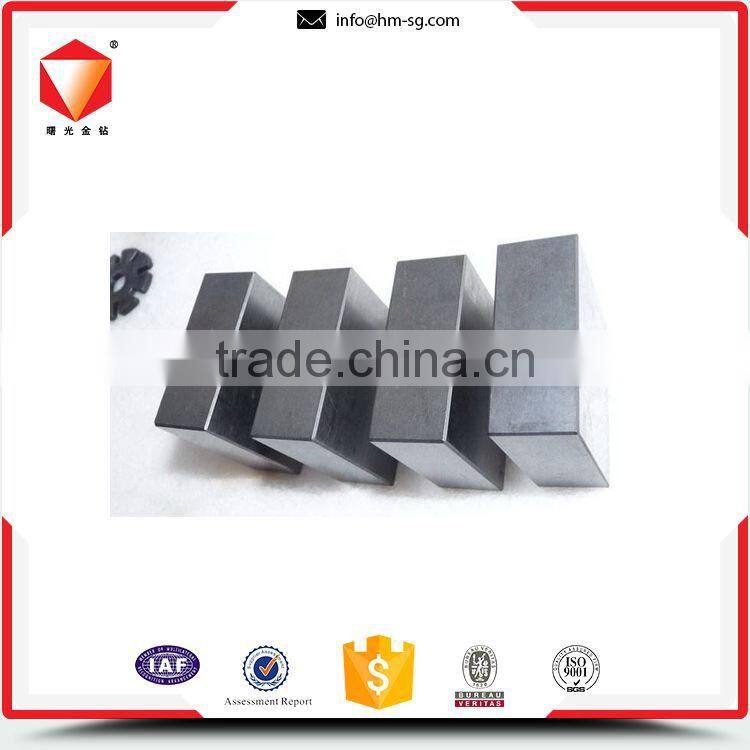

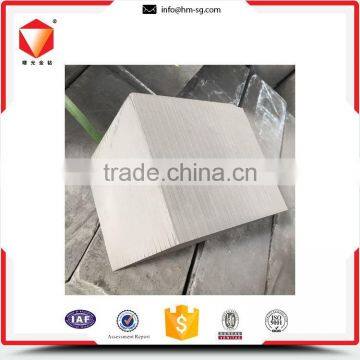

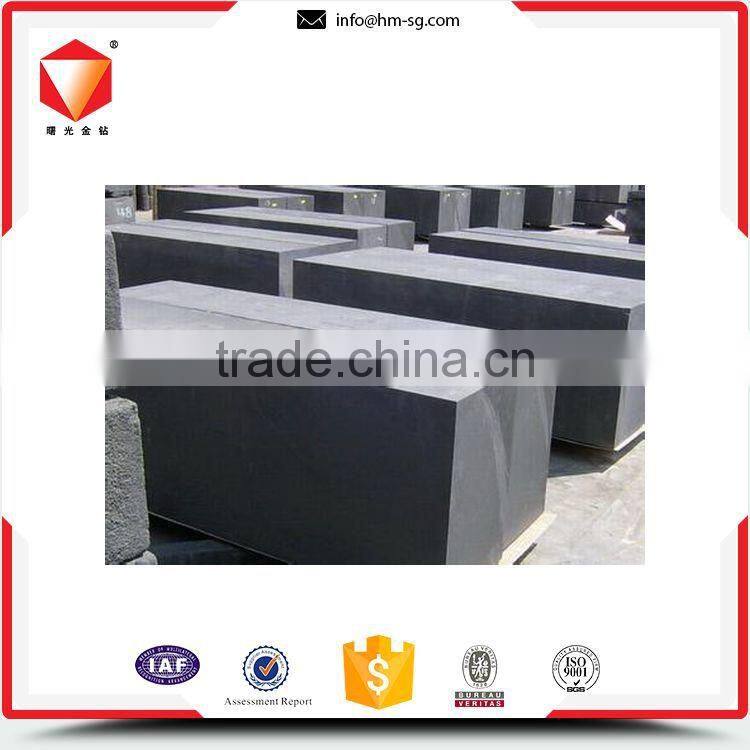

Pictures of mould press graphite block:
