Product Details
| Standard or Nonstandard | Nonstandard | Style | Mechanical Seal | |
| Material | Other, 99.9%c | Place of Origin | Jiangsu, China | |
| Brand Name | SG | Model Number | Carbon Seal |
Product Description
Low price low-cost ptfe oriented new mechanical seals
| Product Description |
Specifications of ptfe oriented new mechanical seals:
1)The graphite seal rings are available and tailor-made as customers' request.
2)The graphite seal rings with wear resistance,resistance to high temperature,pressure resistance,corrosion resistance,creep resistance,self-lubricating without oil,little expansion coefficient,and excellent sealing.
| Grade | Density | Compressive strength | Flexural sttrength | Hardness | Open Porosity | Use Temperature | C.E.O |
| SG-120 | 1.60g/cm³ | 81Mpa | 25 Mpa | 60 | 18% | 350℃ | 4 |
| SG-154 | 1.50g/cm³ | 45Mpa | 20 Mpa | 40 | 28% | 350℃ | 4 |
| SG-106H | 1.65g/cm³ | 180-190 Mpa | 51-60 Mpa | 65-90 | 1.0% | 200℃ | 4.8 |
| SG-120H | 1.72g/cm³ | 176-182 Mpa | 49-55 Mpa | 65-90 | 1.0% | 200℃ | 4.8 |
| SG-254H | 1.82g/cm³ | 74-100 Mpa | 35-45 Mpa | 42-55 | 1.0% | 200℃ | 4.5 |
| SG-106K | 1.70g/cm³ | 182-200 Mpa | 55-65 Mpa | 75-95 | 2.0% | 200℃ | |
| SG-120K | 1.75g/cm³ | 179-185 Mpa | 50-60 Mpa | 70-95 | 2.0% | 200℃ | |
| SG-158K | 1.70g/cm³ | 179-181 Mpa | 54-60 Mpa | 75-85 | 1.2% | 200℃ | |
| SG-106D | 2.2-2.5g/cm³ | 170-190 Mpa | 55-65 Mpa | 75-80 | 3.0% | 500℃ | 4.5 |
| SG-120D | 2.2-2.5g/cm³ | 140-160 Mpa | 50-60 Mpa | 70-80 | 3.0% | 500℃ | 5.0 |
| SG-254D | 2.2-2.5g/cm³ | 60 Mpa | 35 Mpa | 35 | 3.0% | 500℃ | 4.5 |
| Product Picture |

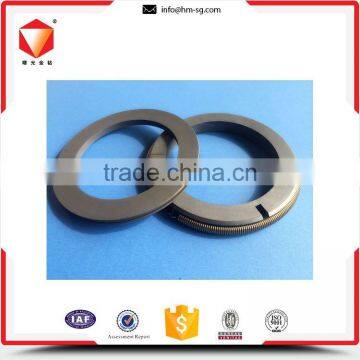

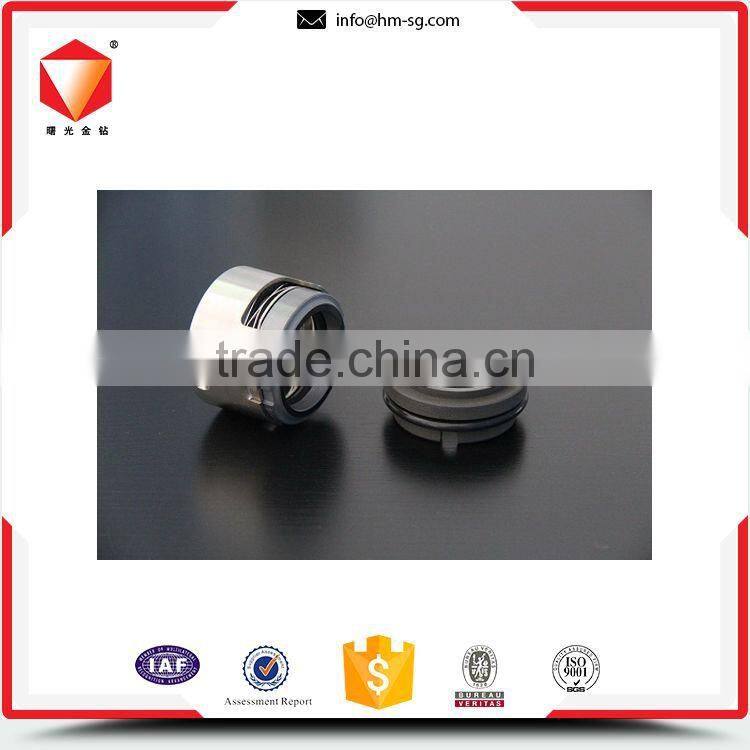

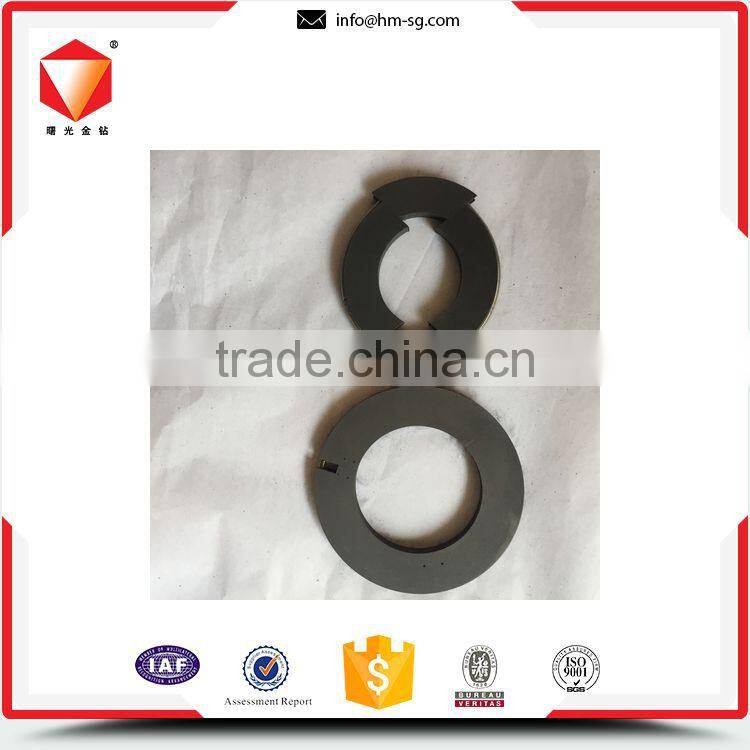

Pictures of ptfe oriented new mechanical seals:
