Product Details
| Condition | New | Type | Sander | |
| Place of Origin | Shandong, China | Brand Name | LEADER | |
| Model Number | MM5613 Sander Machine | Voltage | 380V | |
| Dimension(L*W*H) | 2320*3500*2985mm | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

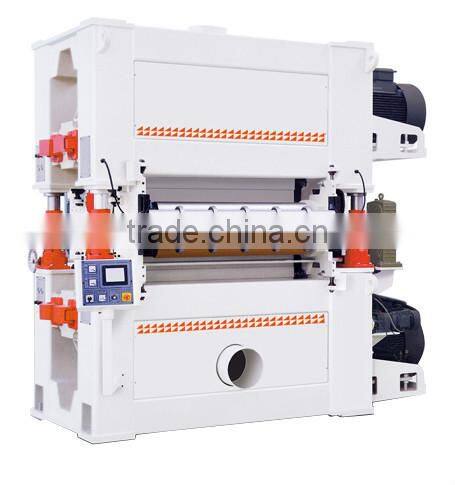

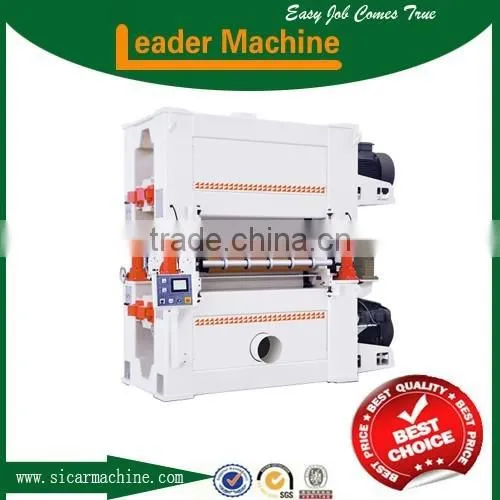

Double side two heads calibrating sander from China
Model: MM5613
Specification:
1.The speed reducer adopts the dual driver mode,feeding is stable and reliable with high efficiency.
2.Transmission parts by transmission links,high stability.
3.The body is welded by steel plate,solid structure,since the major,won’t produce vibration.
4.Accessories imported original:Schneider Electric,NSK bearings,Taiwan speed reducer.
Model | MM5613 | MM5623 |
Working thickness | 3-90mm | 3-90mm |
Working length | >600mm | >800mm |
Working width | 200-1300mm | 200-1300mm |
NO.1 Abrasive belt speed | 25m/min | 25m/min |
NO.2 Abrasive belt speed | 22m/min | 22m/min |
Size of abrasive belt (W*P) | 1330*2870mm | 1330*2870mm |
Feed speed | 6-30m/min | 6-30m/min |
Main motor | 150kw | 260kw |
Overall dimension(L*W*H) | 2320*3500*2985mm | 3500*4300*3120mm |
Motors: |
|
|
Feed motor | 15kw | 15kw |
Lift motor | 1.5kw | 1.5kw |
Brush motor | 1.1kw*2 | 1.1kw*2 |
Compressed air: |
|
|
Working air pressure | 0.6Mpa | 0.6Mpa |
Consumption | 0.3m³/min | 0.3m³/min |
Suction air consumption: |
|
|
Volume | 32000m³/h | 32000m³/h |
Pressure | 1300pa | 1300pa |
Net weight | 19T | 26T |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
