Home > Products > Woodworking Sanding Machine > BSG33 China heavy duty wide belt roller sander

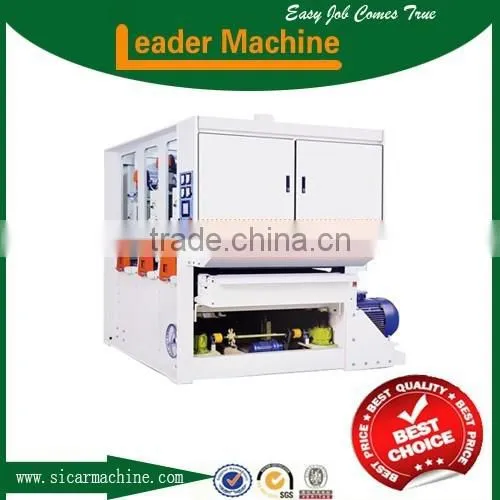

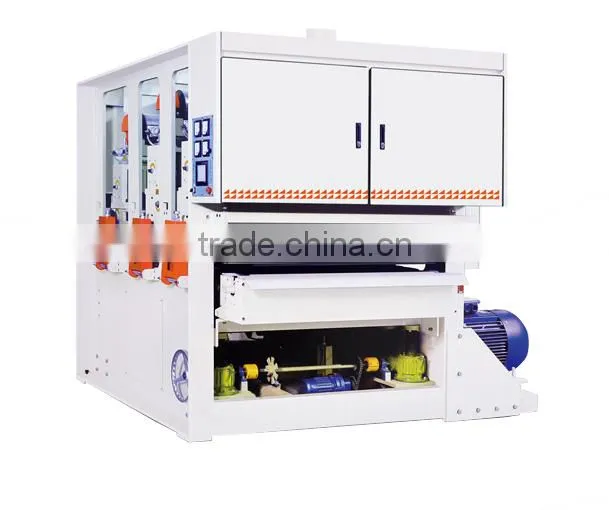

BSG33 China heavy duty wide belt roller sander
- 200 Unit / Units per Month
- QINGDAO
- T/T
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | LEADER |
Model Number: | BSG13/BSG23/BSG33 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China heavy duty wide belt roller sander
Model: BSG33
Specification:
1.The machine frames adopts welding integral structure to improve the machine’s rigidity and service life of the machine.
2.The roller’s diameter is much bigger and all the rollers have been run-balanced precisely,which makes running smoothly and improves the sanding power.
3.Frequency controlled feeding improves the productive efficiency.
4.The feeding rollers are supported by floating spring,you can adjust the back pressure until satisfied with the sanding result.
5.Advance triggering computer terminal makes operation easy and clear.
Model | BSG13 | BSG23 | BSG33 |
Working width | 40-1300mm | 40-1300mm | 40-1300mm |
Working thickness | 3-100mm | 2.5-100mm | 2.5-100mm |
Working length | ≥750mm | ≥750mm | ≥750mm |
NO.1 abrasive belt speed | 20m/min | 20m/min | 20m/min |
NO.2 abrasive belt speed | / | 17m/min | 20m/min |
NO.3 abrasive belt speed | / | / | 17m/min |
Feeding speed | 10-70m/min | 13-100m/min | 13-100m/min |
Size of abrasive belt(W*P) | 1300*2615mm | 1300*2615mm | 1330*2615mm |
Total motor power | 64kw | 76kw | 106kw |
Main motor power | 55kw | 45kw/37kw | 45kw/37kw/30kw |
Working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
Consumption of compressed air | 0.1m³/min | 0.1m³/min | 0.1m³/min |
Volume of sucked air | 10000m³/h | 10000m³/h | 12000m³/h |
Speed of sucked air | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 2120*2980*2440mm | 2630*2780*2440mm | 3140*2770*2440mm |
Net weight | 6500kg | 9000kg | 11000kg |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
