AP1500 European Quality CE Certification PVC Film Roller Press Machine/Woodworking Machinery
- QINGDAO
- T/T Money Gram
You May Like
-
AP1500 European Quality CE Certification Panel Laminating Machine/Woodworking Machinery
-
AP9065 European Quality CE Certification Vacuum Press For Curved Panels/woodworking Machinery
-
AP9065 European Quality CE Certification Cabinet Vacuum PVC Machine Membrane Press for Curved Panel
-
AP9065 European Quality CE Certification Pressure Laminating PVC Machine/Vacumm Press Machine
-
MP25EB European Quality CE Certification Film Vacuum Membrane Machine/ Coating Machine
-
MP25EB European Quality CE Certification High Gloss and PVC Vacuum Membrane Press Machine for Woodworking
Product Details
| Condition | New | Type | Other | |
| Place of Origin | Shandong, China | Brand Name | LEADER | |
| Model Number | AP1500 | Power(W) | 3.5kw | |
| Dimension(L*W*H) | 4810*2060*1700mm | Weight | 735Kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

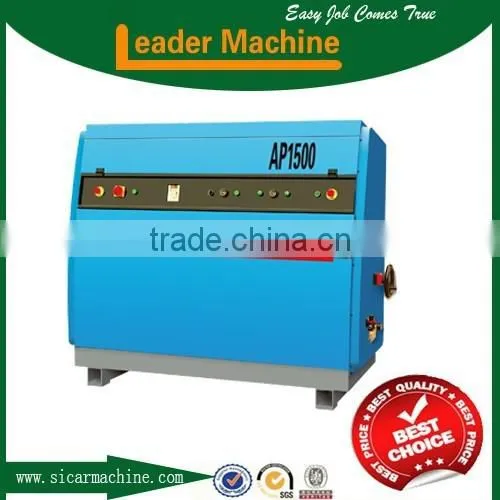

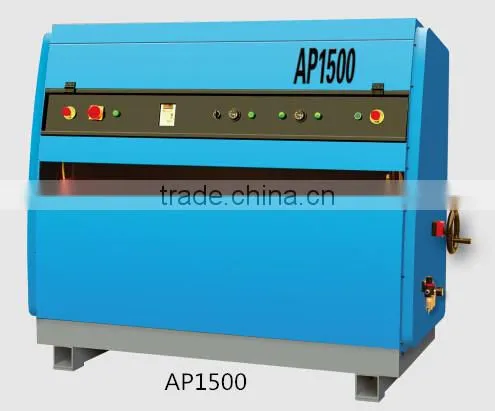

PVC Film Roller Press Machine/Woodworking Machinery
Model: AP1500
PVC Film Roller Press Machine/Woodworking Machinery
Specifications
1.simple and easy to operate
2.High efficiency
3.Steel body, stainless steel lamp
Item | AP1500 |
Max.board width | 1360mm |
Max.board thickness | 90mm |
Feeding speed | 2-6.5m/min |
Laminate thickness | 0.3-1.0mm |
Electric motor roller driving gear power
| 0.75kw |
Total power | 3.5kw |
Inner heating element 4pcs | 600w, Steel lamps |
Max.-Min.heating temperature of inner heating element | 0 to 160℃ |
Roller temperature | 50℃ |
Upper roller heating power | 1000w |
Max.-Min.upper heating roller | 0 to 50℃ |
Overall dimension | 4810*2060*1700mm |
Weight | 735Kg |
Air pressure | 6bar |
PS:We can produce this type machines according to any of customer's requirements.
This machine is used fo coating wooden bases material ,such as chipboards MDf Etc,Pneumatic pressing and rubber roller pressing to ensure the stable work.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
